Panasonic TH-50VX100U - Page 28

28
TH-50VX100U / TH-50VX100E

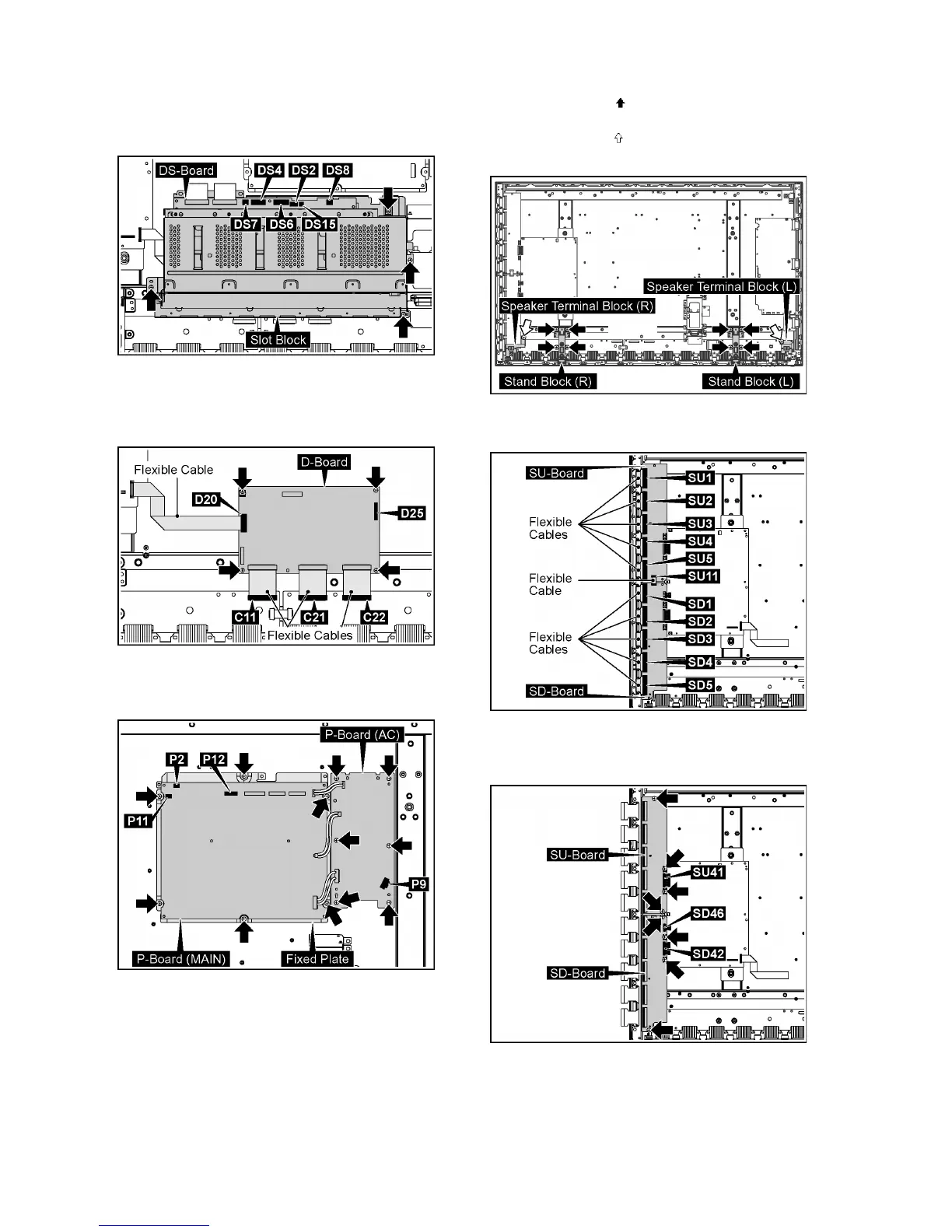

6. Disconnect the connectors (DS2, DS4, DS6, DS7, DS8,
DS15).
7. Remove 4 screws and then remove the Slot Block.
8. Disconnect the connector (D25).
9. Remove the flexible cables from the connectors (C11,
C21, C22, D20).
10. Remove 4 screws and then remove D-Board.
11. Disconnect the connectors (P2, P9, P11, P12).
12. Remove 12 screws and then remove P-Board (MAIN)
with Fixed Plate and P-Board (AC).
13. Remove 8 screws ( ) and then remove the Stand Block
(L), (R).
14. Remove 2 screws ( ) and then remove the Speaker Ter-
minal Block (L), (R).
15. Remove the flexible cables from the connectors (SU1,
SU2, SU3, SU4, SU5, SU11, SD1, SD2, SD3, SD4, SD5).
16. Disconnect the connectors (SU41, SD42, SD46).
17. Remove 8 screws and then remove SU-Board and SD-
Board.
