TH-50VX100U / TH-50VX100E

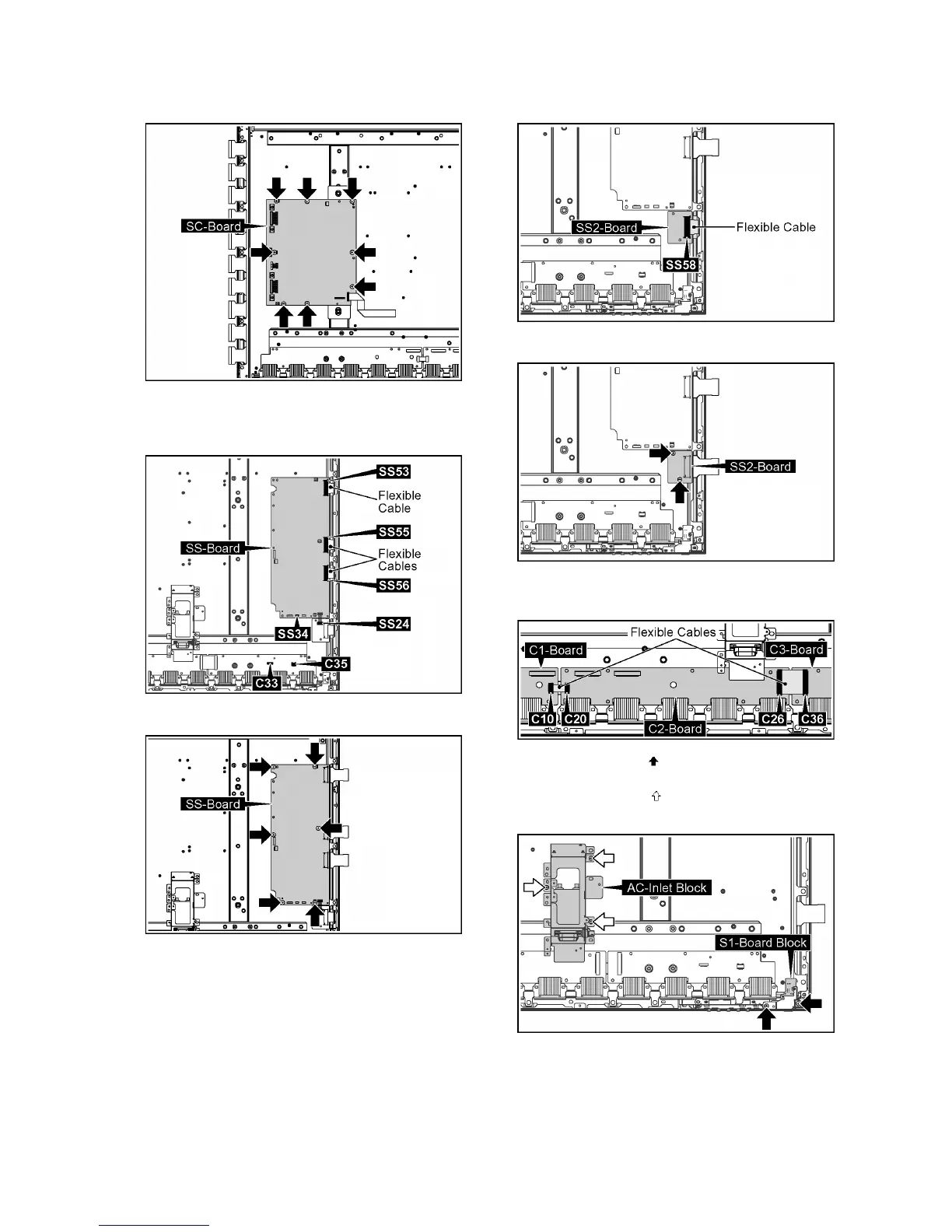

18. Remove 8 screws and then remove SC-Board.
19. Disconnect the connectors (C33, C35, SS24, SS34).
20. Remove the flexible cables from the connectors (SS53,
SS55, SS56).
21. Remove 6 screws and then remove SS-Board.
22. Remove the flexible cable from the connector (SS58).
23. Remove 2 screws and then remove SS2-Board.
24. Remove the flexible cables from the connectors (C10,
C20, C26, C36).
25. Remove 2 screws ( ) and then remove the S1-Board
Block.
26. Remove 3 screws ( ) and then remove the AC-Inlet
Block.
