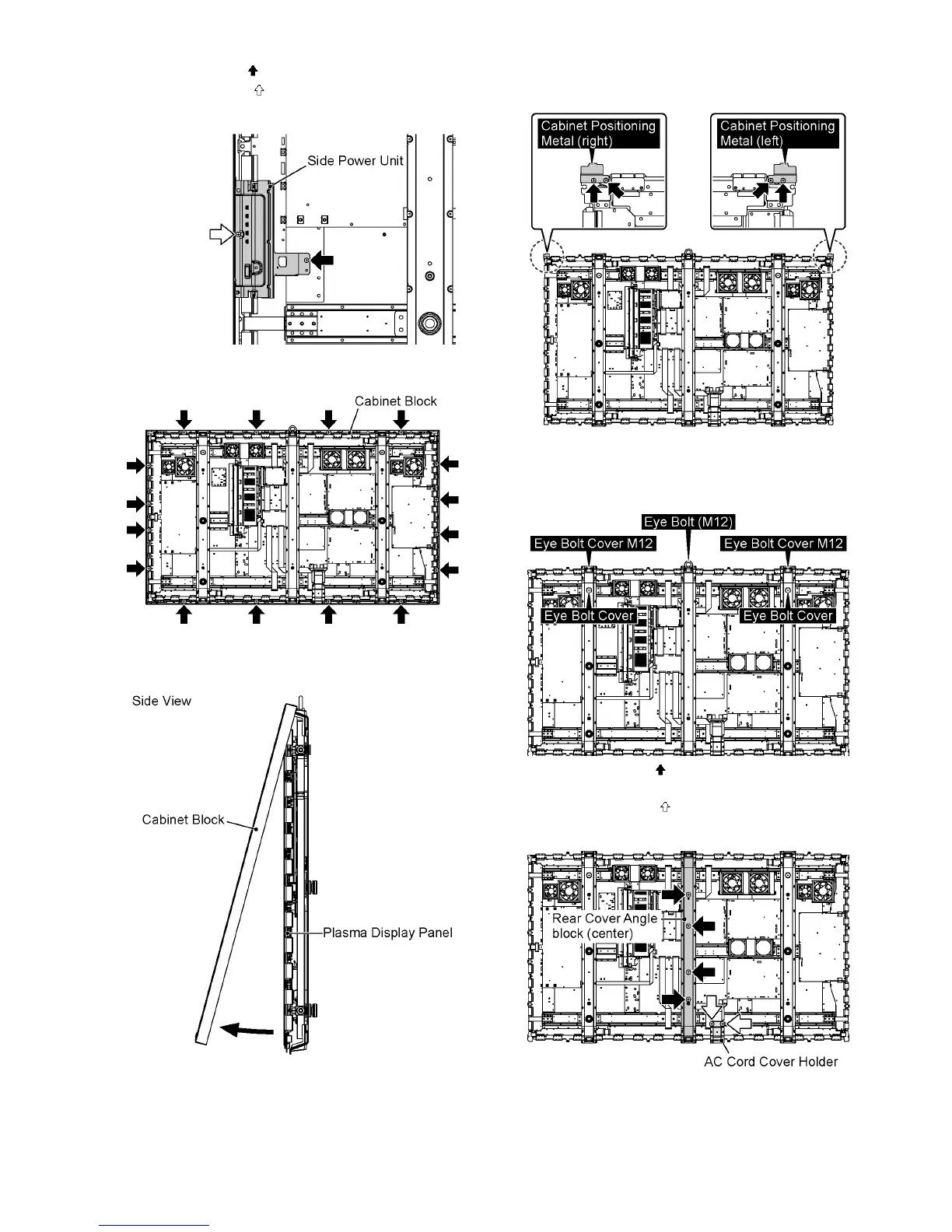

4. Remove 1 screw ( ).
5. Remove 1 screw ( ) and then remove the Side Power
Unit.
6. Remove 16 screws and then remove Cabinet Block.
7. Pull the bottom of the Cabinet Block forward and lift.
8. Remove the Cabinet Block.
9. Remove 4 screws and then remove the Cabinet Position-
ing Metals (left, right).
10. Remove 1 Eye Bolt (M12).
11. Remove 2 Eye Bolt Covers M12.
12. Remove 2 Eye Bolt Covers.
13. Remove 4 screws ( ) and then remove the Rear cover
Angle Block (center).
14. Remove 2 screws ( ) and then remove the AC Cord
Cover Holder.
