39
The

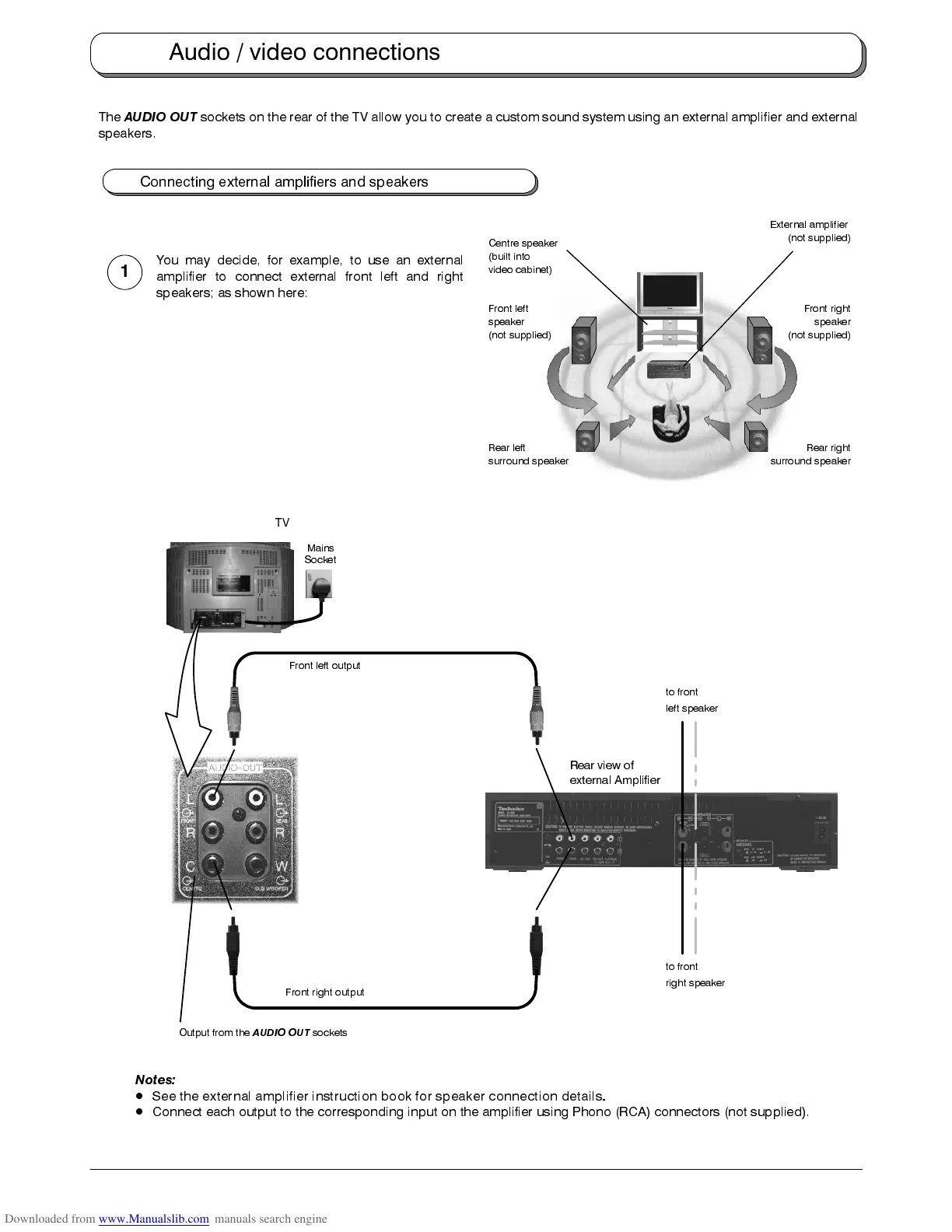

AUDIO OUT
sockets on the rear of the TV allow you to create a custom sound system using an external amplifier and external
speakers.
Connecting external amplifiers and speakers
You may decide, for example, to use an external
amplifier to connect external front left and right
speakers; as shown here:
Frontleftoutput
Front right output
Rear view of
external Amplifier
to front
left speaker
Output from the
AUDIO OUT
sockets
Mains
Socket
TV
to front
right speaker
Notes:
D
See the external amplifier instruction book for speaker connection details
.
D
Connect each output to the corresponding input on the amplifier using Phono (RCA) connectors (not supplied).
Audio / video connections
1
Rear right
surround speaker
Rear left
surround speaker
Centre speaker
(built into
video cabinet)
Front right
speaker
(not supplied)
Front left
speaker
(not supplied)
External amplifier
(not supplied)
