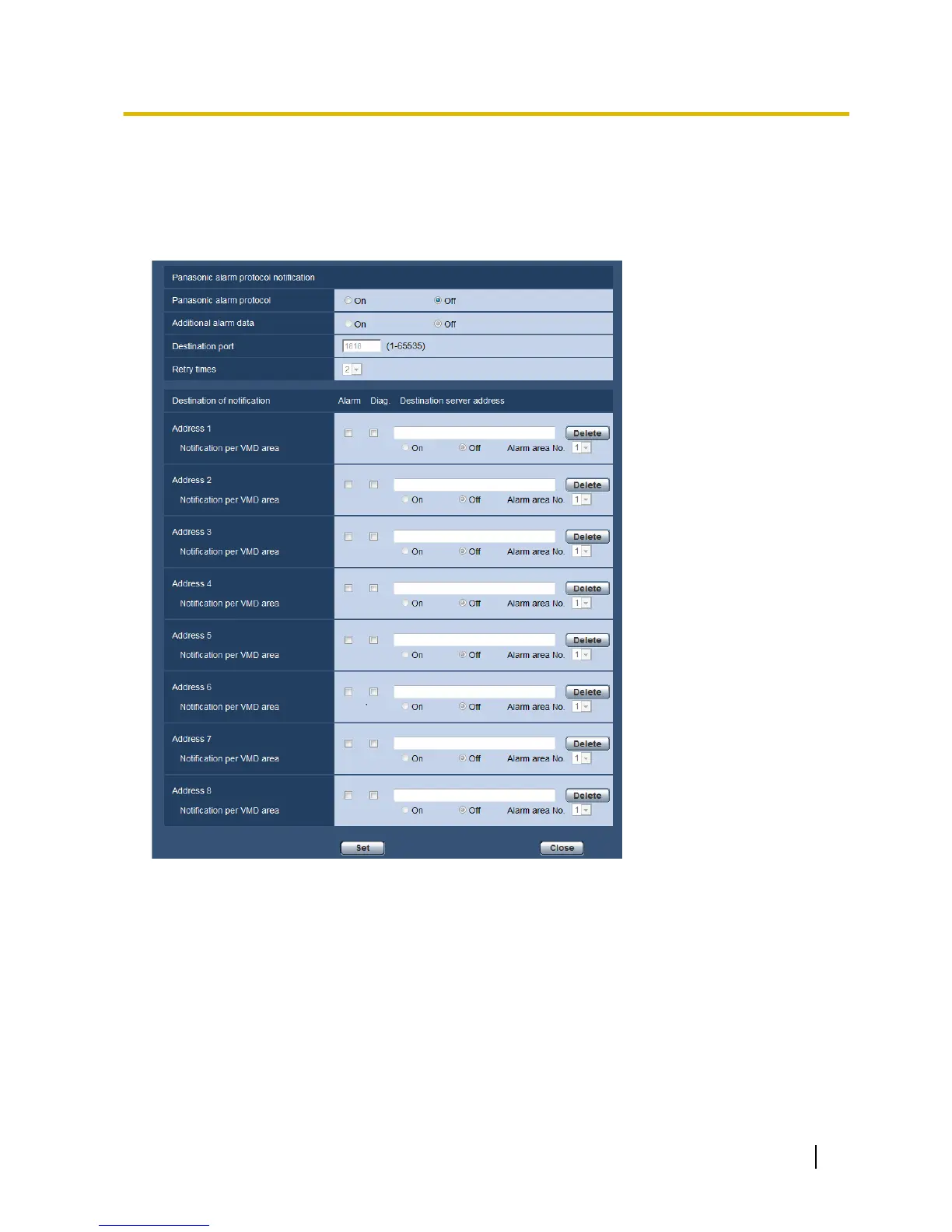

13.4.5 Configure settings relating to Panasonic alarm protocol

notification when an alarm occurs

Click “Panasonic alarm protocol notification >>” of “Camera action on alarm” on the [Alarm] tab of the

“Alarm” page. (®page 118)

Refer to page 131 for information on configuration for these settings.

Operating Instructions 123

13 Configure the alarm settings [Alarm]
