Using the side cable access hole
SW458M

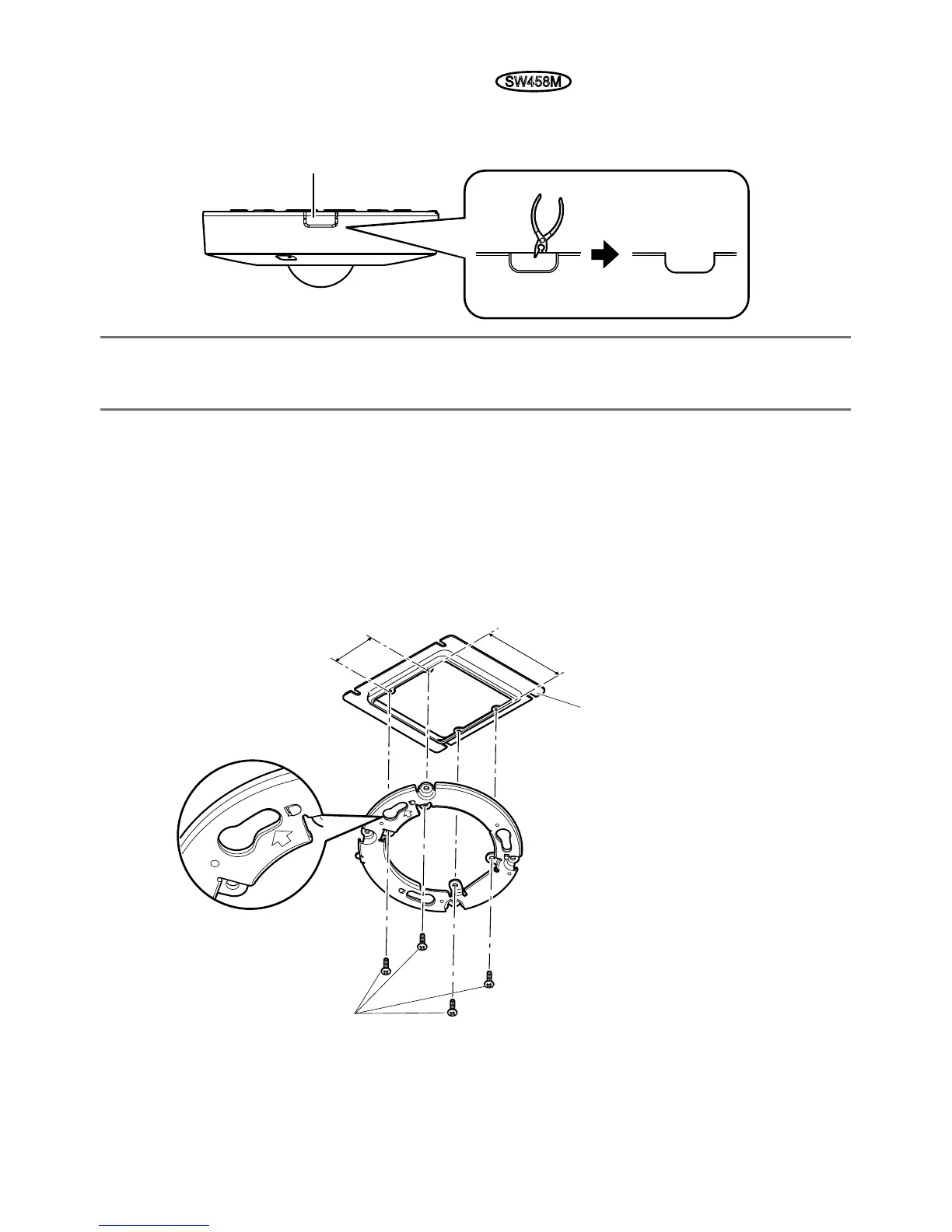

When installing the camera directly on the ceiling or wall with cables exposed, cut out a portion of
the enclosure to open a cable access hole.
Side cable access hole
IMPORTANT:
 • Topreventinjuryandprotectcables,smoothopenedcableaccessholesoftheenclosurewith
a file or other tool.
Method of camera installation
Using a two-gang junction box
Secure the camera attachment (accessory) to the two-gang junction box built in a ceiling or wall
using the fixing screws (locally procured).
TOP
TOP
46 mm {1-13/16 inches}
Two-gang junction box
Camera attachment (accessory)
Fixing screws
(4 pcs., locally procured)
83.5 mm {3-9/32 inches}
[Mounting hole pattern]
