Waterproof treatment for the cable joint sections
Adequate waterproof treatment is required for the cables when installing the camera with cables
exposed or installing it under the eaves. The camera body is waterproof, but the cable ends are not
waterproof.
Be sure to use the supplied waterproof tape at the points where the cables are connected to apply
waterproof treatment in the following procedure. Failure to observe this or use of a tape other than
the provided waterproof tape (such as a vinyl tape) may cause water leakage resulting in malfunc-
tion.
LAN cable
Alarm input/output cable, power cable, microphone/line input cable, audio output
cable
IMPORTANT:
 • Waterproof treatment is also tobe appliedto the2P powercable (accessory),the 4Palarm
cable (accessory) and other connection cables if they are subject to rain.
Note:

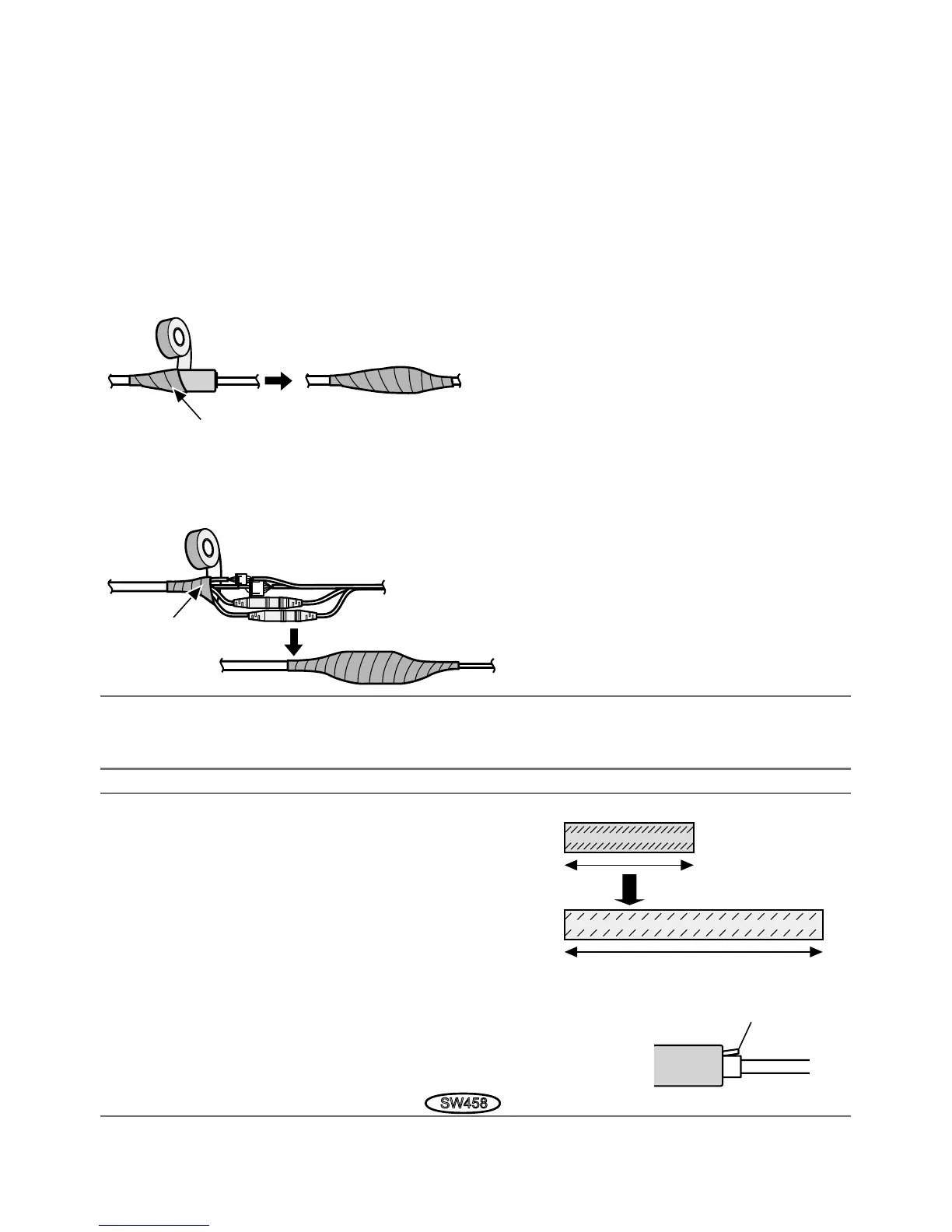

How to wind the supplied waterproof tape
 • Stretch the tapeby approx. twice (seethe illustration)
and windit aroundthe cable. Insufficient tape stretch
causes insufficient waterproofing.
 • Make sure to windthe tapeso that itdoes not press
downonthehookofthenetworkcable.
 • Toinstallthisproductoutdoors,besuretowaterproofthecables.
Waterproofgrade(IECIP66orequivalent)isappliedtothisproduct
onlywhen it isinstalledcorrectlyas described intheseoperating
instructions and appropriatewaterprooftreatmentis applied. The
mountbracketsarenotwaterproofed.
SW458
Wind the tape in a
half-overlapping manner.
Wind the tape in a
half-overlapping manner.
Wind the tape in a
half-overlapping manner.
Wind the tape in a
half-overlapping manner.
Stretch the tape to
about twice.
2x
hook
