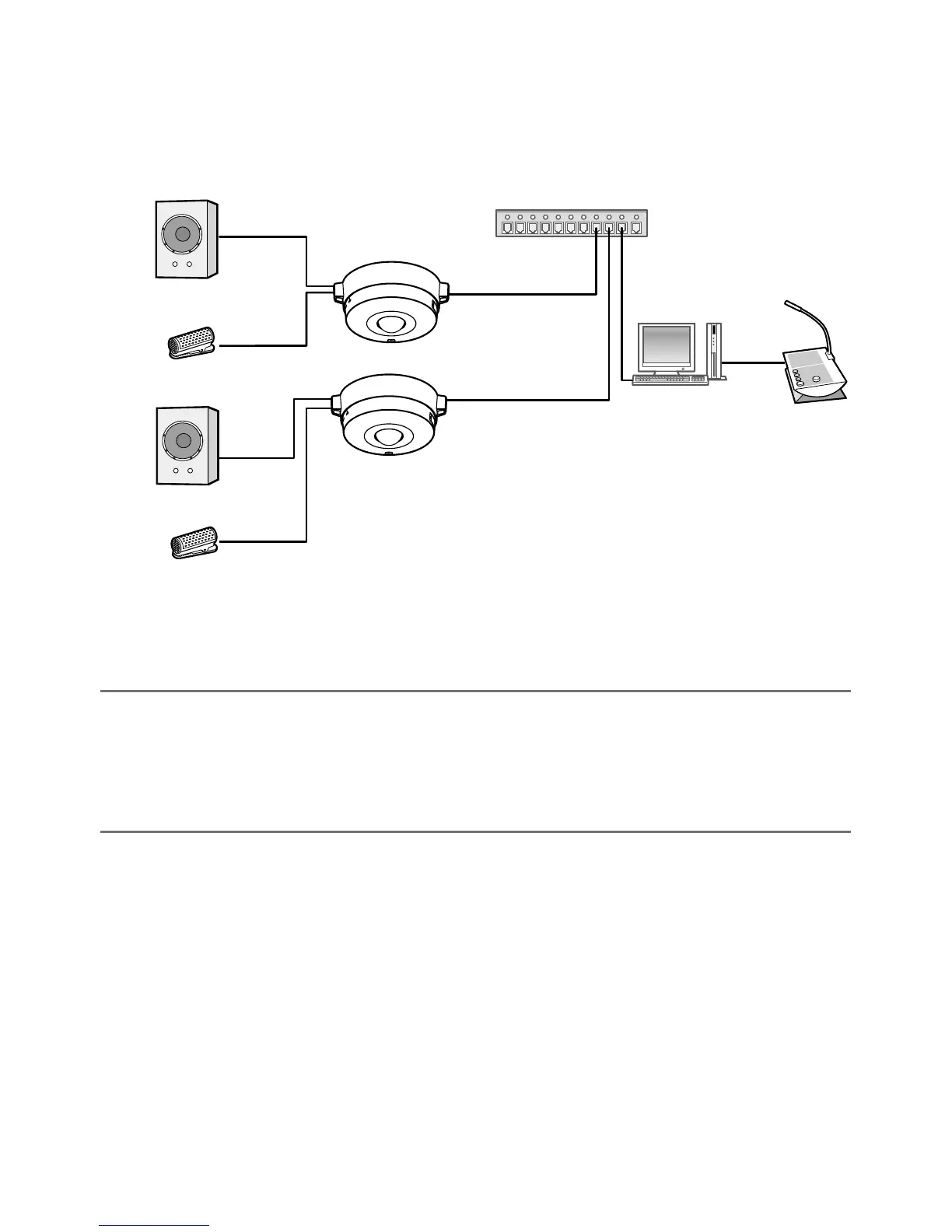

Connection example when connecting to a network using a
PoE hub
Powered speaker
(option)
Powered speaker
(option)
Microphone
(option)
Microphone
(option)
PoE device (hub)
LAN cable
(category 5 or better,
straight, STP*)
LAN cable
(category 5 or better, straight, STP*)
LAN cable
(category 5 or better,
straight, STP*)
PC
<Required cable>
LAN cable (category 5 or better, straight, STP*)
* E model only
IMPORTANT:
 • Useaswitchinghuborarouterwhichiscompliantwith10BASE-T/100BASE-TX.
 • WhenconnectingWV-SW458Mcameras,useaPoEhubwithM12connectors.
 • IfaPoEdevice(hub)isnotused,eachnetworkcameramustbeconnectedtoapowersupply.
 • ThecameraistobeconnectedonlytoPoEnetworkswithoutroutingtotheoutsideplantwhen
using PoE.
