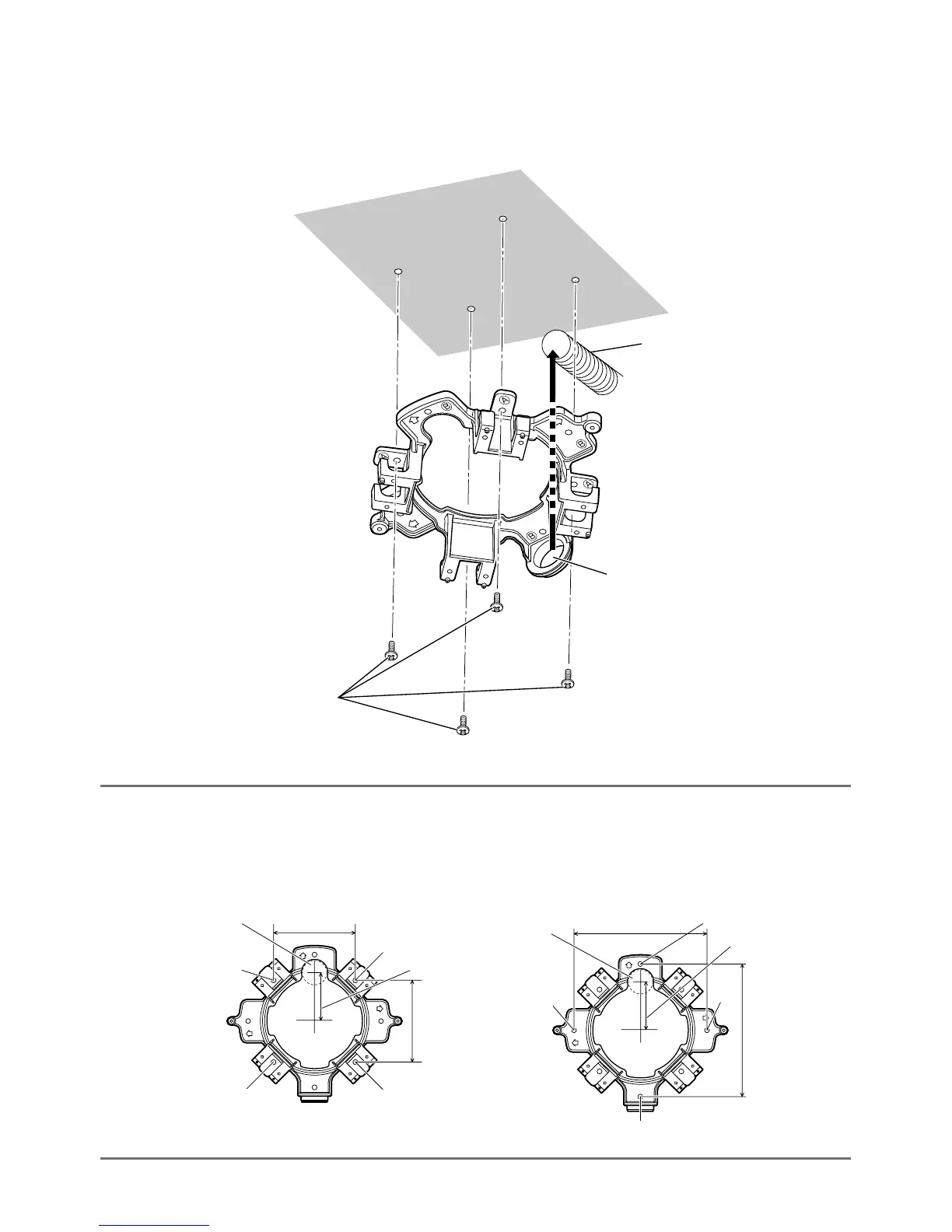

<Using a conduit>
Align the direction of the conduit to the direction of the female thread for the conduit on the mount
bracket, and mount the mount bracket to hole A or hole B on the ceiling or wall.
[For use of the hole A]
Note:
 • Onlythesametypeofholes,A or B, shall be used for mounting.
Conduit
Female thread for the conduit
Mount bracket
(accessory)
Fixing screws
(4 pcs., locally procured)
138 mm {5-7/16 inches}
85 mm {3-11/32 inches}
Ⓑ
Ⓑ
Ⓑ
Ⓐ
Ⓐ
Ⓑ
Ⓑ
Ⓑ
For use of the hole
85 mm 138 mm
{5-7/16 inches}
Ⓐ
Ⓐ
Ⓐ
For use of the hole
{3-11/32 inches}
Cable hole
(ø27 mm
{ø1-1/16 inches})
51 mm {2 inches}
51 mm {2 inches}
Cable hole
(ø27 mm
{ø1-1/16 inches})
