P&E Microcomputer Systems Cyclone LC Series - PORT E: 16-Pin Debug Connector (MON08)

User Manual For Cyclone LC Programmers 30
DDATA0 19 20 GND
N/C 21 22 N/C
GND 23 24 CLK
VCC 25 26 TEA
*The pin is reserved for internal use within the PEmicro interface.
The ColdFire adapter for Synchronous targets and ribbon cable for Asynchronous targets is
pictured below:

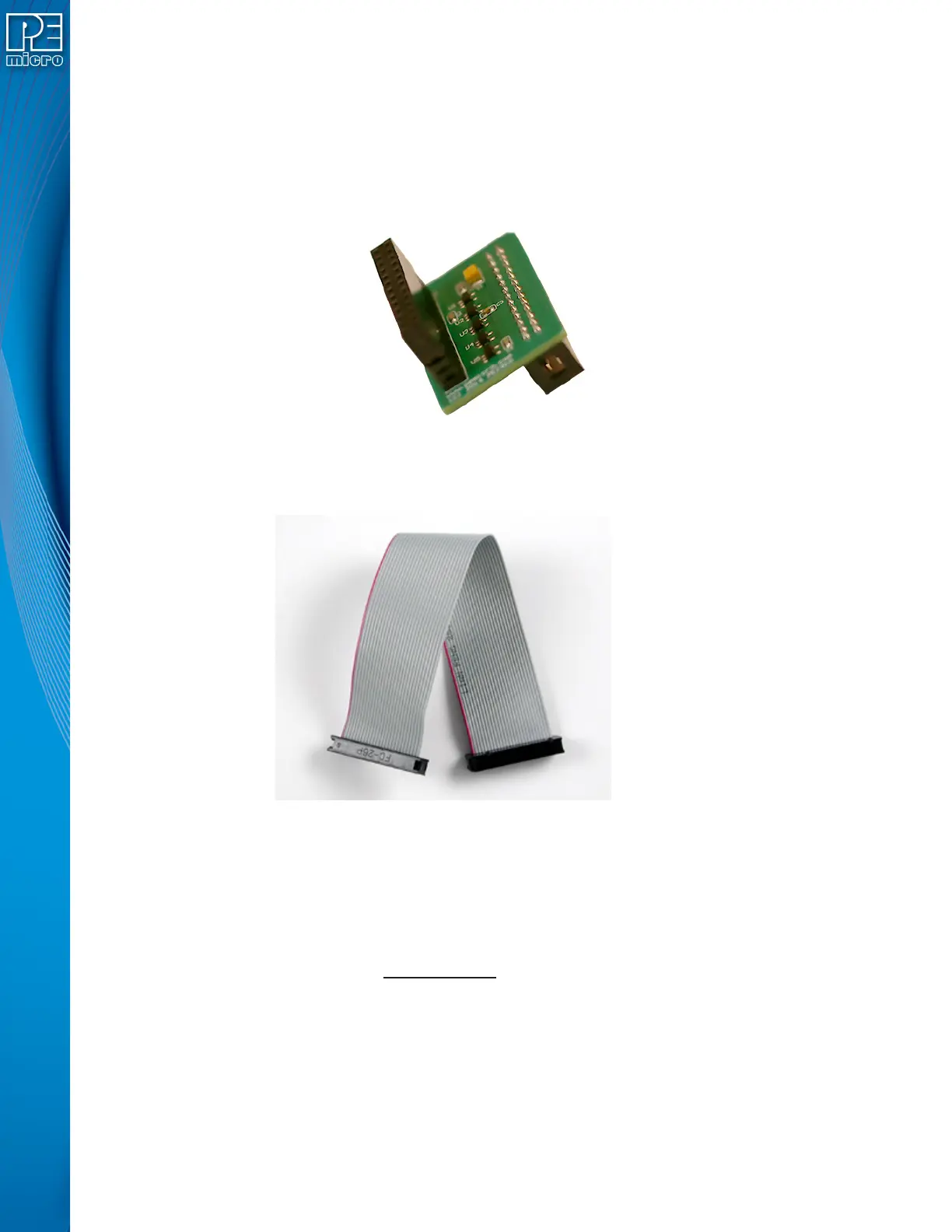

Figure 3-19: ColdFire Adapter (part# CABLE_CF_ADAPTER (Rev. B), for synchronous ColdFire
targets, sold separately)
Figure 3-20: ColdFire Ribbon Cable (for asynchronous ColdFire targets, included with Cyclone)
3.18.5 PORT E: 16-Pin Debug Connector (MON08)
The Cyclone provides a 16-pin 0.100-inch pitch double row connector for MON08 targets. The
location of the this header is indicated as PORT E in Figure 3-5. The MON08 header adopts the
standard pin-out from MON08 debugging with some modifications. The general pin-out is as
follows:
MON08 Signals
PIN 1 - NC* GND - PIN 2
PIN 3 - NC** RST - PIN 4
PIN 5 - NC* IRQ - PIN 6
PIN 7 - NC* MON4 - PIN 8
PIN 9 - NC* MON5 - PIN10
PIN11 - NC* MON6 - PIN12
PIN13 - OSC MON7 - PIN14
PIN15 - Vout MON8 - PIN16
