HS Consumer Treadmill
How To… Replace The Running Belt and Deck - Continued
Tools Required: Allen key set, Phillips screwdriver, tape measure, rubber hammer, and open end wrench set. (All
fasteners are metric. Make sure that you have metric tools.)
REMOVAL AND INSTALLATION –
Continued

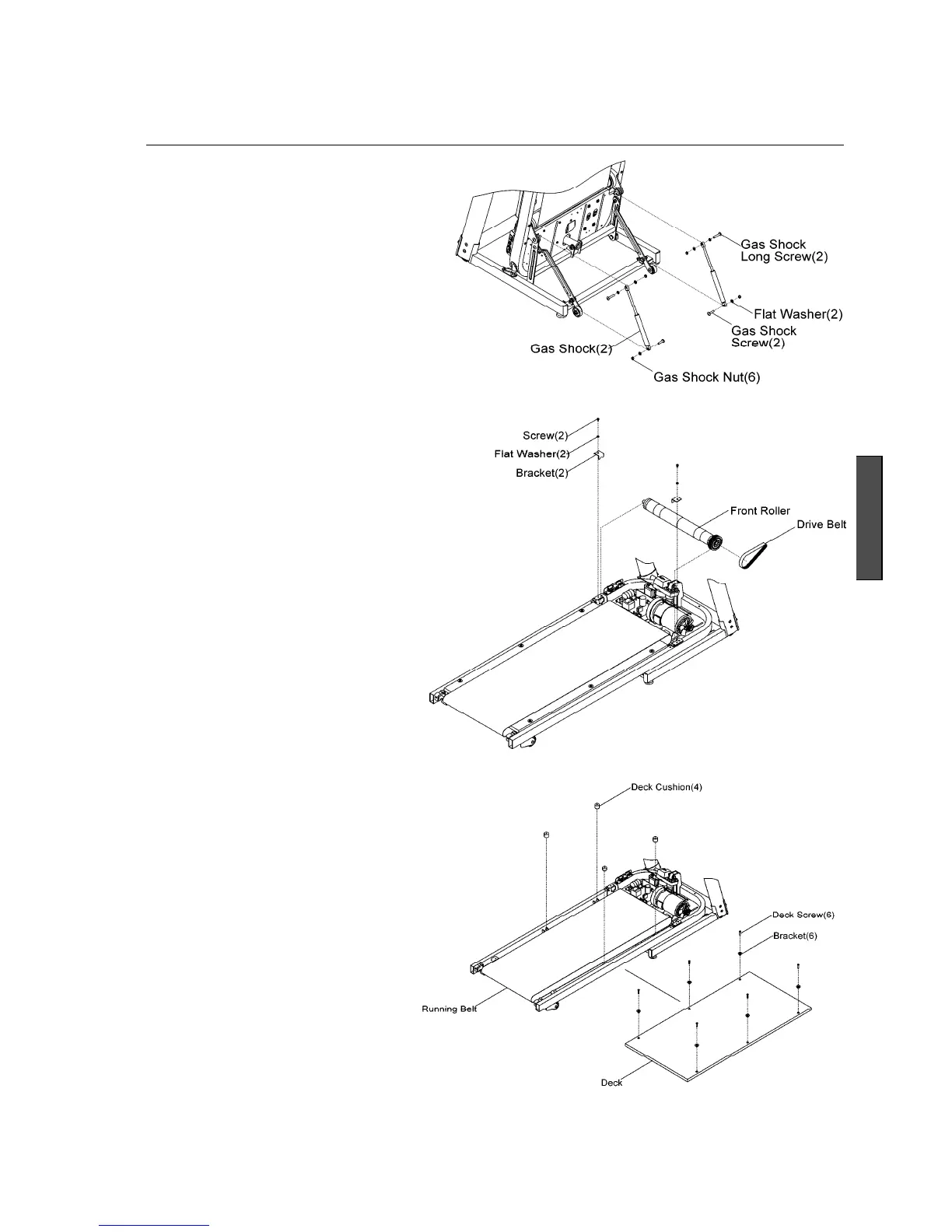

7 Unfold the treadmill. Remove the rear
roller tensioning screws(2), flat
washers(2). Slide each extrusion back.
8 Remove the rear roller.
9 Remove the flat washers(2),
brackets(2) and screw(2) from the front
roller mounting brackets and main
frame, then lift the front roller out from
the running belt. If necessary, remove
the motor drive belt.
10 Remove the deck screws(6) and
bracket(6) then lift out the deck.
11 Remove the running belt and discard.
12 Install new running belt and deck in
reverse order. Make sure to reinstall
deck guards on the new deck.
Retention the motor drive belt to 85~95
lbs. Do not over tighten belt.
NOTE: when adjusting motor belt
tension, the four mounting screws
should be loosen, and then adjust
motor belt tensioning screws(1) to
make sure the motor drive belt to
85~95lbs.
13 Proceed to the following page for
proper belt stretching and belt tracking
adjustment.
14 Install the deck and running belt in
reverse order
