7.4 Silent Zones
Feature Select Programming ? Addresses 096 & 098, keys [1] to [12]
Using the "Feature Select Programming Method
", select which zones will be defined as Silent Zones.
If an alarm occurs on a Silent Zone, the control panel will report the alarm (see Event Reporting
section 6) to the central station without triggering any bells and/or sirens. Note if zone 3 is defined as
24 hour (fire zone), the control panel will generate an audible alarm, overriding a silent zone definition.
7.5 "24 Hour" & Fire Zones
Feature Select Programming ? Addresses 100 & 102 , keys [1] to [12]
Using the "Feature Select Programming Method
", select which zones will be defined as 24 hour
Zones.
Keypad zones should not be programmed as 24hr zones
. Regardless of the system’s
armed status, an open “24hr” zone will always generate an alarm.
If zone 3 is defined as "24 hour", it becomes a "Fire Zone". Connect the smoke detectors as
described in section 2.11. An open "Fire Zone" will generate the following:
? The panel will send a fire loop trouble report (if programmed at address 500) to the Central.
? A trouble indicator, key [11], and a fire zone indicator, key [3], will flash on the keypad.
?

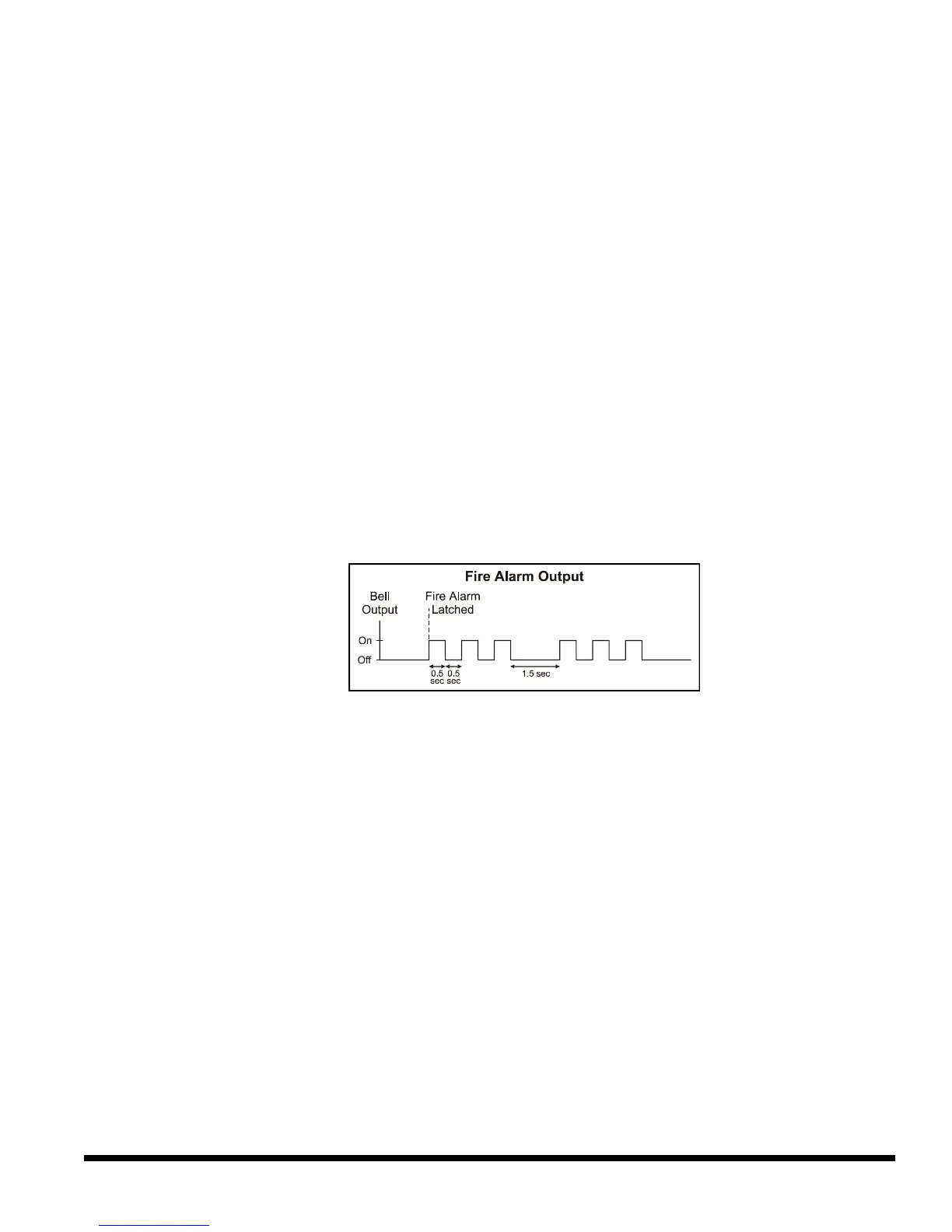

Alarms will generate an intermittent output signal (see figure below), regardless of the system's
current arming status.
? Alarms are always audible, regardless of other settings.
7.5.1 Zone 15 (Enable/Disable)
Feature Select Programming ? Address 090, key [1]
Default: Zone 15 Enabled
If the ATZ feature is enabled and zone 3 has been set as a fire zone, zone 15 must be
disabled if it is not going to be used.
Key [1] "Off": Zone 15 Enabled
Key [1] "On": Zone 15 Disabled
[ENTER] + Installer Code + [10] [9] [10] + [1] On/Off + [ENTER]
7.6 Instant Zones
Feature Select Programming ? Addresses 104 & 106, keys [1] to [12]
Using the "Feature Select Programming Method
", select which zones will be defined as Instant
Zones. If an "Instant" zone opens, the control panel will immediately generate an alarm after the
"Zone Speed" has elapsed.
7.7 Follow Zones
Feature Select Programming ? Addresses 108 & 110, keys [1] to [12]
Using the "Feature Select Programming Method
", select which zones will be defined as Follow
Zone Definitions
