Paradox Magellan MG5000 User Manual

Magellan / Spectra SP 9

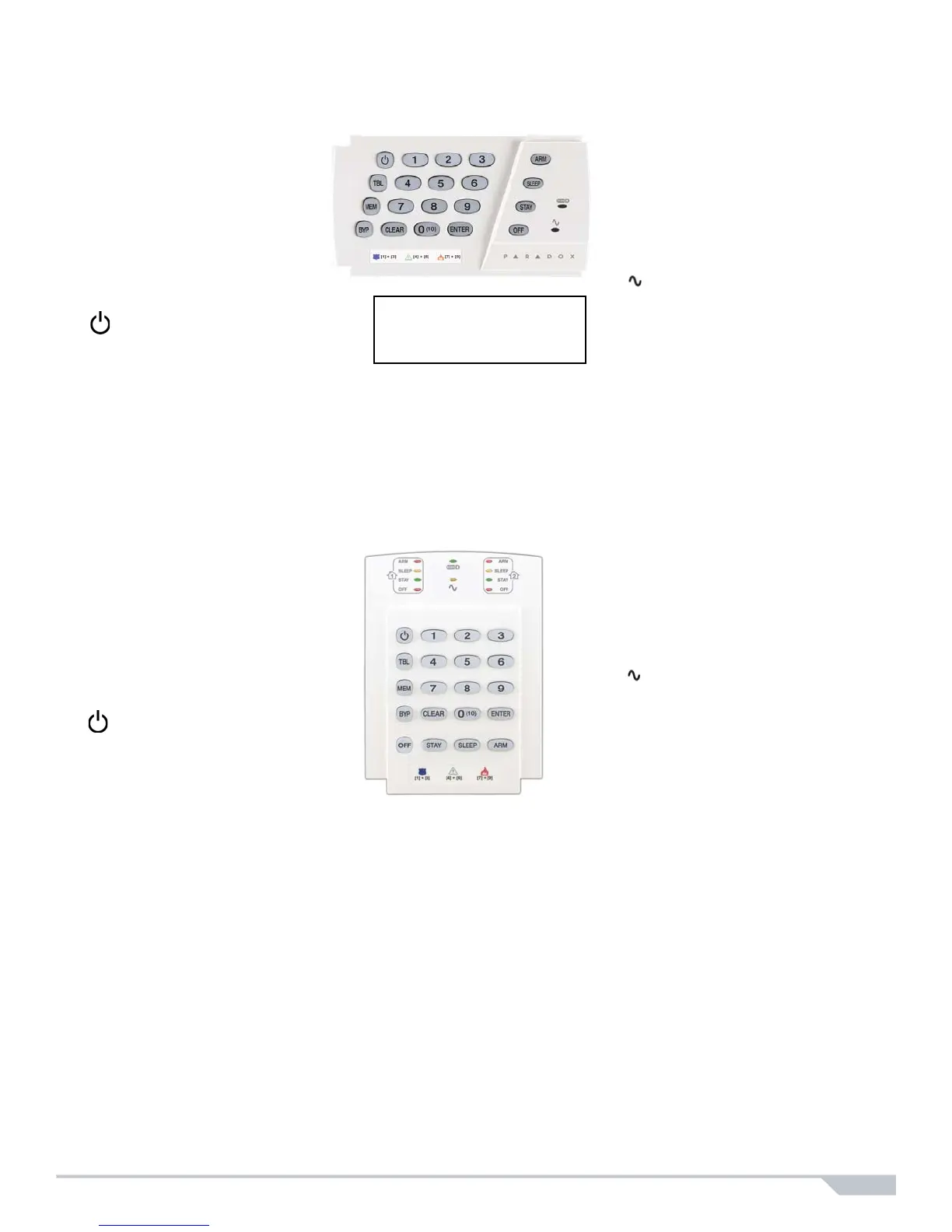

Keypad Overviews
K636 Keypad Overview
K10LEDV/H Keypad Overview
[TBL] Trouble display
ON = Trouble(s) occurring (page 6)
[MEM] Alarm memory display
ON = Alarm(s) occurred (page 17)
[BYP] Bypass programming
ON = Zone(s) bypassed (page 17)
Zone Display:
The keys [1] to [0(10)] correspond
to zones 1 to 10 respectively:
Key lit = Open or entry delay
Key flash = In alarm
Off Key:
ON = Disarmed
OFF = System armed
Light (AC):
ON = Power on
OFF = Power off
StayD Light:
ON = StayD on
OFF = StayD off
(see StayD Mode on
page 12)
[ARM] (page 14)
[SLEEP] (page 14)
[STAY] (page 14)
ON = System armed
OFF = Zone disarmed
Flash = Exit Delay
Fast Flash = Exit Delay (final 10 sec.) / zone in alarm
IMPORTANT: If installed on a
partitioned system, the K636
will only display partition 1.
= Press once + [MASTER CODE] for
Quick Menu Programming (see
Master Quick Menus on page 24)
Partition 1 Status Partition 2 Status
[TBL] Trouble display
ON = Trouble(s) occurring (page 6)
[MEM] Alarm memory display
ON = Alarm(s) occurred (page 17)
[BYP] Bypass programming
ON = Zone(s) bypassed (page 17)
Zone Display:
The keys [1] to [0(10)] correspond
to zones 1 to 10 respectively:
Key lit = Open or entry delay
Key flash = In alarm
= Press once + [
MASTER CODE] for
Quick Menu Programming (see
Master Quick Menus on page 24)
Off Key:
ON = Disarmed
OFF = System armed
Light (AC):
ON = Power on
OFF = Power off
StayD Light:
ON = StayD on
OFF = StayD off
(see StayD Mode on
page 12)
[ARM] (page 14)
[SLEEP] (page 14)
[STAY] (page 14)
ON = System armed
OFF = Zone disarmed
Flash = Exit Delay
Fast Flash = Exit Delay (final 10 sec.) / zone in alarm
