6 User Guide
Basic Operation

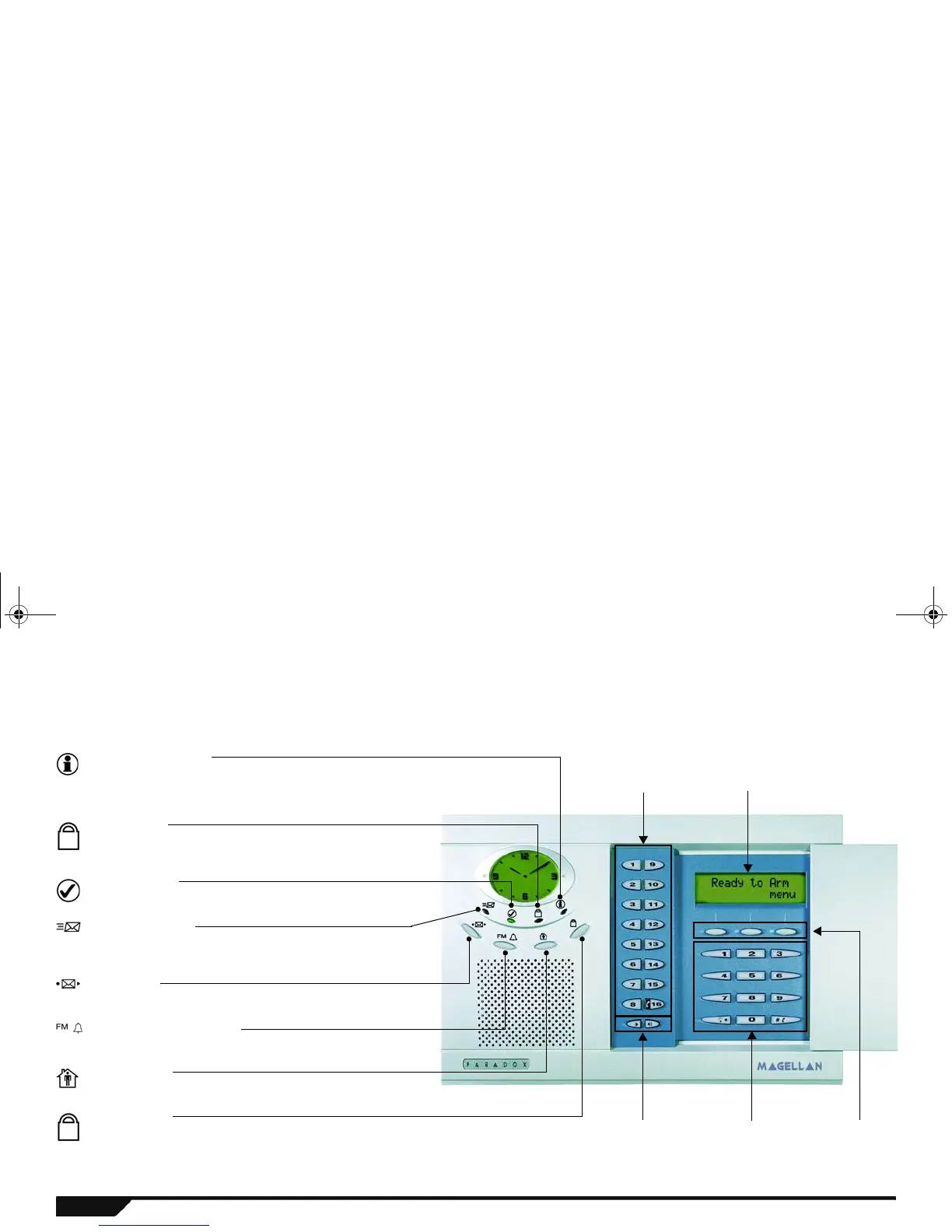

Figure 1: Basic Overview
Action KeysVolume Keys
Center Keypad
(see page 8)
Main Keypad
(see page 8)
Light Indicators:
Orange
INFORMATION light
ON: There is a trouble in the system, an alarm has just
occurred or a zone has been bypassed.
Flashing: There is a power failure and the Magellan console is
receiving no power.
Red
ARMED light
ON: System is Regular armed.
Slow Flashing: System is Stay armed.
Rapid Flashing: System is in alarm.
Green
READY light
ON: All zones closed. System can be armed.
Flashing: System in Exit Delay mode.
Orange
MESSAGE light
Flashing: A voice message has been recorded. See Message
Center on page 18.
Function Keys
Message Key
Press once: Play a recorded voice message.
Press & hold: Record message. See page 18.
Radio Tuner / Alarm Clock Key
Press once: Turn ON/OFF radio. See page 19.
Press & hold: Enable/disable alarm clock. See page 20.
Stay Arming Key
Press once: Enter user code to Stay arm
Press & hold: One-touch Stay arm. See page 10.
Regular Arm Key
Press & hold: One-touch Regular arm. See page 9.
LCD Screen
(see page 7)
