Paradox Spectra 1759EX V1.0 User Manual

S PECTRA 1759EX 7

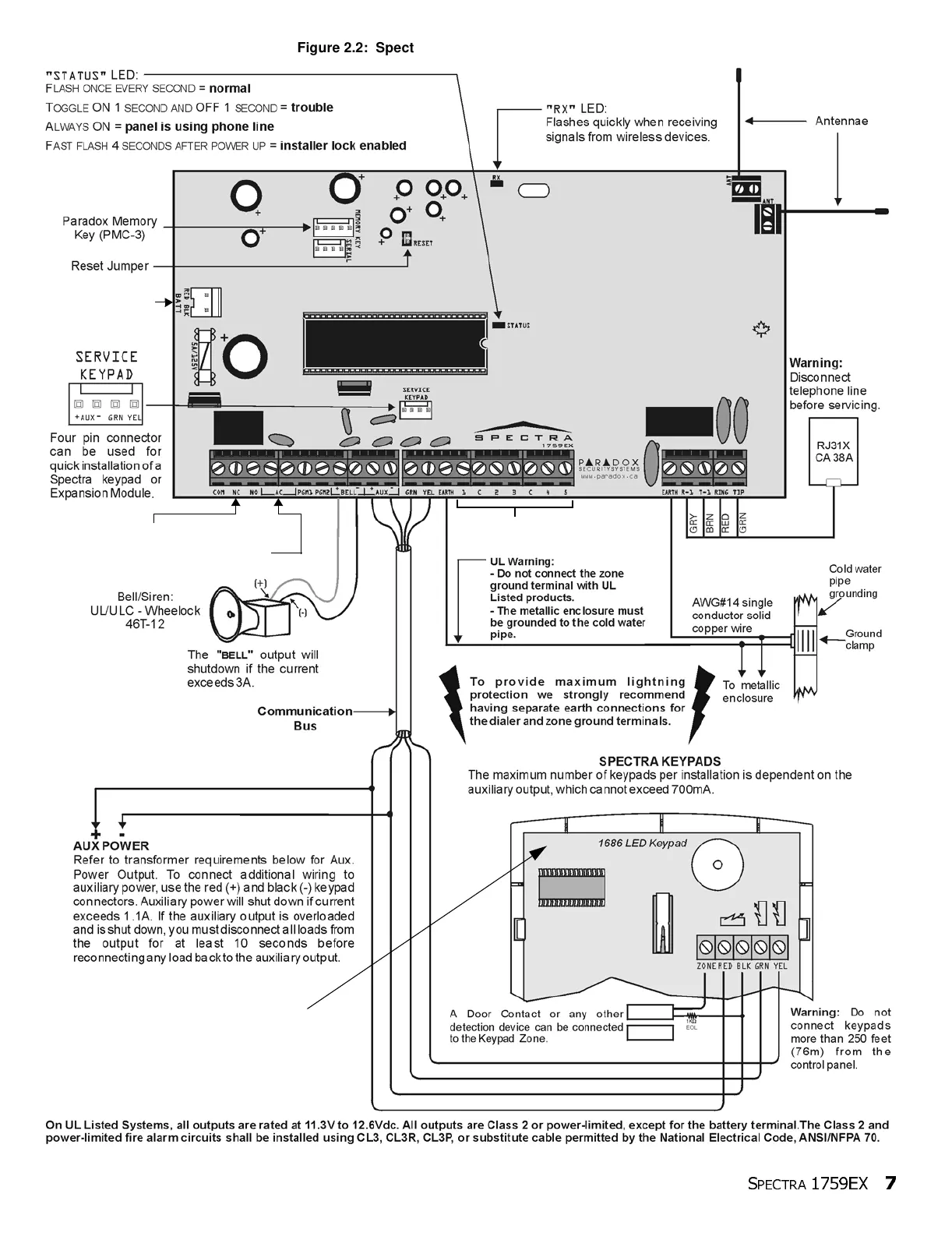

Figure 2.2: Spectra 1759EX Control Panel Overview
For the keypad’s zone, EOL and tamper
configurations, refer to Configuring The
LED Keypads on page 12.
Refer to Single Zone Inputs on
page 9
Refer to AC Power
and Backup Battery
Connections on
page 6.
To connect the 5A Alarm Relay and the PGMs,
refer to Relay and PGM Connections on page 9
.
To connect AC power, refer to AC Power and
Backup Battery Connections on page 6.

Paradox Spectra 1759EX V1.0 Specifications

General

Brand	Paradox
Model	Spectra 1759EX V1.0
Category	Control Unit
Language	English
