REFERENCE & INSTALLATION MANUAL
* Event Group #07, #08 and #09 (Button Pressed on Remote) of the Spectra 1759EX PGM Table. For the PGM Table, please refer to the Spectra
1759EX Programming Guide (1759EX-EP).

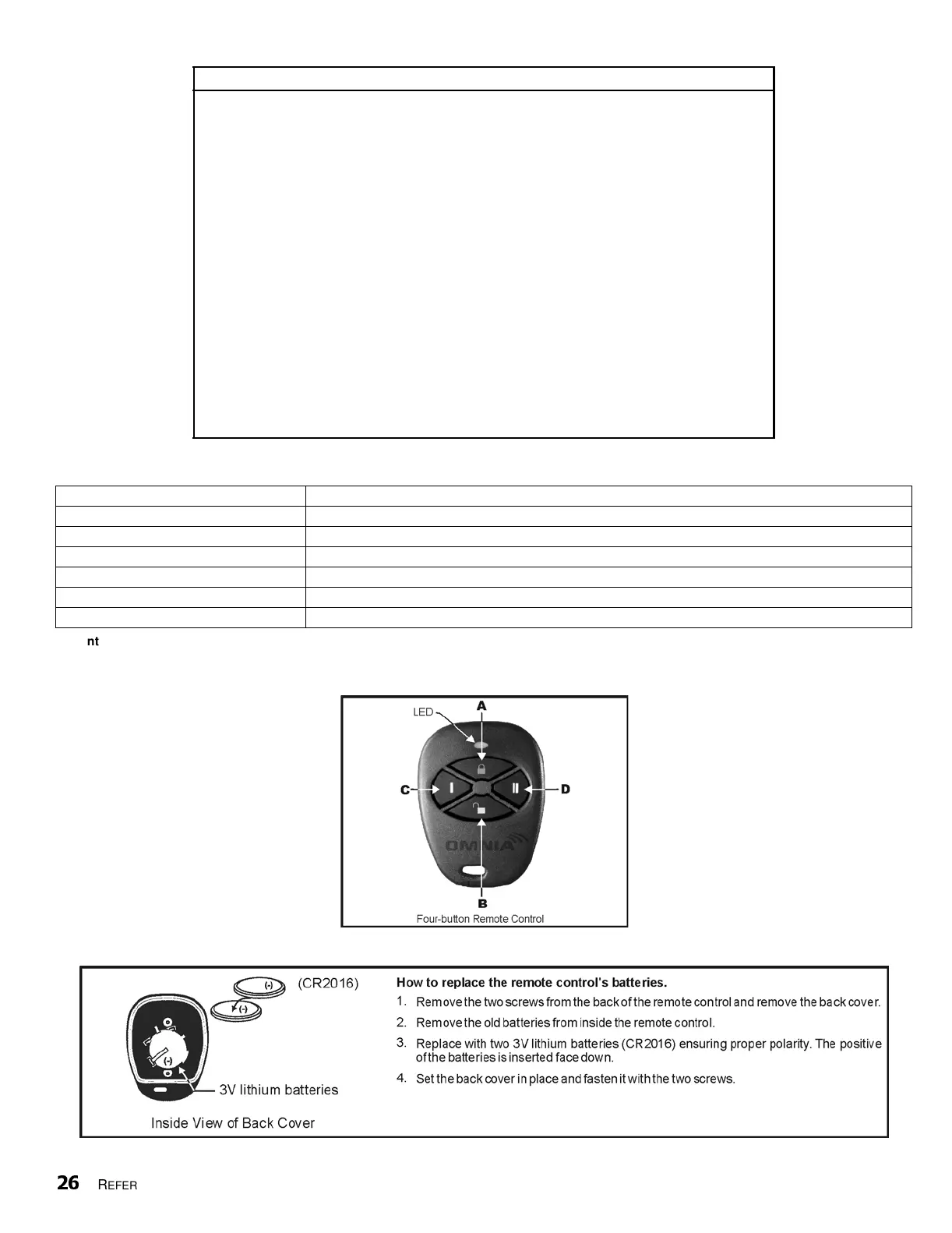

Figure 6.1: Remote Control Button Identification
Figure 6.2: Replacing the Remote Control’s Batteries
Table 7:
Remote Control Button Programming
Remote Control Button Programming (refer to Table 8)
Section
[711] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 1
[712] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 2
[713] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 3
[714] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 4
[715] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 5
[716] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 6
[717] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 7
[718] ____/____/____/____/____/____/____/____
A B C D A+B C+D A+C B+D
Remote Control # 8
Table 8:
Button Options
[
FORCE] = Button Disabled [7] = Regular Arm and Disarm
[1] = Regular Arm [8] = Generate a Panic 1 Alarm (Police)
[2] = Stay Arm [9] = Generate a Panic 2 Alarm (Medical)
[3] = Instant Arm [A] = Generate a Panic 3 Alarm (Fire)
[4] = Force Arm [B] = Activates any PGMs that have Event Group #07* as their Activation Event
[5] = Disarm [C] = Activates any PGMs that have Event Group #08* as their Activation Event
[6] = Disarm when there is no alarm [D] = Activates any PGMs that have Event Group #09* as their Activation Event
