Parameter Generation and Control 9354-4250 - Page 78

F2 F3 F4F1
AIR HEAT OUT 50.0%
H2O HEAT OUT 50.0%
ESC
PERCENTAGE OUTPUT
PROGRAMMABLE, TWO TEMPERATURE MODE

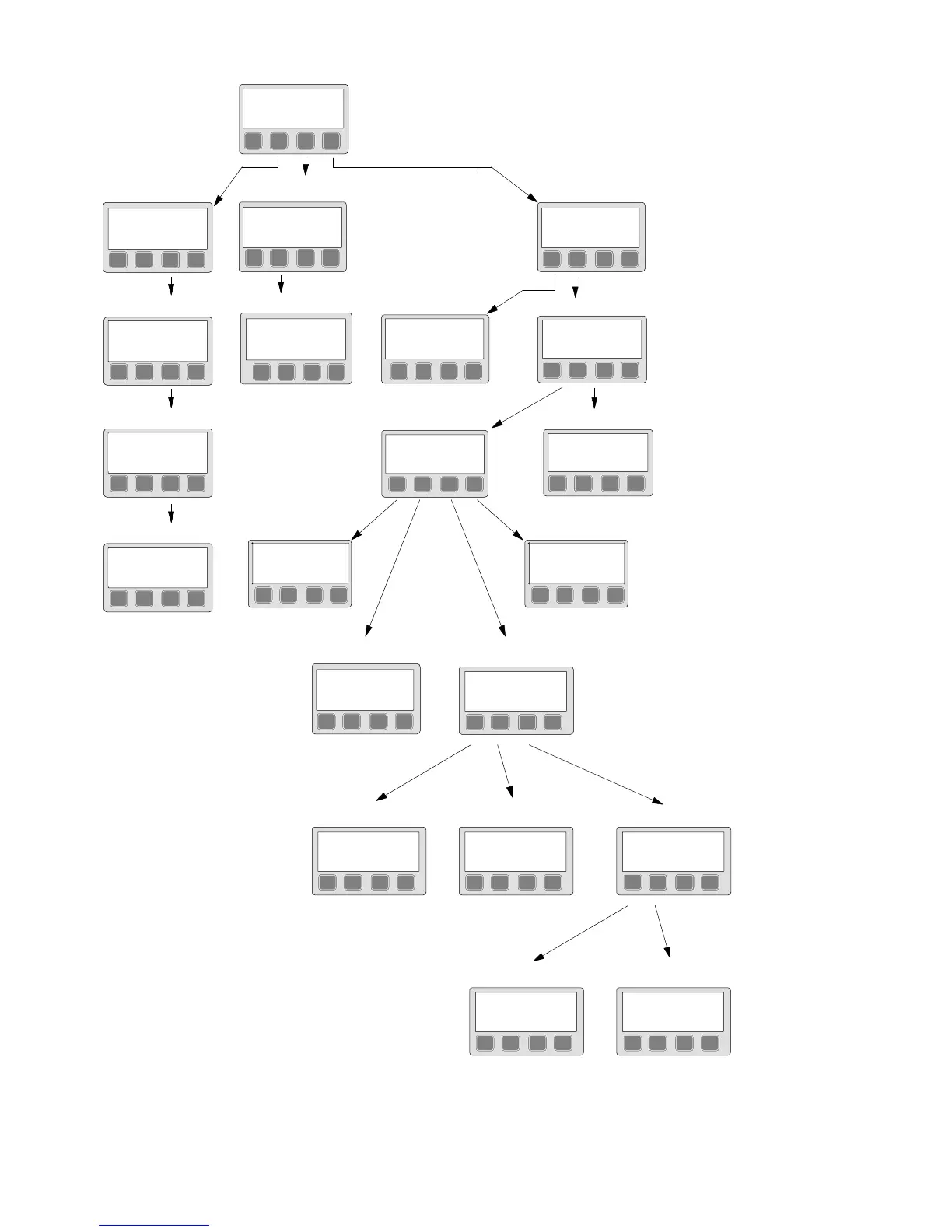

SCREEN PROGRESSION CHART VER 503
F2 F3 F4F1
SEG 19 TIME 17:59:59
AIR SETPOINT 23.0°C
H2O SETPOINT 15.0°C
TAB NEXT INIT ESC
PROGRAM
F2 F3 F4F1
AIR ACTUAL 23.0°C
H2O ACTUAL 15.0°C
SEG 19 TIME 17:59:59
HALT PROG SP MORE
METER
F2 F3 F4F1
SEG 19 TIME 17:59;59
AIR SETPOINT 23.0°C
H2O SETPOINT 15.0°C
HALT OUTPT ESC
MONITOR SET POINT
F2 F3 F4F1
* ALARM CONDITION *
ALARMS ARE DISABLED
ALARM DELAY 00:00:10
ACK RESET ESC
ALARM STATUS
(7178)
PREFERENCES
F2 F3 F4F1
ENTER YOUR LOCK OUT
ACCESS CODE:
REDO ESC
MORE
F2 F3 F4F1
SmartPad SN: 1234567
Software ver. 501f
PROGRAMMABLE TWOTEMP
ALM PREF ESC
ENTRY MODE CHOICE
F3 F4
F1 F2
FACTORY SETUP
CHOOSE CONROL MODE
Two Temp
PREV NEXT CHNG ENTER
F2 F3 F4F1
INITIALIZATION
START AT SEG #01
LOOP FROM SEG #19
LOOP TO SEG #04
TAB EXEC PRGC ESC
F1
AUX RTD CALIBRATION
F2 F3 F4F1
CHOOSE THE AREA
YOU WISH TO MODIFY
CODE ALRM CAL TUNE
AREA MODIFICATION
F2 F3 F4F1
NEW CODE
ENTER THE NEW LOCK
OUT ACCESS CODE:
REDO UNLOCK ESC
F2 F3 F4F1
TUNE MENU
PROGRAMMABLE TWOTEMP
AIR HEATER CONTROL
Control Band 05.00
PREV NEXT ESC
F2 F3 F4F1
PROGRAMMABLE TWOTEMP
GEN ALARM CONFIG
Alarms Enabled
PREV NEXT CHNG ENTER
ALARM MENU
F2 F3 F4F1
WATER CALIBRATION
H2O RTD CALIBRATION
REF. VALUE 63.9
ZERO SPAN NEXT ESC
F2 F3 F4F1
WATER ZERO
H2O RTD ZERO CALIB
ACTUAL VALUE 63.9
REF. VALUE 63.9
CAL DONE
F2 F3 F4F1
WATER SPAN
H2O RTD SPAN CALIB
ACTUAL VALUE 63.9
REF. VALUE 63.9
CAL DONE
F2 F3 F4
AUX RTD CALIBRATION
REF. VALUE 63.9
ZERO SPAN NEXT ESC
F2 F3 F4
AUX RTD ZERO
AUX RTD ZERO CALIB
ACTUAL VALUE 63.9
REF. VALUE 63.9
CAL DONE
F2 F3 F4
AUX RTD SPAN
AUX RTD SPAN CALIB
ACTUAL VALUE 63.9
REF. VALUE 63.9
CAL DONE
F1 F1
F1
F2 F3 F4F1
PROGRAM CONTROL
PROGRAM CHANGE: 00
SEG 19 TIME 17:59:59
TAB NEXT VIEW ESC
F2 F3 F4F1
PROG CONTROL VIEW
PROGRAM CHANGE: 00
SEG 19 TIME 17:59:59
ESC
