PGC, Inc. Appendix B; SmartPad version 0.503 Steady State & Programmable
November 2005 B-12

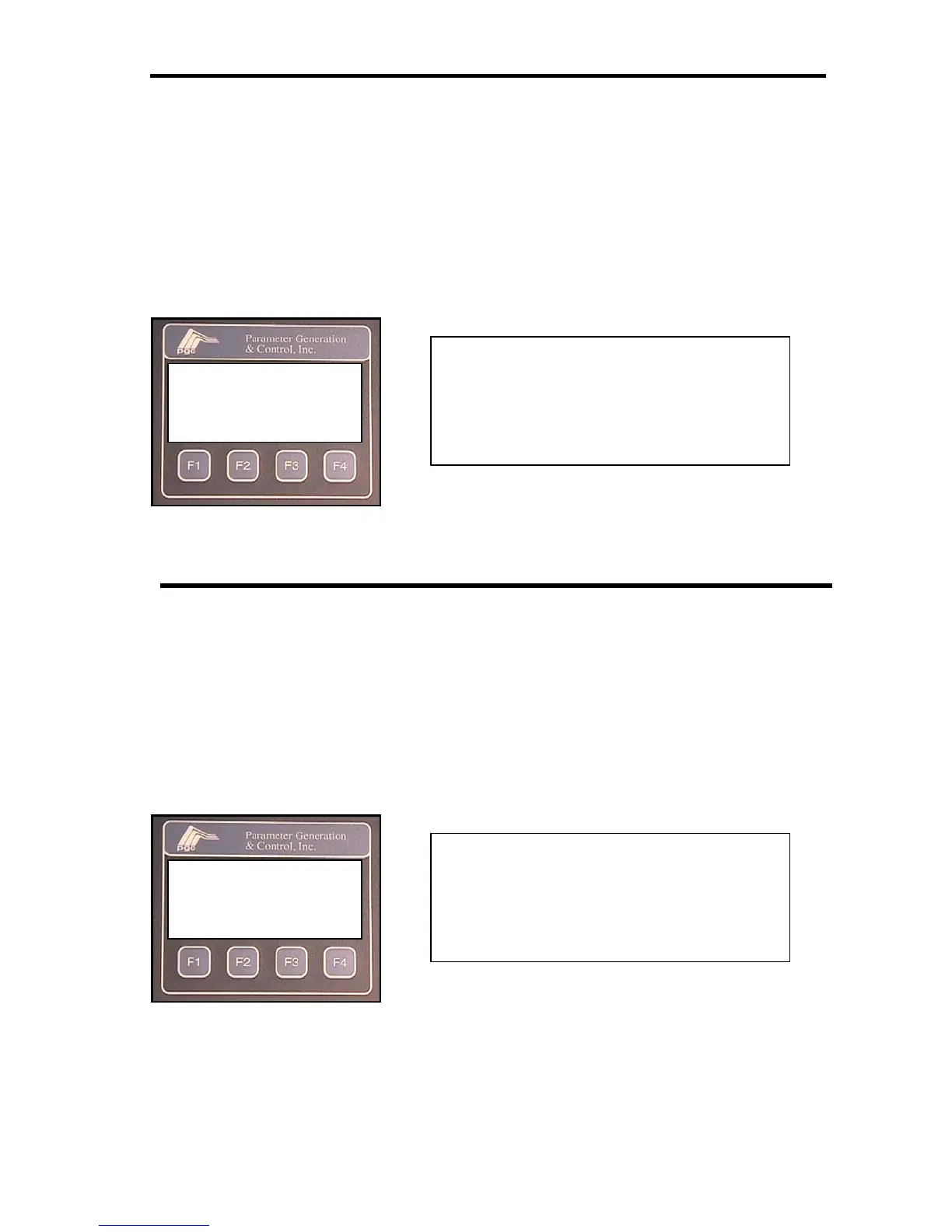

Monitor Water Values Screen
(Steady State and Prog Modes)
The monitor water values screen allows the user to observe the measured water temperature and
the water set point that is determined by the cascade control loop. These values cannot be
modified. This screen is for monitoring only. This screen is available only in cascade or slow
damper cascade mode.
Monitor React Values Screen (Steady State and Prog Modes)
The monitor react values screen allows the user to observe the measured reactivation
temperature and the reactivation set point that is determined by the desiccant dryer control loop.
These values cannot be modified. This screen is for monitoring only. This screen is available
only in dry mode, and only if the controller is configured for reactivation heater control.
H2O SETPOINT 11.0°C
H2O ACTUAL 11.0°C
ESC
Key for function keys action
F1 = no function
F2 = no function
F3 = no function
F4 = ESC: return to process variable screen
RCT SET POINT 40.0°C
RCT ACTUAL 40.0°C
ESC
Key for function keys action
F1 = no function
F2 = no function
F3 = no function
F4 = ESC: return to process variable screen
