InspectRx200 Operator Guide | 2 - InspectRx Preventative Maintenance Guide | 50

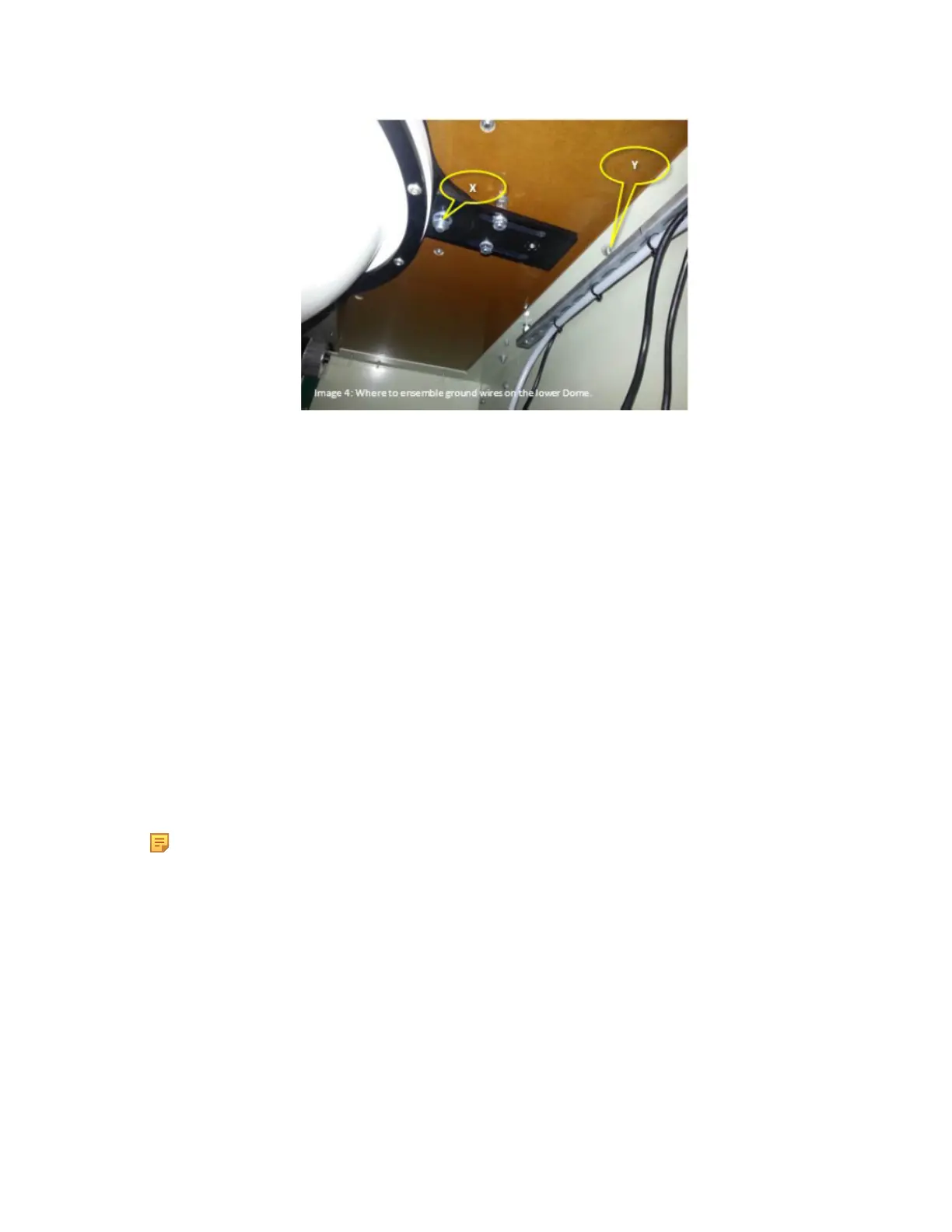

17. Cross off SB1
Belt Alignment and Verification
Camera Settings and Calibration
Aligning the Bottom Camera
1. Located the Diaphragm Settings on the lower part of the lens.
a. It may be necessary to unscrew the lens in order to find the diaphragm settings.
2.
Verify the setting is lined up with the hash mark set to the ‘4’ on the diaphragm.
a. Tighten the locking thumb screw when it is set to 4.
3. Secure the lens back onto the camera by grasping the bottom of the lens and tightening onto
thecamera.
Note: If changing the diapraghm setting it may be necessary to perform the ‘auto
calibration of the bottom camera’ prior to focusing the camera.
