590 Series DC Digital Drive Programming
D-7

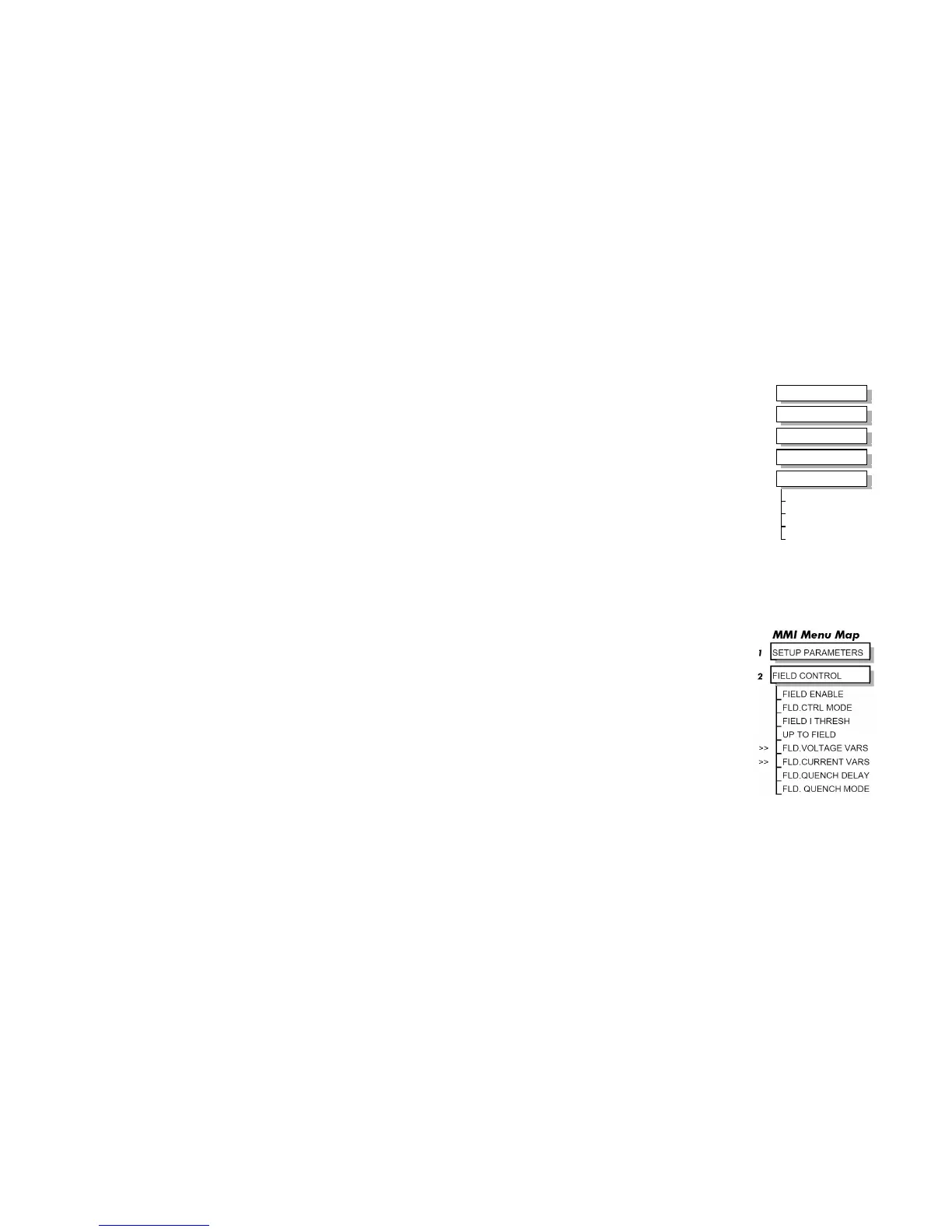

MMI Menu Maps
The function block descriptions include an easy-find menu showing the menu levels and titles encountered to find the
appropriate menu title, and the parameters contained in the menu(s).
The Menu Maps are shown as if the view level is STANDARD.
Where there is more than one sub-menu, i.e. ANALOG INPUTS as illustrated, the parameters shown will be for the last sub-
menu. In many cases, these parameters will reflect the name and number of the last sub-menu.
MMI parameters are named intuitively to make the MMI easier to use, however, they may vary slightly from function block
names.
A function block may contain parameters that are contained within more than one MMI menu level, for example FIELD CONTROL. In this case, the
extra menu levels are indicated by >> in the MMI Menu Map.
MMI Menu Ma
To Next Page
