ER Series Rodless Actuator
PM-ER01/USA Maintenance Instructions and Parts List
DC Brush Motor Options

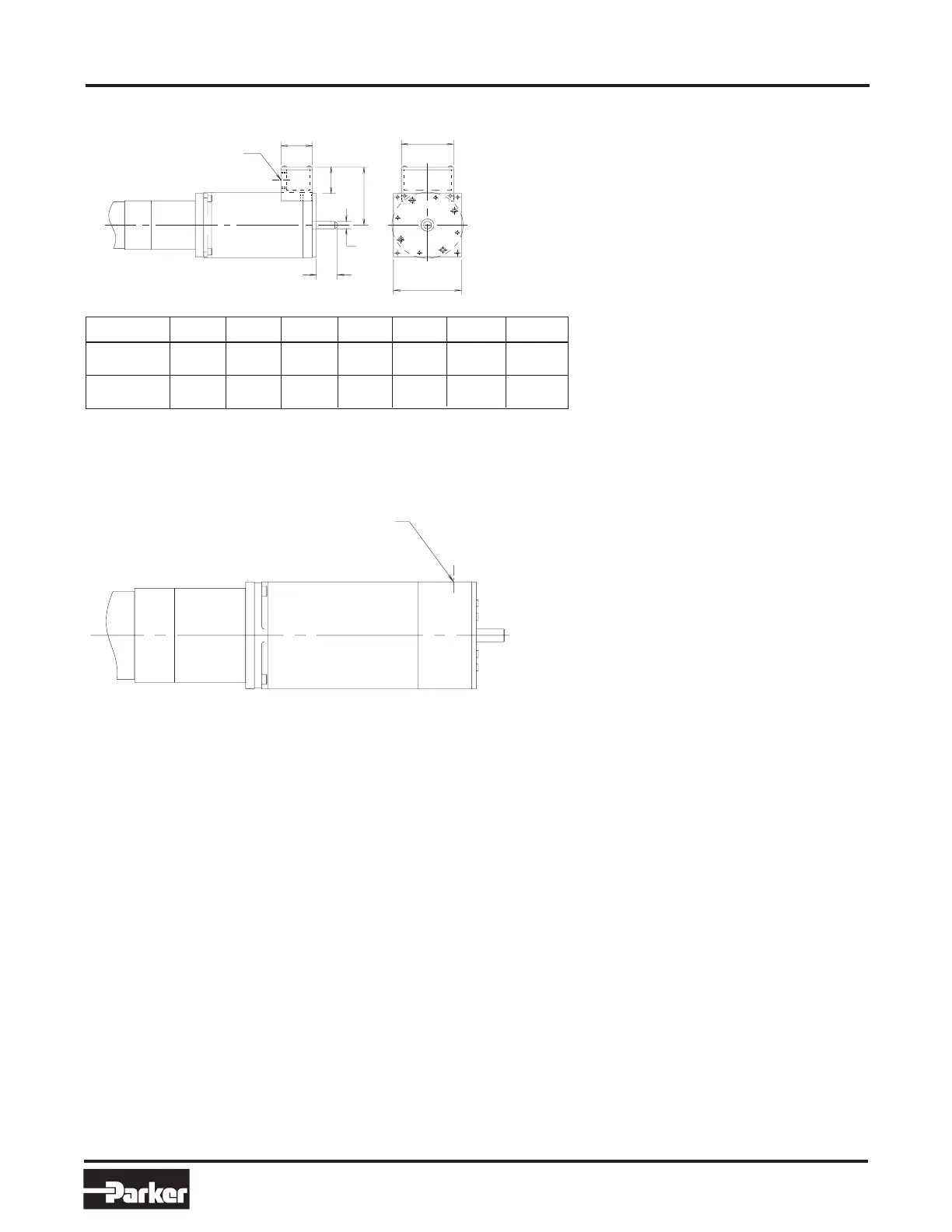

Conduit Connector Option (Motor Codes 22 and 32)
A
B
C
D
E
φF
G
Motor Code A B C D E
∅∅
∅∅
∅FG
22
38.1 50.8 33.0 61.5 57.2 6.3 15.0
(1.50) (2.00) (1.30) (2.42) (2.25) (0.25) (0.59)
32
38.1 63.5 35.0 76.2 82.5 9.6 25.0
(1.50) (2.50) (1.38) (3.00) (3.25) (0.38) (1.00)
Dimensions: mm (inch)
Conduit Connector Option (Motor Code 42)
1/2 in NPS
1/2 in NPS
