ER Series Rodless Actuator
Maintenance Instructions and Parts List
DC Brush Motor Options

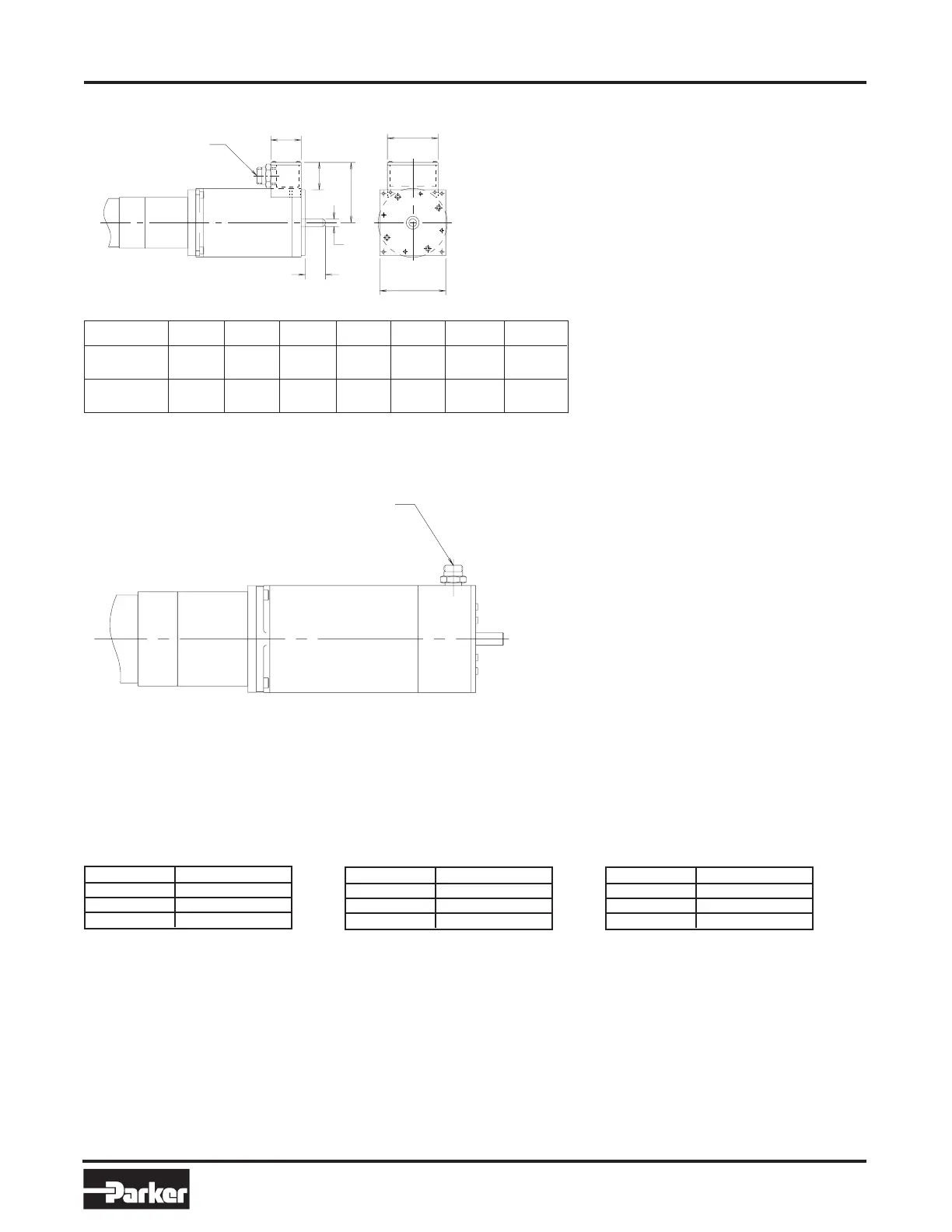

Brad Harrison Quick Disconnect Option (Motor Codes 23 and 33)
Motor Code A B C D E
∅∅
∅∅
∅FG
23
38.1 50.8 33.0 61.5 57.2 6.3 15.0
(1.50) (2.00) (1.30) (2.42) (2.25) (0.25) (0.59)
33
38.1 63.5 35.0 76.2 82.5 9.6 25.0
(1.50) (2.50) (1.38) (3.00) (3.25) (0.38) (1.00)
Dimensions: mm (inch)
Brad Harrison Quick Disconnect Option (Motor Code 43)
Brad Harrison
Male 3 Pin Receptacle
DC Brush Motor Cable Color Coding
Motor Codes 21, 22, 31 and 32
Color Assignment
Blue Motor +
Green/Yellow Motor Ground
Brown Motor -
Motor Codes 41 and 42
Color Assignment
Red Motor +
Green/Yellow Motor Ground
Black Motor -
Motor Codes 23, 33 and 43
Color Assignment
Black Motor +
Green/Yellow Motor Ground
White Motor -
Brad Harrison
Male 3 Pin Receptacle
