Proportional Pressure Valves
Series RE*T / R*V
Operation Manual
Parker Hannifin Corporation
RE_-R_V obe_24-45-A-B 5715-651 UK 29.01.19

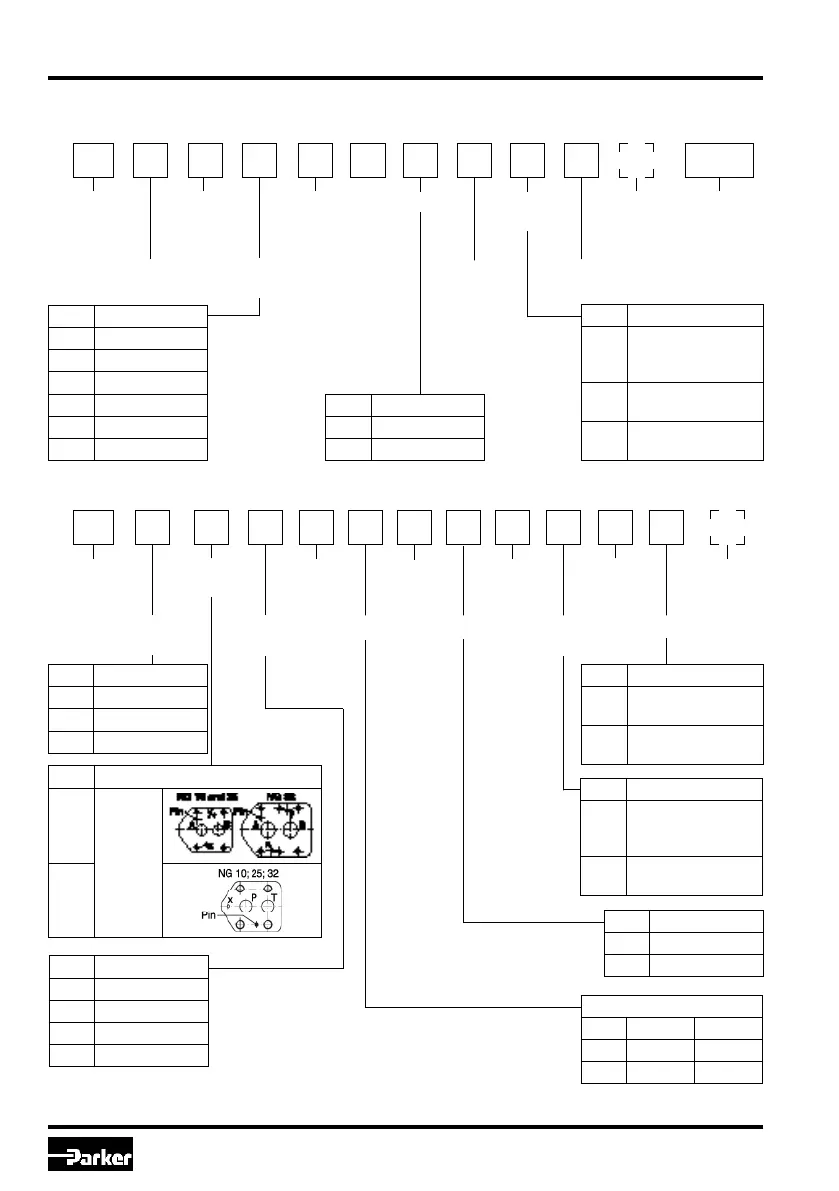

Ordering Code RE06M*T
1. Introduction
Proportional
pressure
relief valve
Normaly
open
Seal Design
series
(not required
on ordering)
Onboard
electronics
NG06 Electronic
attachment
Command
signal
Code Pressure stage
05 50 bar
10 105 bar
17 175 bar
21 210 bar
25 250 bar
35 350 bar
Code Command signal
F
Voltage input 0...+10 V
with reference output
+10 V
G
Current input
0...20 mA
R
Current input
4...20 mA
RE 06 M T 2 1 0
Interface
ISO 6264
Pressure
stage
Code Interface
M
Subplate
mounting
ISO 6264
R
1)
1)
external drain with pipe only
Ordering Code RE*T
Proportional
pressure
relief valve
Normaly
open
Seal
Design
series
(not required
on ordering)
Onboard
electronics
Nominal
size
Electronic
attachment
Command
signal
Code Pressure stage
10 105 bar
17 175 bar
25 250 bar
35 350 bar
Code Command signal
F
Voltage input 0...+10 V
with reference output
+10 V
R
Current input
4...20 mA
RE T 1 0
Inter-
face
Pressure
stage
Code Seal
N NBR
V FPM
Code Nominal size
10 NG10
25 NG25
32 NG32
Pilot oil Options
Poppet
spring
S
Code Options
omit
Without mech. max.
adjustment
M
Mechanical max.
adjustment
Pilot oil
Code Pilot Drain
1 internal external
4 internal internal
Option:
Body only
P/T-connec-
tion, sole-
noid 180°
twisted
XG087
Code Seal
N NBR
V FPM
