Proportional Pressure Valves
Series RE*T / R*V
Operation Manual
Parker Hannifin Corporation
RE_-R_V obe_24-45-A-B 5715-651 UK 29.01.19
Parker R*V / RE*T pressure valves have an integral
electronic and requires only one sole electrical
common for the control system. Different flow sizes,
as well as command signal options are available
to achieve an optimal adaption for different appli-
cations.

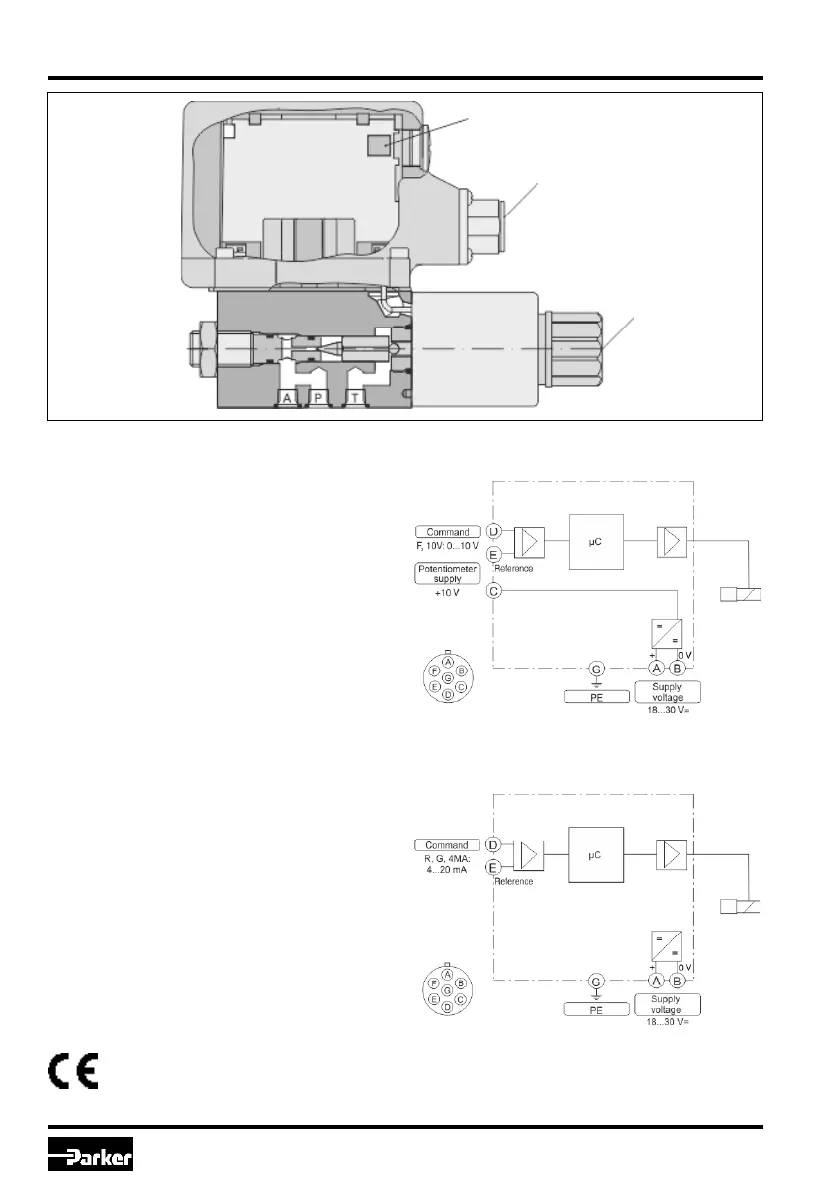

Block diagram of integral elektronics
Code F/10V
Code G/R/4MA
Characteristics of Valve Driver
The described integral electronic driver combines
all necessary functions for the optimal operation of
the valve. The most important features are:
digital circuit design
high dynamic constant current solenoid con-
trol
differential input stage with various command
signal options
two quadrant ramp function
MIN adjustment for deadband compensation
MAX adjustment to match the command signal
span to the valve operating range
optional reference outputs 10 V for potentio-
meter supply
standard central connection
compatible to the relevant European EMC-
standards
comfortable interface program
RE06M*T
Parametrizing connector
Central connector
Air bleeding
