Parker RE06M T Series User Manual

6
Proportional Pressure Valves
Series RE*T / R*V
Operation Manual
Parker Hannifin Corporation
RE_-R_V obe_24-45-A-B 5715-651 UK 29.01.19
Code Interface
4
Subplate
mounting
ISO 6264
6

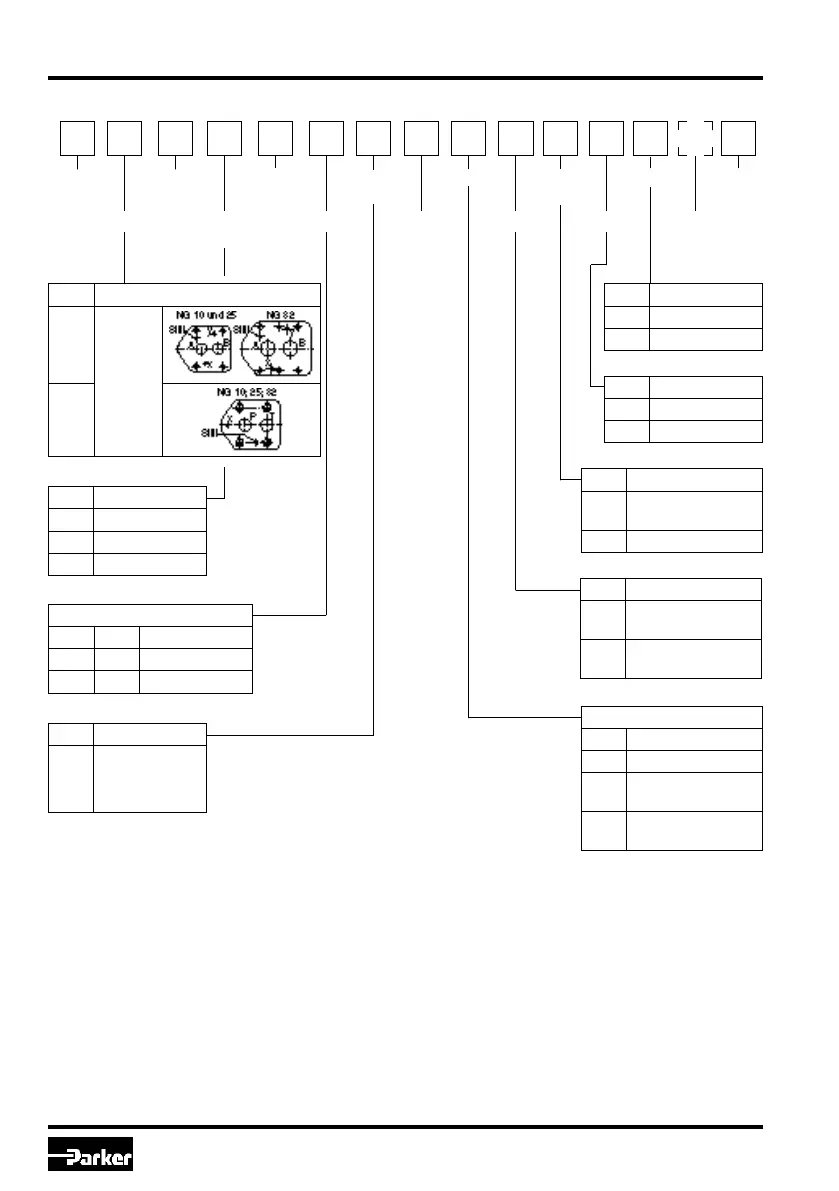

Ordering Code R*V
Pressure
valve
Proportional
pilot
Seal
Design Design
series
(not required
on ordering)
Relief
function
Nominal
size
Modifi-
cations
Command
signal
Code Pressure stage
1)
1 105 bar
3 210 bar
5 350 bar
Code Command signal
10V
0...+10 V (reference
output +10 V)
4MA 4...20 mA
R V P
Interface
Pressure
stage
Code Seal
1 NBR
5 FPM
Code Nominal size
03 NG10
06 NG25
10 NG32
Drain port Options
Max. pressure
350bar
5
Code Options
PN
Without mech. max.
adjustment
PM
4)
Mechanical max.
adjustment
Pilot oil
Code Drain
0 internal
1
2)
external from
subplate
2
3)
external from valve
body (Y-port)
Pilot oil
Code Design series
A R4V
B R6V
Pilot oil drain
Code Valve Drain
3 R4V Y-port at subplate
9 R6V Y-port = G 1/8"
1) Other pressure stages on request
2) Only R4V
3) Only R6V
4) R4V: Adjustment with acorn nut
