Proportional Pressure Valves
Series RE*T / R*V
Operation Manual
17
Parker Hannifin Corporation
RE_-R_V obe_24-45-A-B 5715-651 UK 29.01.19
5. Operating Instructions
Basically the valve performs the task of converting a
command signal into a proportional spool stroke with
the highest possible dynamic. For these purposes
the input value will be electronically processed and
provides via a power amplifier stage the required
current for the valve solenoid.
ProPxD parameterizing software
The ProPxD software permits comfortable parame-
ter setting for the module electronic. Via the clearly
arranged entry mask the parameters can be noticed
and modified. Storage of complete parameter sets
is possible as well as printout or record as a text
file for further documentation.
The PC software can be downloaded free of charge
at www.parker.com/isde – see page “Support" or
directly at www.parker.com/propxd.
Hardware requirements
• PC with operating system from Windows
®
XP
upwards
• Interface RS232C
• display resolution min. 800 x 600
• connection cable between PC and electronic
module
• storage requirement approx. 40 MB
If your PC has no serial interface according
to RS232C standard you require in addition
an USB-RS232C adapter.

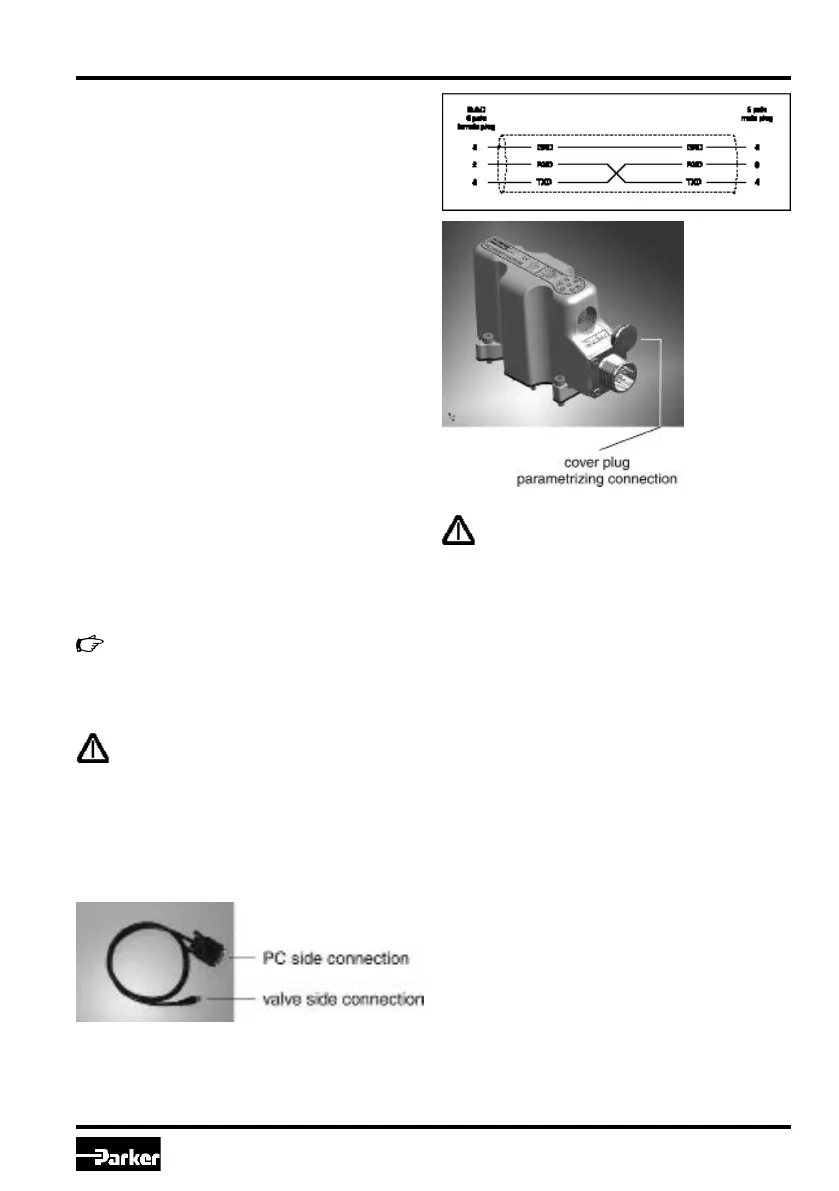

Parametrizing cable
Ordering code: 40982923
The cover plug has to be re-installed after
completion of the parametrizing work.
Cable Specification
Attention! The valve electronic provides no
USB interface, but can only be parametrized
via an RS232C - connection. Therefore the
usage of USB standard cables is not allowed
and may result in damaging of valve resp. PC.
Program installation
Please check before installation if the above hard-
ware requirements are met. If your PC has already
stored an older version of the “ProPxD” program,
it has to be deinstalled by using the Windows
®
-
system control feature.
Program installation sequence:
• terminate the execution of other programs
• execute the file “setup.exe”
• follow the instructions on the screen
Answer the question, if an older version should be
overwritten, with “ok”. During the installation you
may change destination drive resp. installation
path, if needed.
Please answer also “ok” if at the end of the installation
the program reports any system information. After
successful installation the desktop display shows
the ProPxD icon for starting the program.
