Parker Sentinel User Manual

21
| User’s Manual
Sentinel
™
Appendix 1
* Included with standard unit
- Dry sealed vacuum pump
- Coalescing lter
- 5 micron Ecoglass III element
- 6kW 3 phase low-density heater
- 3” diameter rubber-wheel casters
- Consult factory for other options
Electrical Requirements:
230VAC, 3P, 60Hz
460VAC, 3P, 60Hz
380VAC, 3P, 50Hz
Max AMP Draw: 16 amp
Electrical Connection Port:
NEMA L16-30P Flanged Inlet
Hydraulic Connections:
Inlet: JIC 12
Outlet: JIC 12
Max Flow: 5 GPM
Water Drain: JIC 8
Vacuum Exhaust Port: JIC 8
Inlet Pressure: 0-60 psi (gauge)
Weight: approximately 400 lbs.
Operating Temp: 80°F (27°C) doors on
105°F (40°C) doors off
Storage: Max Temp 180°F, 100% RH
Standard Unit
Part Number Description
943118* 230VAC, 3P, 60Hz
943116* 380VAC, 3P, 50Hz
943213* 460VAC, 3P, 60Hz
943494* 415VAC, 3P, 50Hz
Optional Accessories
943236 Mounting Bracket Kit
943238 Cordset (pigtail end)
used with 943116 and
943213 only
Technical Specifications

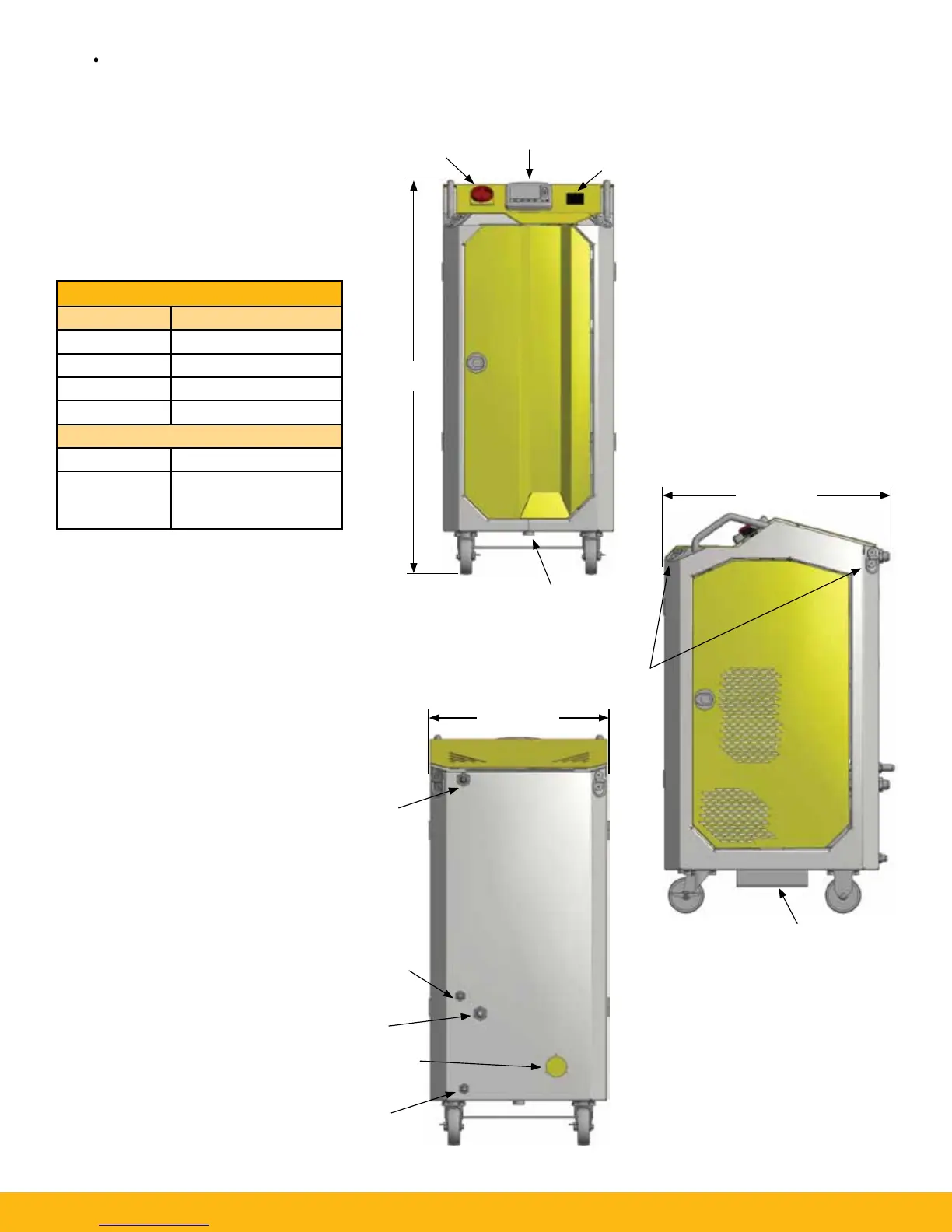

19.5 (495 mm)
Hydraulic
Outlet
Vacuum
Exhaust
Hydraulic
Inlet
Water
Drain
Electrical
Connection
Port
45.2
(1148 mm)
Main Power
IQAN Control
Phase Reversal
1/2” NPT
Cabinet Drain
24.4 (619 mm)
Fork Truck
Support Pocket
4 Point Tie
Down Rings

Parker Sentinel Specifications

General

Filtration Technology	Reverse Osmosis
Storage Tank Capacity	3.2 gallons
Operating Temperature	40-100°F
Daily Production	50 gallons
Warranty	1 year limited
