7200 Monitor Instruction Manual

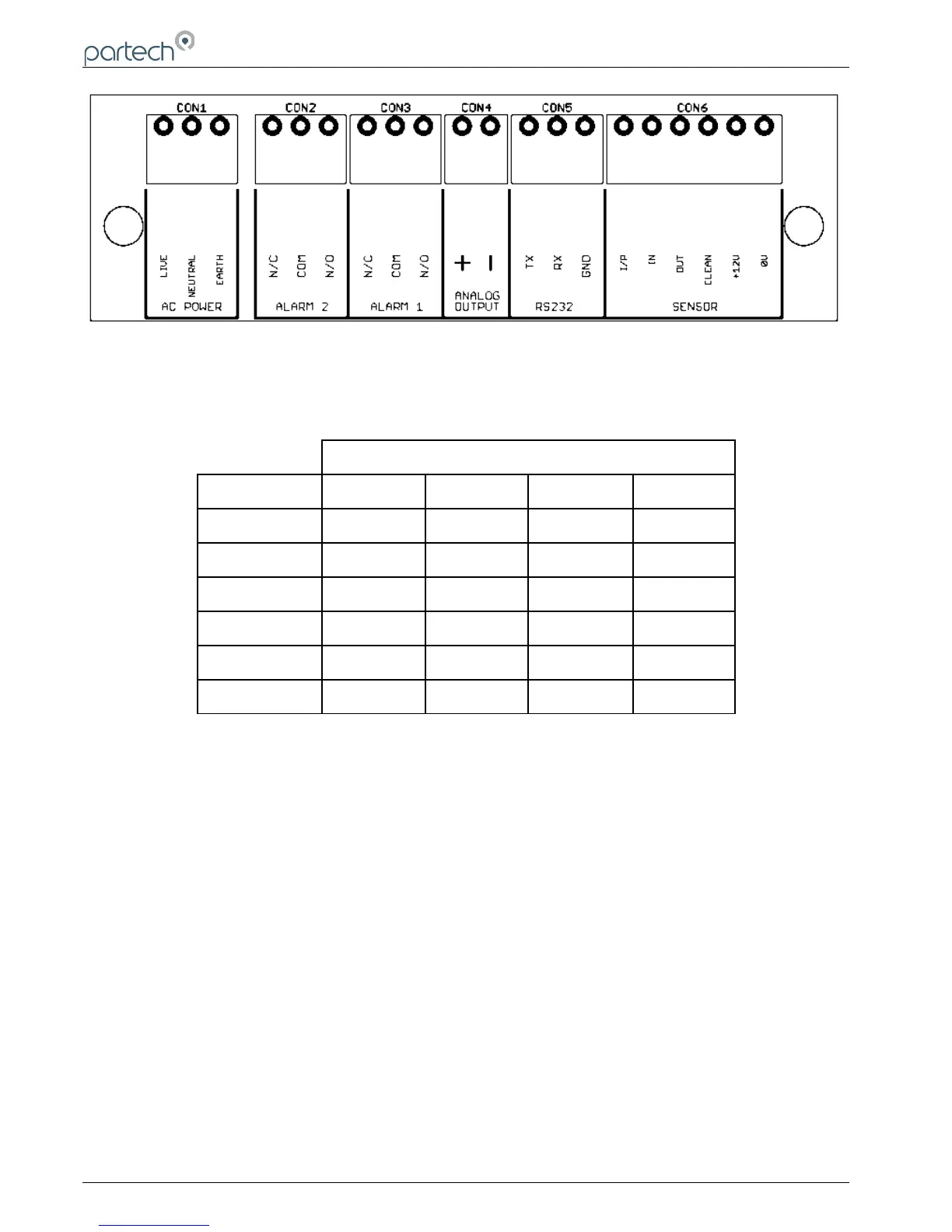

7200 Field Mount Connection Terminals
Sensor Type
Terminal TT Series IR Series IL Series ST Series
Sensor I/P Yellow White White White
In Opto Black - - -
Out Opto Red - - -
Clean Green - - -
Sensor 12V Blue Red Red Red
Sensor 0V White Black or Blue Black or Blue Black or Blue
Sensor Connection Detail
Note 1: The normal condition for the alarm outputs is when the instrument is powered and the alarm is off.
Note 2: The RS232 connections can be used to collect data from the 7200 and using a suitable serial cable for
connection to a PC. Further details of the serial connection lead are available from Partech on request.
