IP: 10.10.60.148 (factory default IP Address)
If no message is shown in the display or there is not light in the display, the device is
defective and has to be returned for servicing.
3.2 Functional Self Test
No specific functional self test is needed.
The device has been factory tested according to recognized test procedures and is
ready for operation.
4. Structure

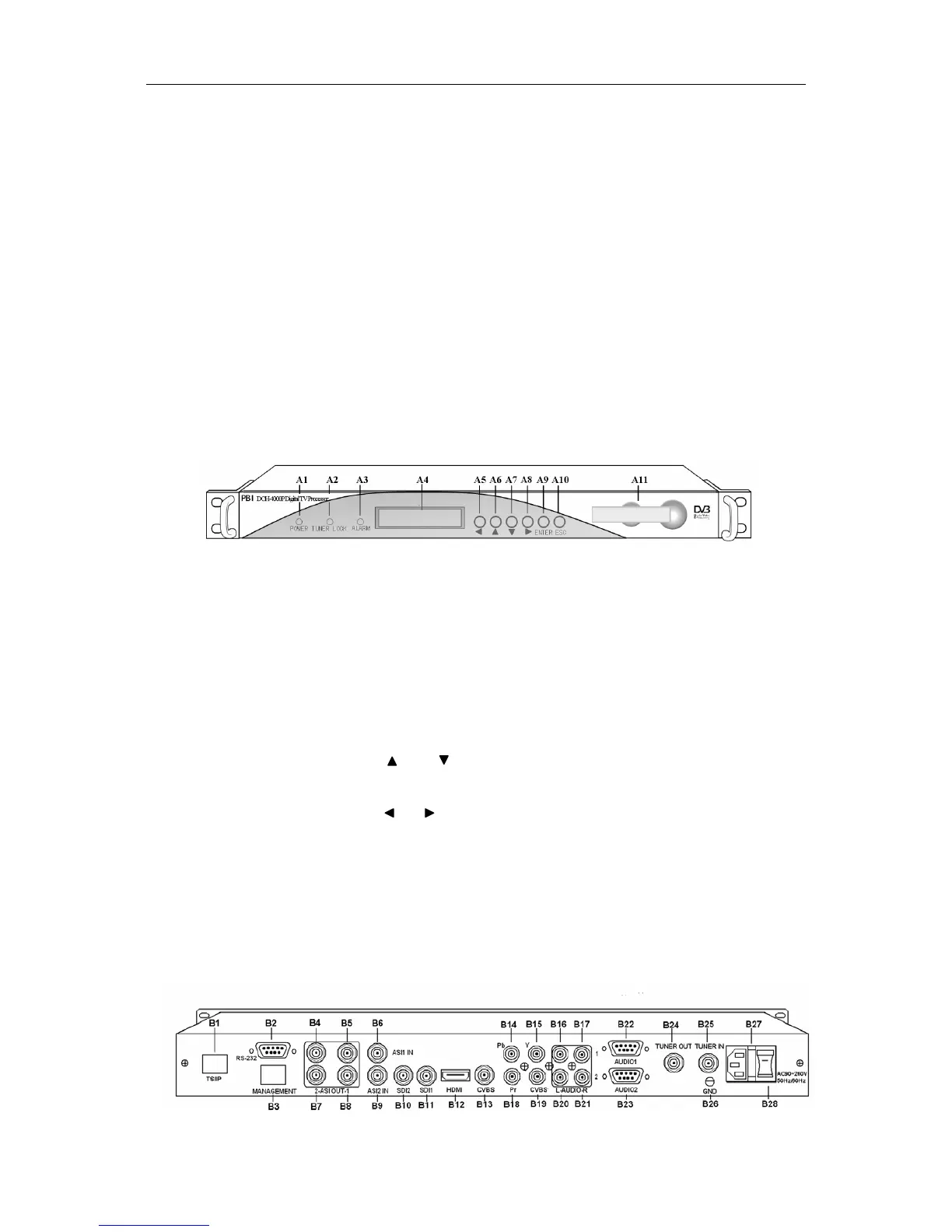

4.1 Front Panel
A1 POWER Power indicator, green light means power is OK
A2 TUNER LOCK Tuner lock indicator, green light means signal is locked; if
there is no light, which means no signal input or wrong
parameters setting.
A3 ALARM Alarm indicator
A4 LCD 2 × 20 character LCD
A5-A10 Operation buttons
〔〕〔〕
are used to up/down pages of menu or
increase/decrease value when edit numbers
〔〕〔〕
are used to move cursor
〔
ENTER
〕
is used to enter sub menu or confirm operation
〔EXIT〕is used to return previous menu or cancel operation
A11 Common Interface PCMCIA Module slot
4.2 Rear Panel
