E. Position powerside column
Lay down two columns on the installation site parallelly, position the powerside
column according to the actual installation site. Usually, it is suggested to install
powerside column on the front-right side from which vehicles are driven to the lift.
This lift is designed with 2-Section columns. Adjustable height according to the
ceiling height and connecting the inner and extensions columns.
1. 209C requirment: Ceiling height over 3850mm, can be both low setting/high setting,
Ceiling height between 3650-3850mm, only avaiable low setting. Minium ceiling
height: 3650mm
2. 209CH requirment: Ceiling height over 4460mm, can be both low setting/high
setting, Ceiling height between 4260-4460mm, only avaiable low setting. Minium
ceiling height: 4260mm
Note:

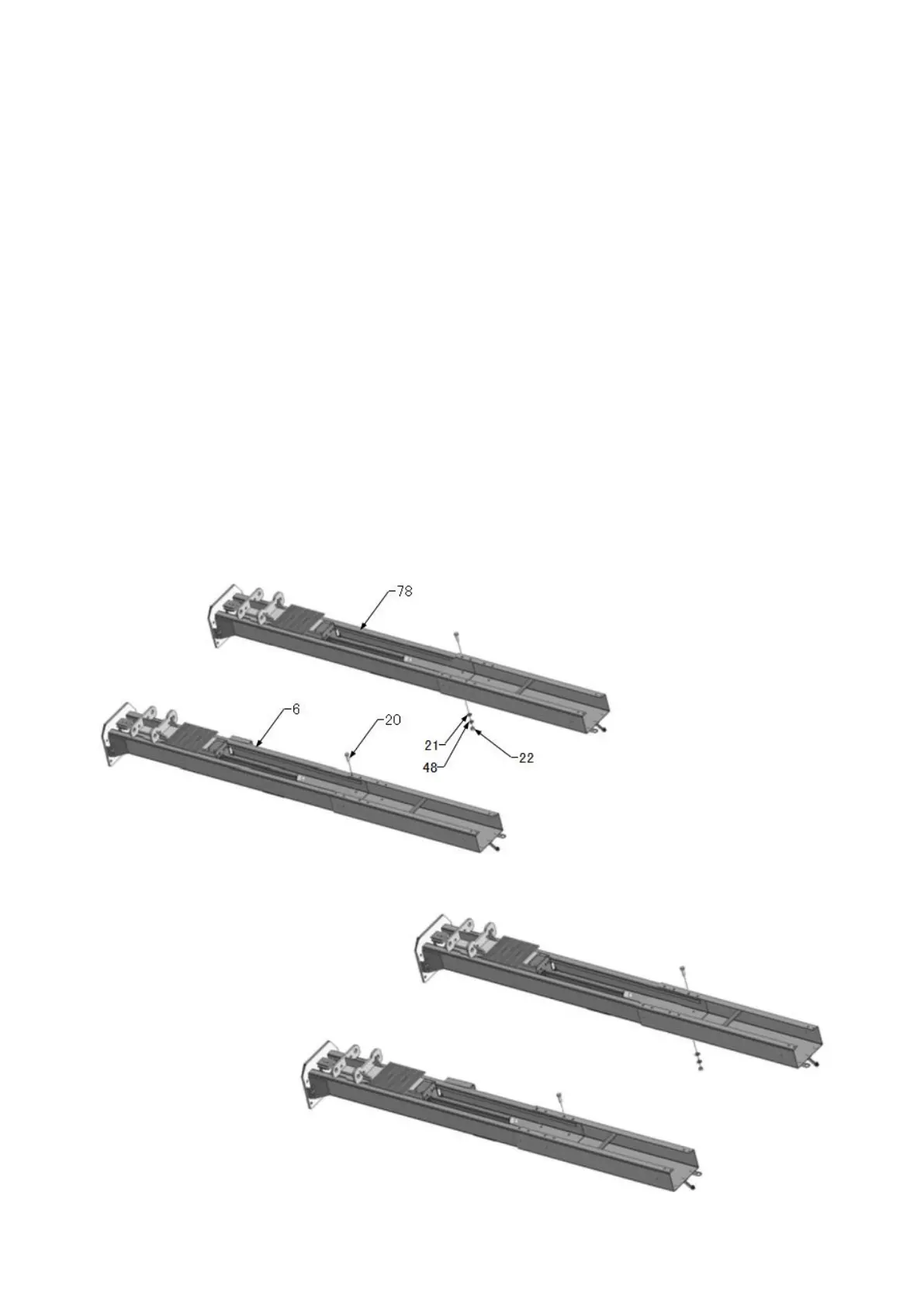

1. For high setting, connect the lower hold of the extension columns (see fig 14).
2. For low setting, connect the upper hole of the extension columns (see fig 15).
