Peak 209C - Illustration of Hydraulic Valve for Hydraulic Power Unit

33
30
81400449
Valve Seat
1
31
81400567
Release Vavle
1
32
81400566
Check Valve
1
33
81400289
Oil Ruturn Hose
1
34
81400364
clamp
1
35
81400263
Oil tank cover
1
36
81400275
Oil tank
1

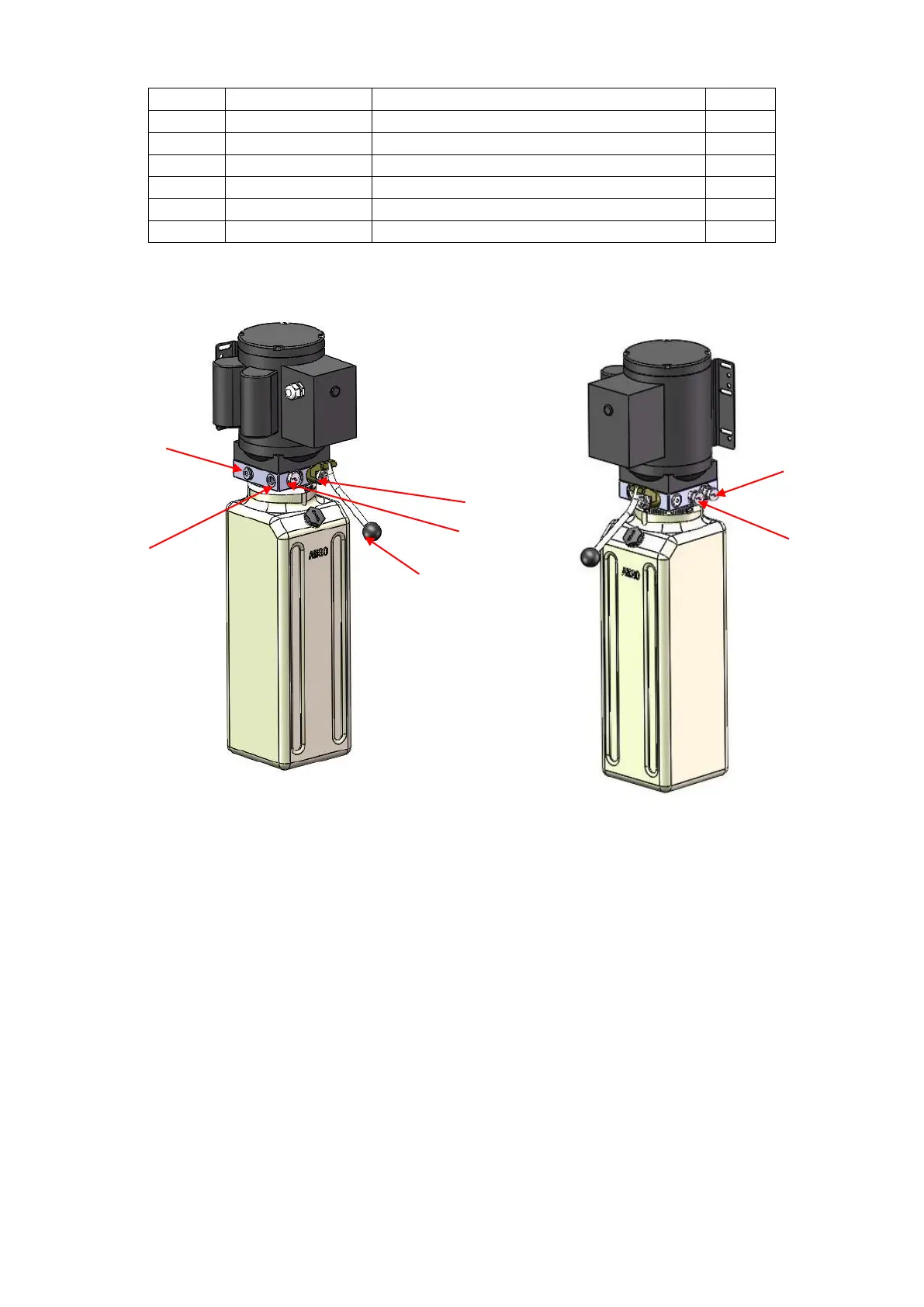

Illustration of hydraulic valve for hydraulic power unit
Fig. 47
Check valve
Oil outlet
Oil return port
Release valve
Handle for
relief valve
Relief
valve
Throttle
valve
