Peak 209C - Position Columns

9

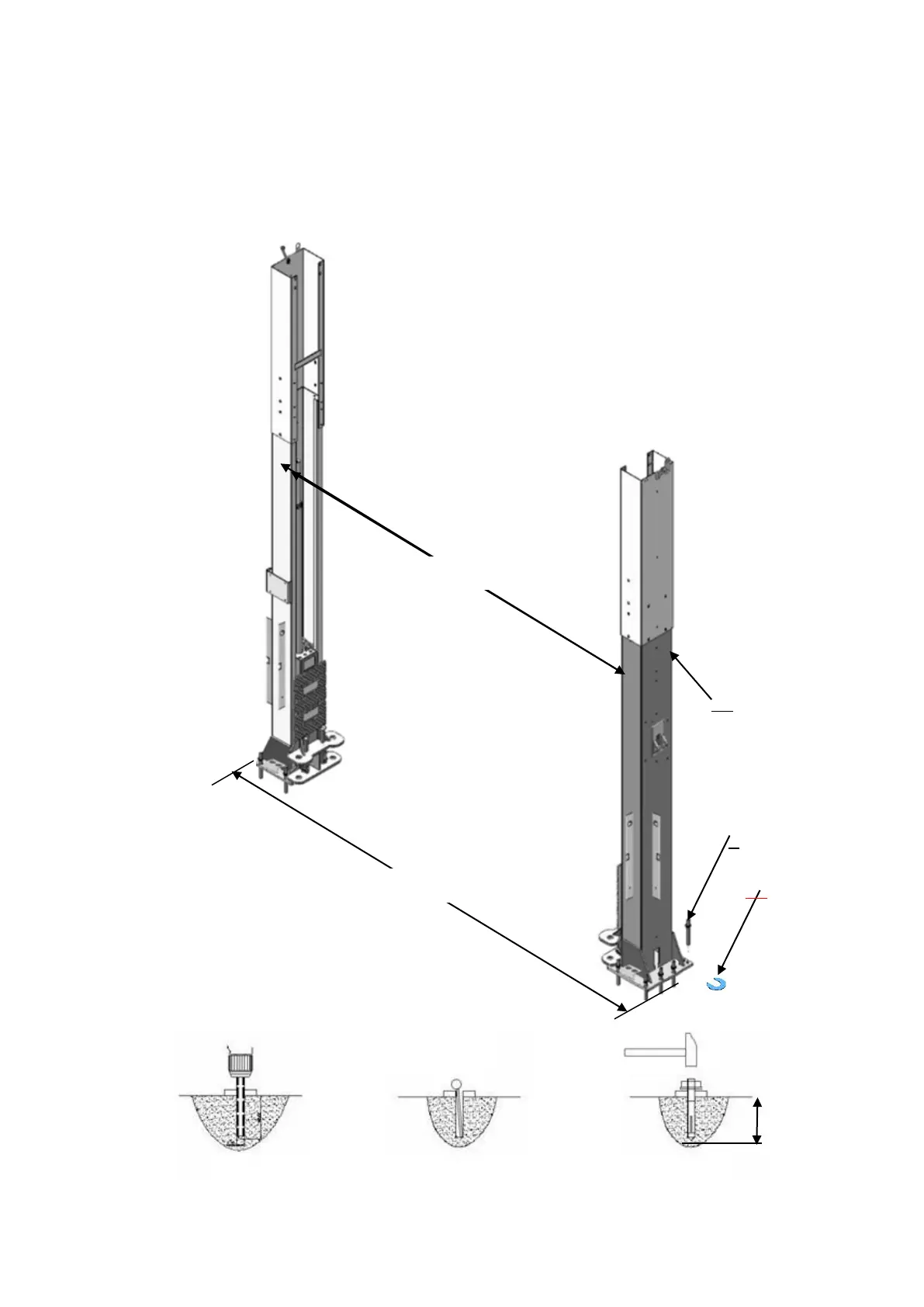

F. Position columns (See Fig. 16)
Position the columns on the installation layout of base-plate, Install the anchor bolts.
Check the Columns plumpness with level bar, and adjusting with the shims if the
columns are not vertical. Do not tighten the Anchor Bolts.
Fig. 16
Drilling
Cleaning
Bolting
110m m
Note: Minimum embedment of anchors is 100mm.
3428mm
2850mm
78
2
94
