12
Connect the brown wire to
the terminal 12# on limit
switch and terminal 4# on
control button.
Connect the blue wire to terminal
11# on limit switch and terminal
A1 on AC contactor of power unit
Connect the yellow and
green wire to the earth wire
terminal on limit switch and
the earth wire terminal of
power unit.

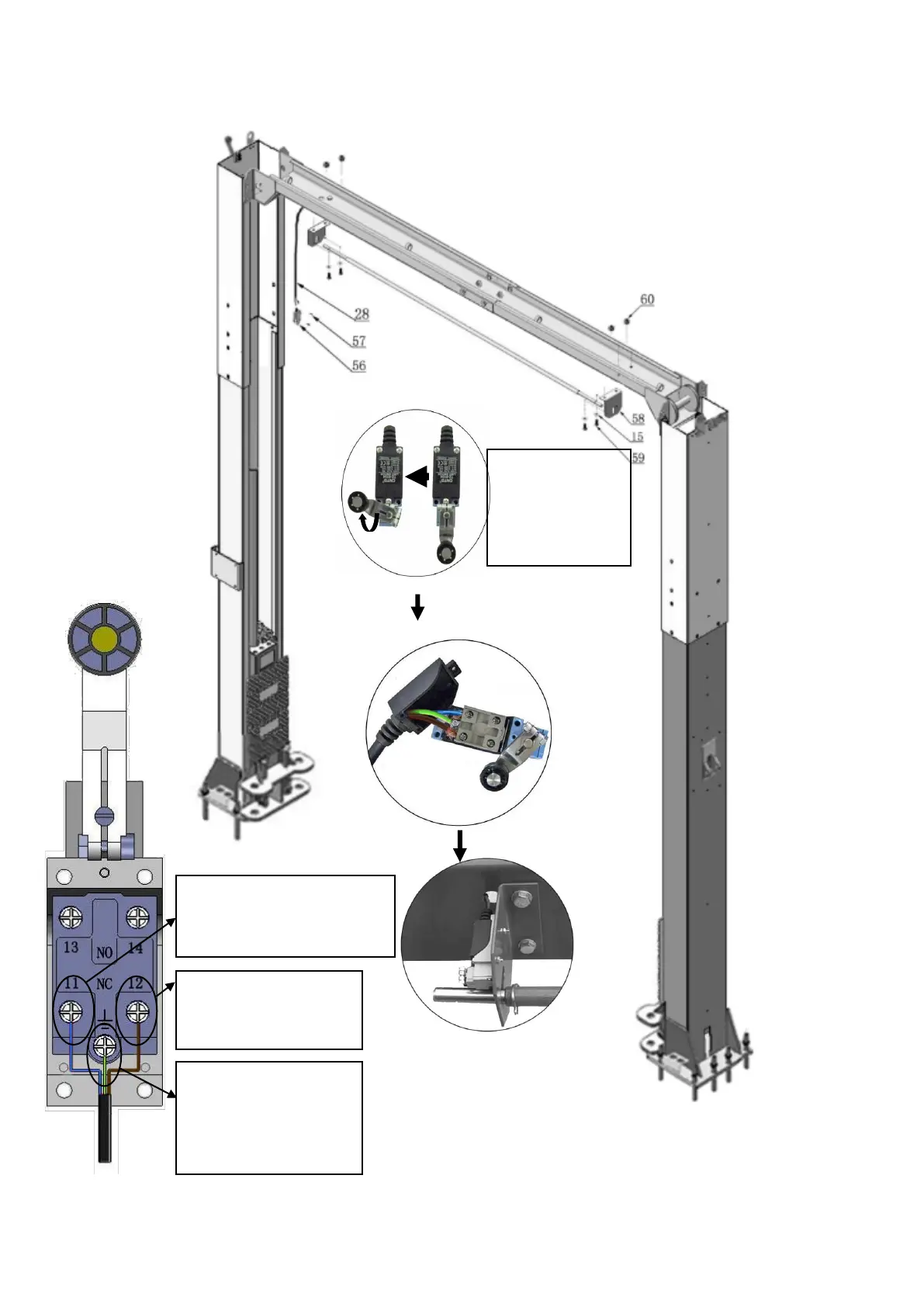

H. Installing the limit switch control bar and limit switch (See Fig. 19).
Fig. 19
NC: Normal contact
Loosen screw of
drive rod for
adjustment,
tighten the
screw after
adjustment
Adjust drive rod of limit
switch
Limit switch
connected
with cable
