D. Position power side column
Lay down two columns on the installation site parallel, position the power side
column according to the actual installation site. Usually, it is suggested to install
power side column on the front-right side from which vehicles are driven to the lift
(See Fig. 15).
E. Connecting oil hose
Push the carriages, connecting the cylinder fittings and then connect the oil hose to
the cylinder.

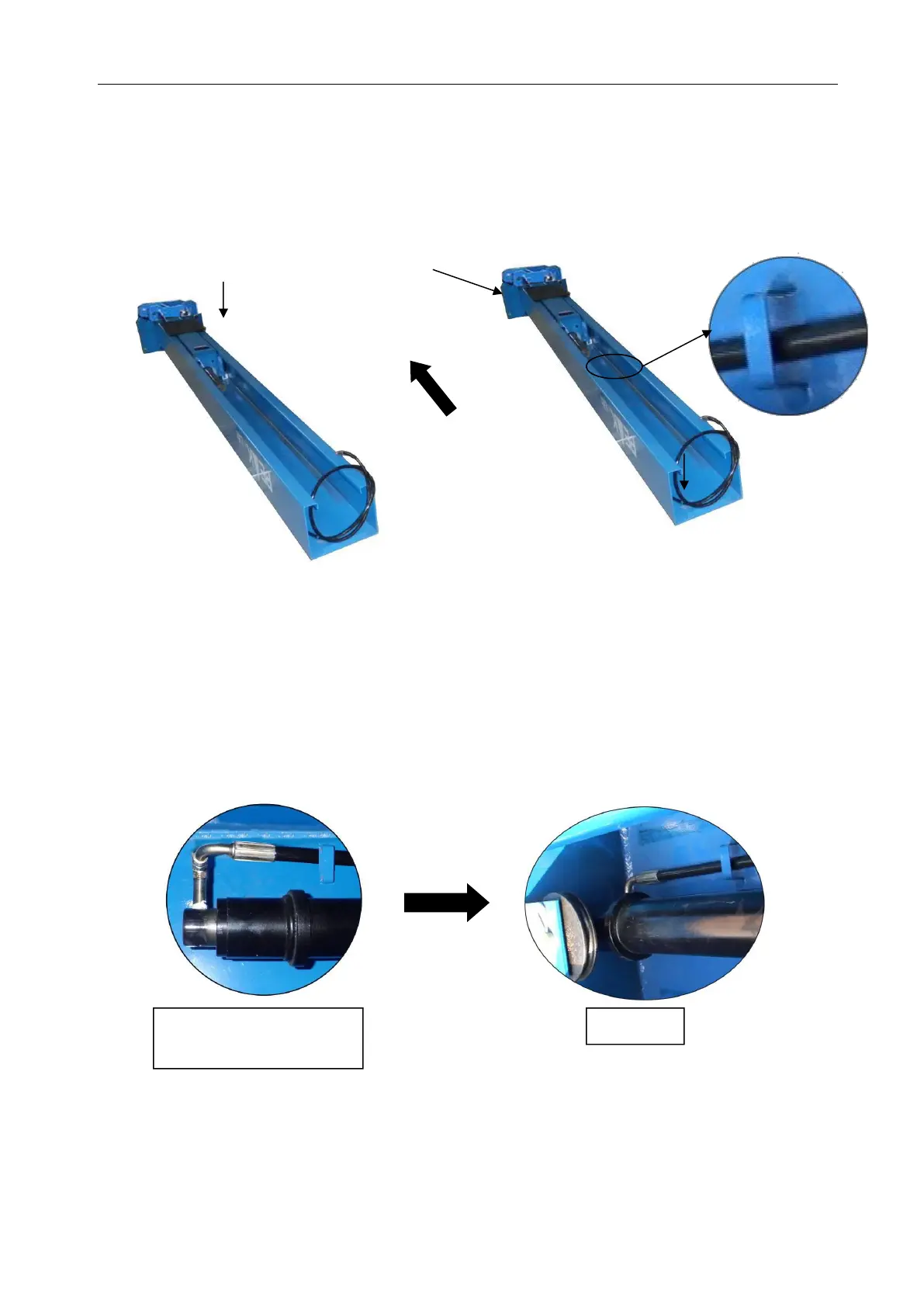

Oil hose passes through the
retainer on column
Install cylinder fittings
and oil hose
