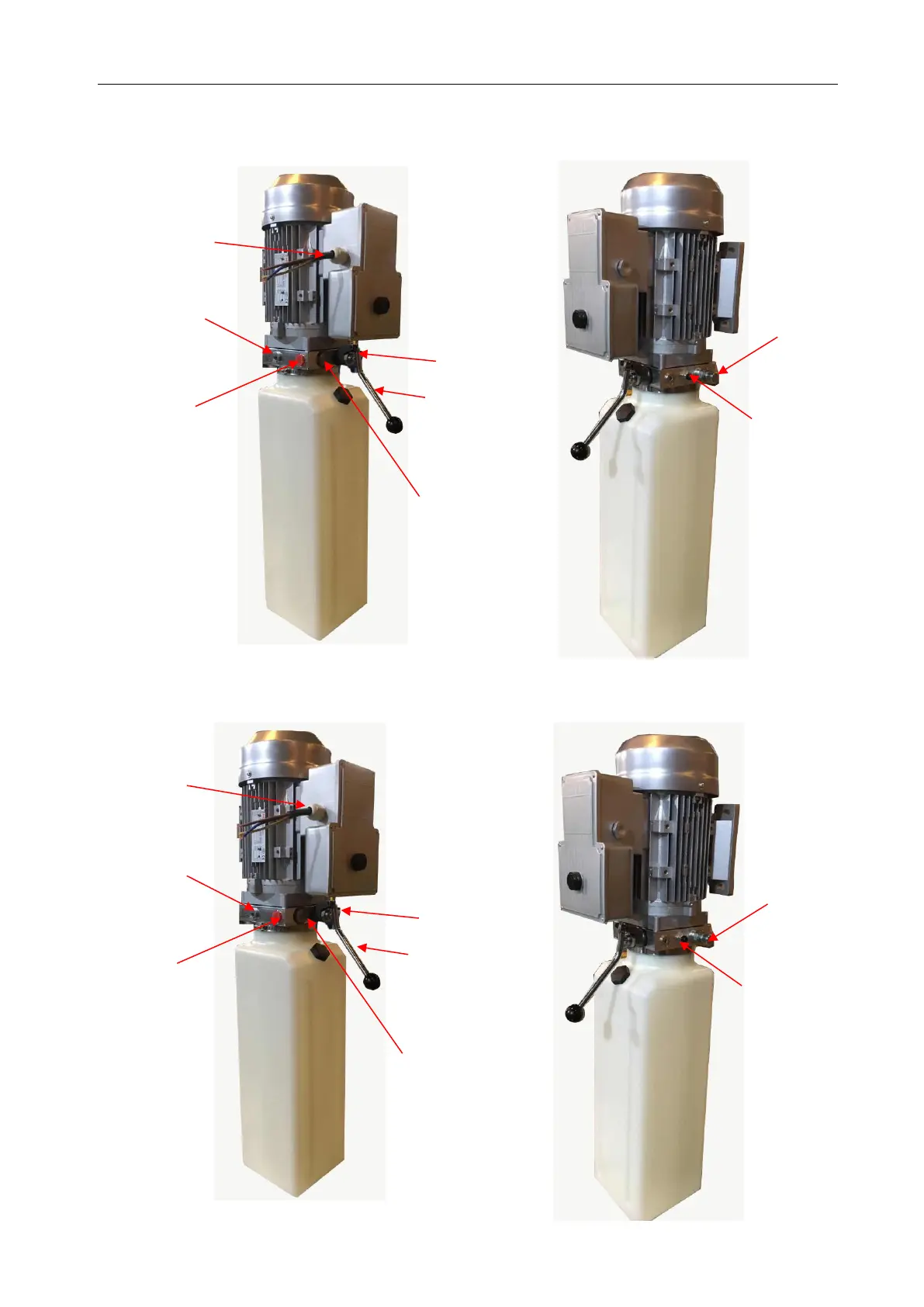

Illustration of hydraulic valve for hydraulic power unit
Manual power unit, 220V/50HZ, Single phase (See Fig. 40)
Manual power unit, 380V/50HZ, 3 phases (See Fig. 41)
Oil return port
Fig. 40
Oil Outlet
Relief valve
Fig. 41
Relief valve
Throttle valve
Running capacitor
Check valve
Release valve
Handle for Release
valve
Throttle valve
Check valve
Handle of release
valve
Release valve
Oil outlet
Oil return port
Running capacitor
