Peak 210C - Install the Limit Switch Control Bar and Limit Switch

12
K.

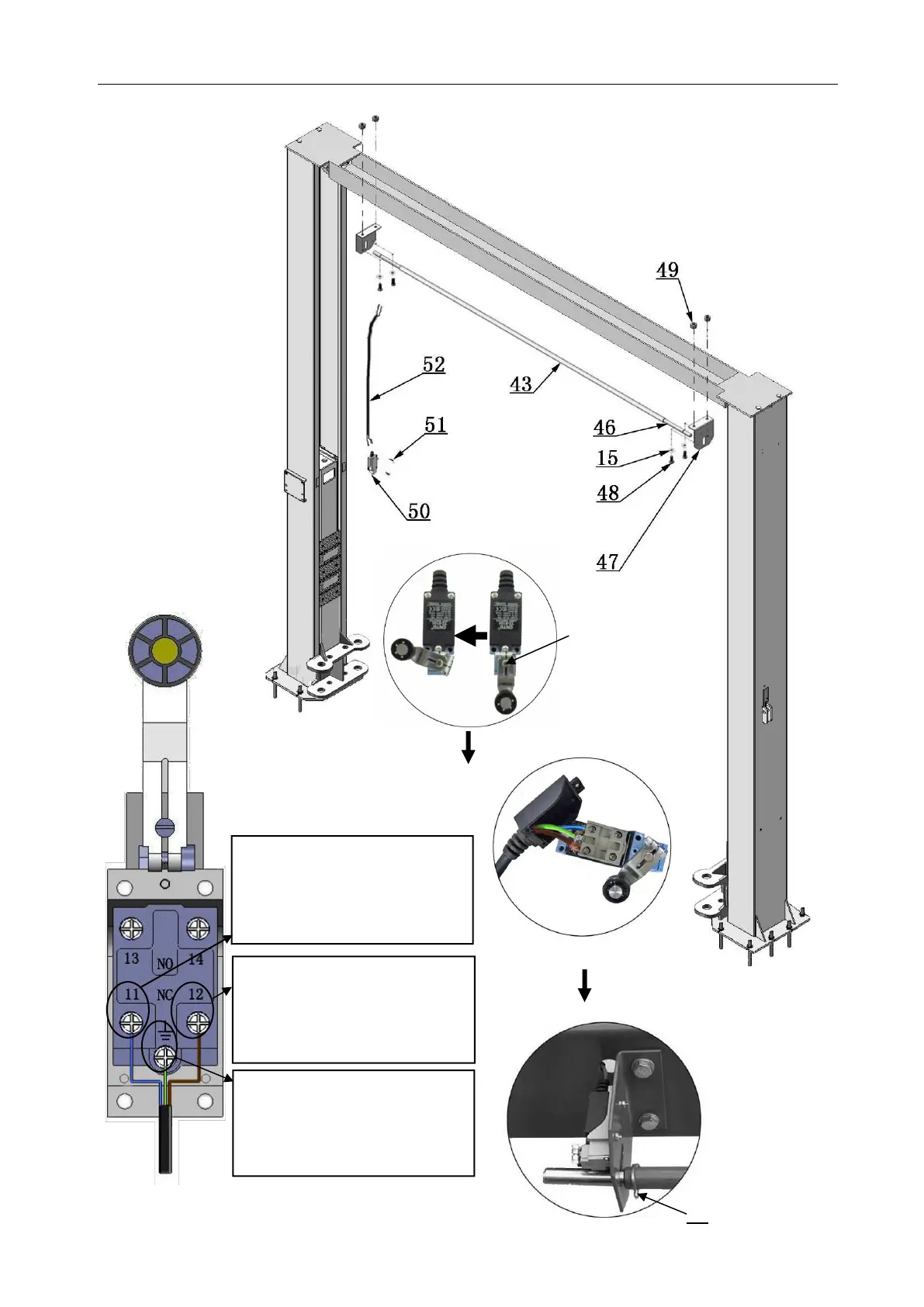

Install the limit switch control bar and limit switch (See Fig. 22).
NC: Normal contact
Fig. 22
Use 3# Socket Head
Wrench to loosen the
Screw of drive rod
for adjustment
Adjust Drive Rod
of Limit Switch
Limit switch is connected
with cable
Connect the blue wire to
terminal #11 on limit switch
and terminal A1 on AC
contactor of power unit.
Connect the brown wire to
terminal #12 on limit switch
and terminal #4 on button of
power unit
Connect the yellow and green
wire to earth wire terminal on
limit switch and earth wire
terminal of power unit
44
