H. Position columns
Position the columns on the installation layout of base plate. Install the anchor bolts.

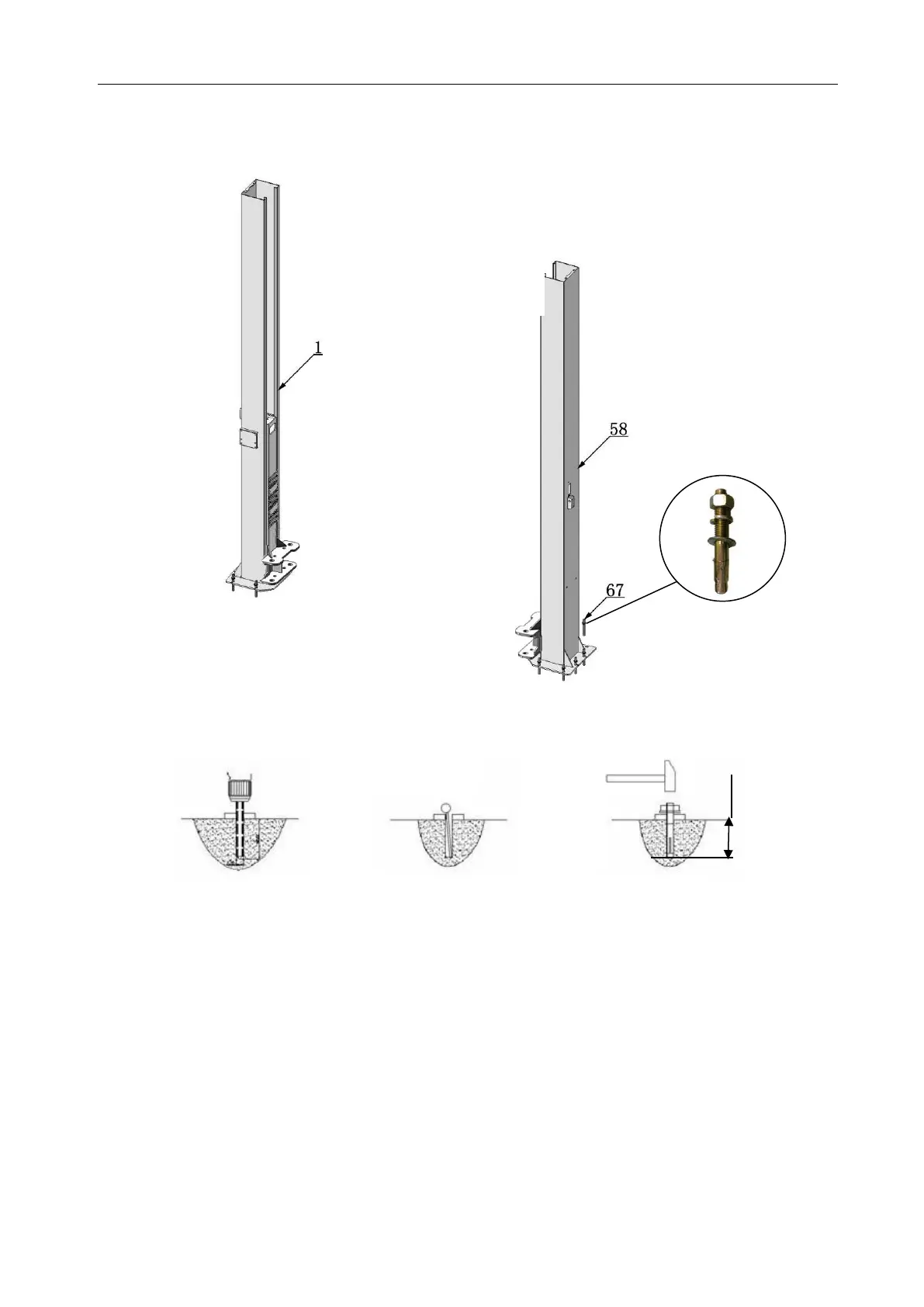

Do not tighten the anchor bolts (See Fig.19).
Anchor Bolt
Width between columns
of 210C：2850mm
Width between columns
of 210CX：3000mm
Fig. 19
Cleaning
Bolting
Drilling
90mm
Note: Minimum embedment of
anchors is 90mm.
