Peak 409A - Page 10

8

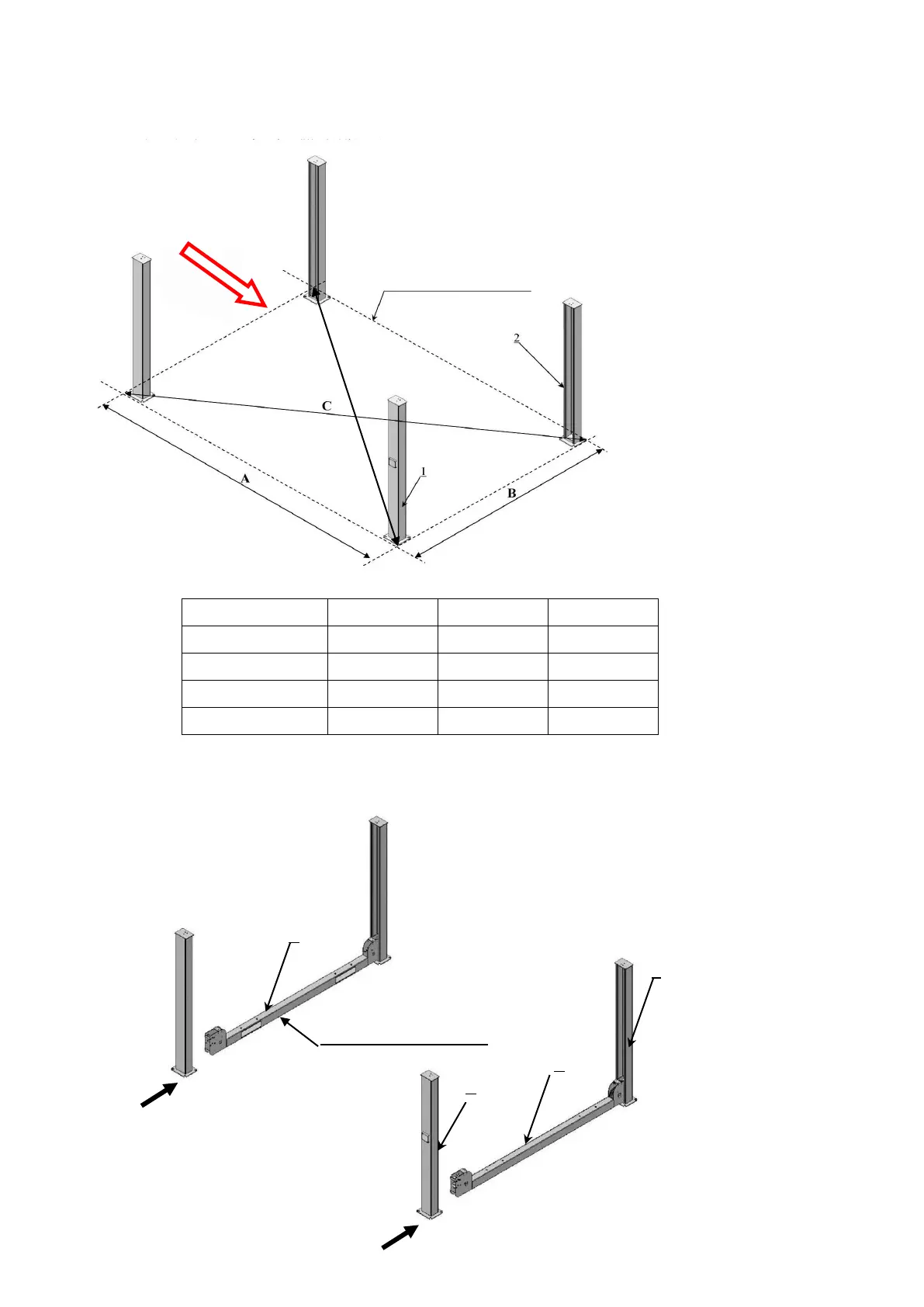

C. Use a carpenter’s chalk line to establish installation layout as per Table 1
Make sure the size is right and base is flat (see Fig. 15).
Note: Reserve space front and behind the installation site.
D. Install cross beams (See Fig. 15).
A
B
C
409, 409A
4600mm
3208mm
5608mm
410, 410A
4998mm
3356mm
6020mm
412, 412A
5100mm
3208mm
6025mm
412AX
5100mm
3356mm
6105mm
3
1
3
Car in Direction
Use a carpenter’s chalk line to
establish installation layout
Hole towards inside
2
Fig. 16
Fig. 15
