Peak 409A - Install Air-Line System

18
M. Install air-line system

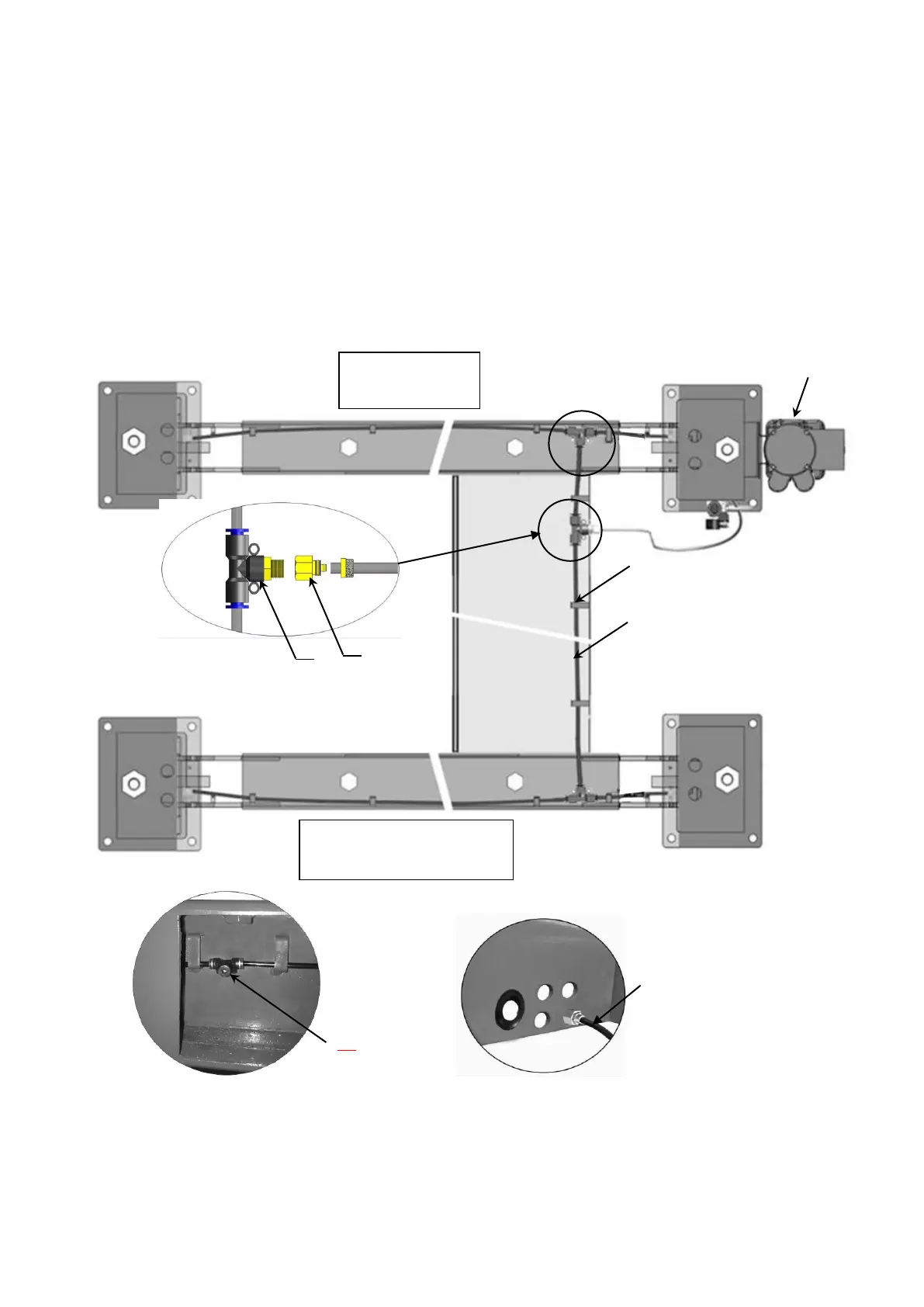

1. Connecting front and rear Cross Beam cylinders by using 6*4 black air pipe. (the
actual length of air line can be cut by user) (See Fig.40)
2, Cut the 6*4 black air pipe by scissor between two retainers, then connect the air line
with T fitting. (See Fig. 41).
3. Connecting the solenoid valve using 6*4 black air pipe (the actual length of air line
can be cut by user) (See Fig. 42).
Rear
Cross Beam
Front
Cross Beam
Power-side
platform
Air pipe through
retainer
air pipe
Power unit
K
L
89
90
Power-side platform air pipe
connect with T fitting
6*4 black air pipe
connect the solenoid
valve
Fig.40
L view
Fig.42
K view
Fig.41
88
