Q: Illustration of installing the optional air line kits
1. Install air line kit

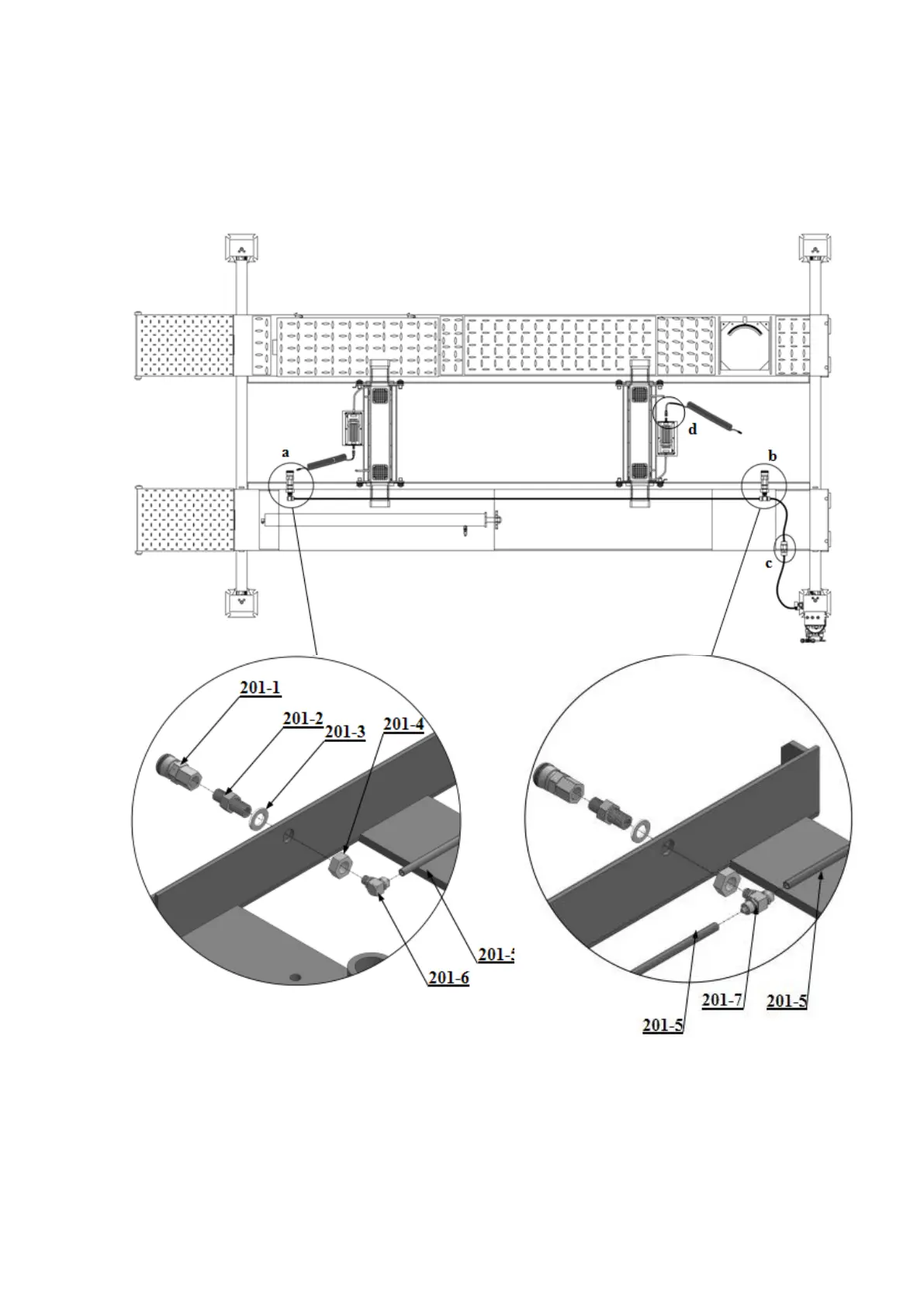

a. Connect the air line fittings with 8*6 black air line (The length of air line can be cut
accordingly) (Fig.58)
View b
View a
Fig. 58
