Peak 409A - Illustration for Cable Installation

13
J. Illustration for cable installation

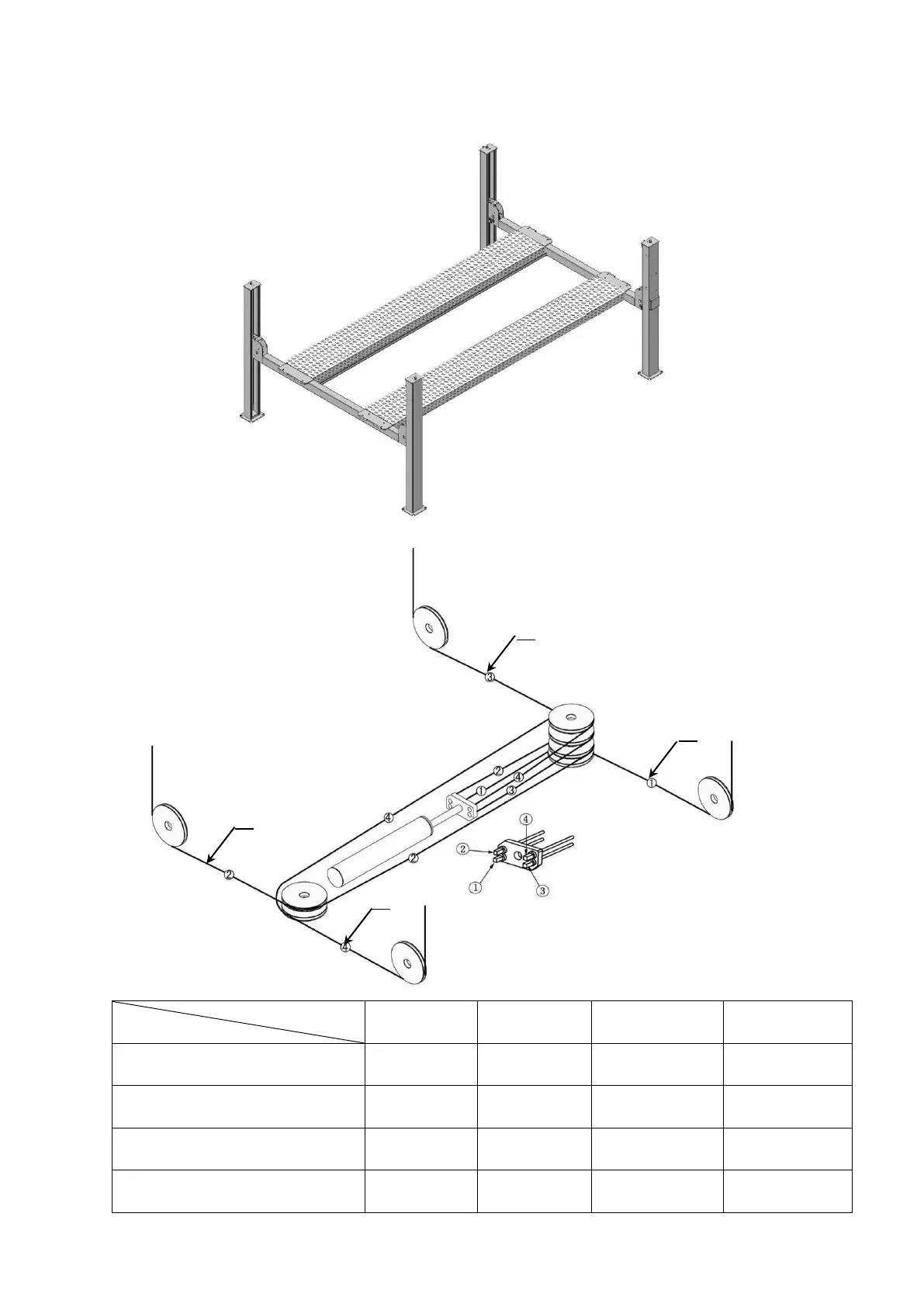

1. Pass through the cables from the platform to the columns according to the number of
the cables (See Fig. 27).
No.
Model



④
409/409A Length
(inc. connecting fitting)
3250mm
9250mm
4850mm
7654mm
410/410A Length
(inc. connecting fitting)
3725mm
10125mm
5325mm
8520mm
412/412A Length
(inc. connecting fitting)
3775mm
10325mm
5380mm
8710mm
412AX Length
(inc. connecting fitting)
3850mm
10400mm
5455mm
8785mm
Fig. 27
A
C
D
B
C
A
B
D
72
70
71
73
