Peak 409A - Install Hydraulic System

17
6*4 Black Air
Line

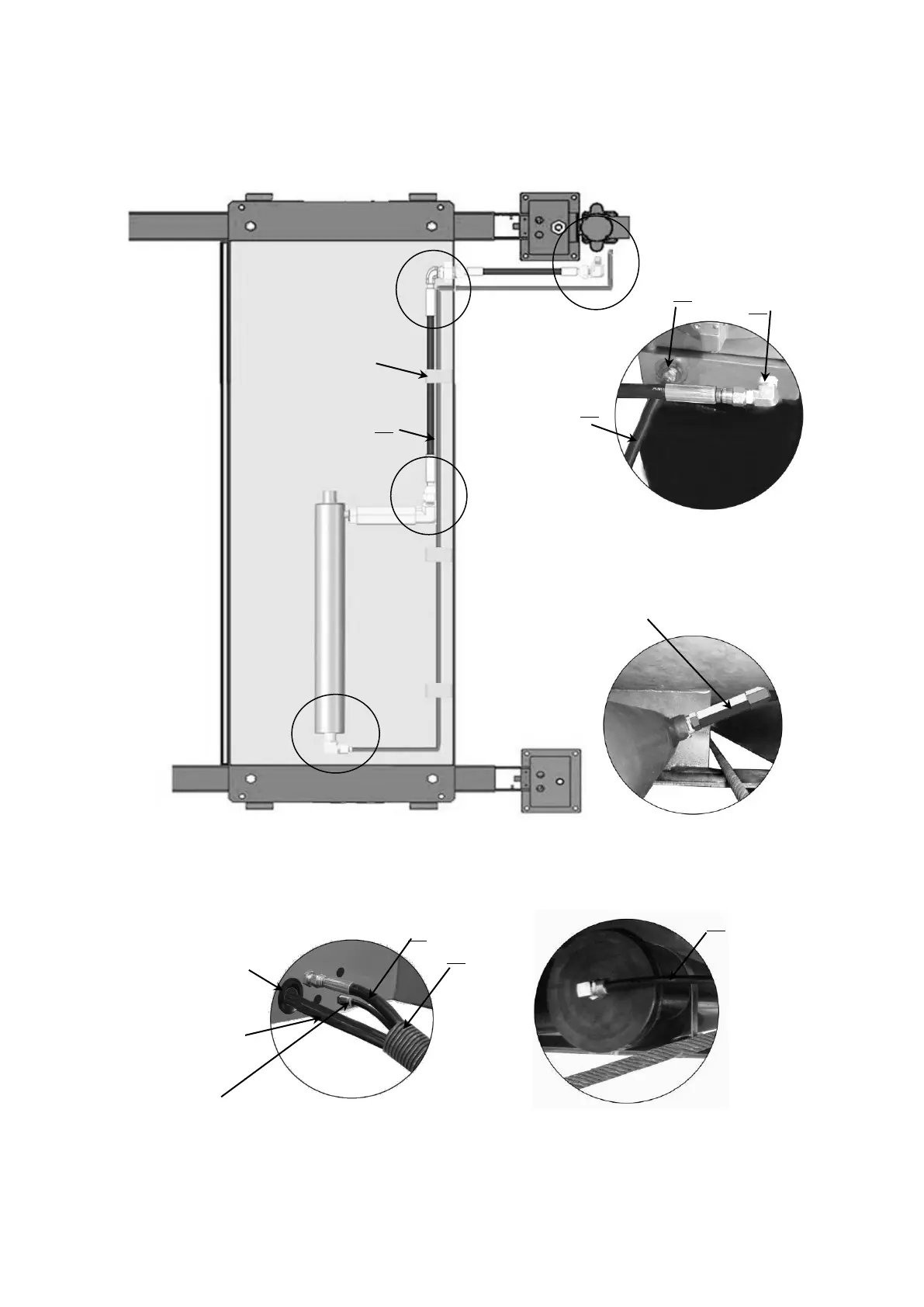

L. Install hydraulic system (See Fig. 36).
Note: Oil hoses and oil return pipe connected to oil cylinder must be passed above the
cable and cylinder inlet port must swing upward to avoid the oil hose and
View H
Fig.38
76
Oil Hose & Air
lines pass
through
retainer
Swing up the fitting of cylinder
Installation of return Hose and inlet Hose
View G
Fig.36
H
G
I
J
Protective Ring
79
80
84
Wire of cross
beam limit switch
and oil return
hose come from
this hole
Install Oil return hose
of cylinder.
View J
Fig.39
84
78
63
View I
Fig.37
