Peak 409A - Install Hydraulic, Air, and Electrical Systems

16
K. Install oil-water separator, solenoid air valve, control box and power unit.
1．For electric control air-operated four post lift (See Fig. 34 & 35).
Item
Part No.
Description
QTY
20
10420145
Oil-water Separator
1
21
10420146
Straight Fitting for Air Line
1
22
10209009
Cup Head Bolt
6
23
10420076
90
0
Fitting for Air Line
1
24
10201034
Bleeding Plug
1
25
10420147
Straight Fitting for Air Line
1
26
10420077
Air Solenoid Valve
1
27
10420148
Washer
2
28
10420149
Cup Head Bolt
2
29
11420150
Cover of Air Solenoid Valve
1
30
10420045
Washer
28
31
10420151
Straight Fitting for Air Line
1
32
10420018
Self locking Nut
6
33
10420016
Control Box
1
34
10420153
Cup Head Bolt
9
35
81523001/81523002
Electrical Power Unit
1
1
20
21
31
33
22
23
24
25
26
27
28
29
32
30
22
34
35

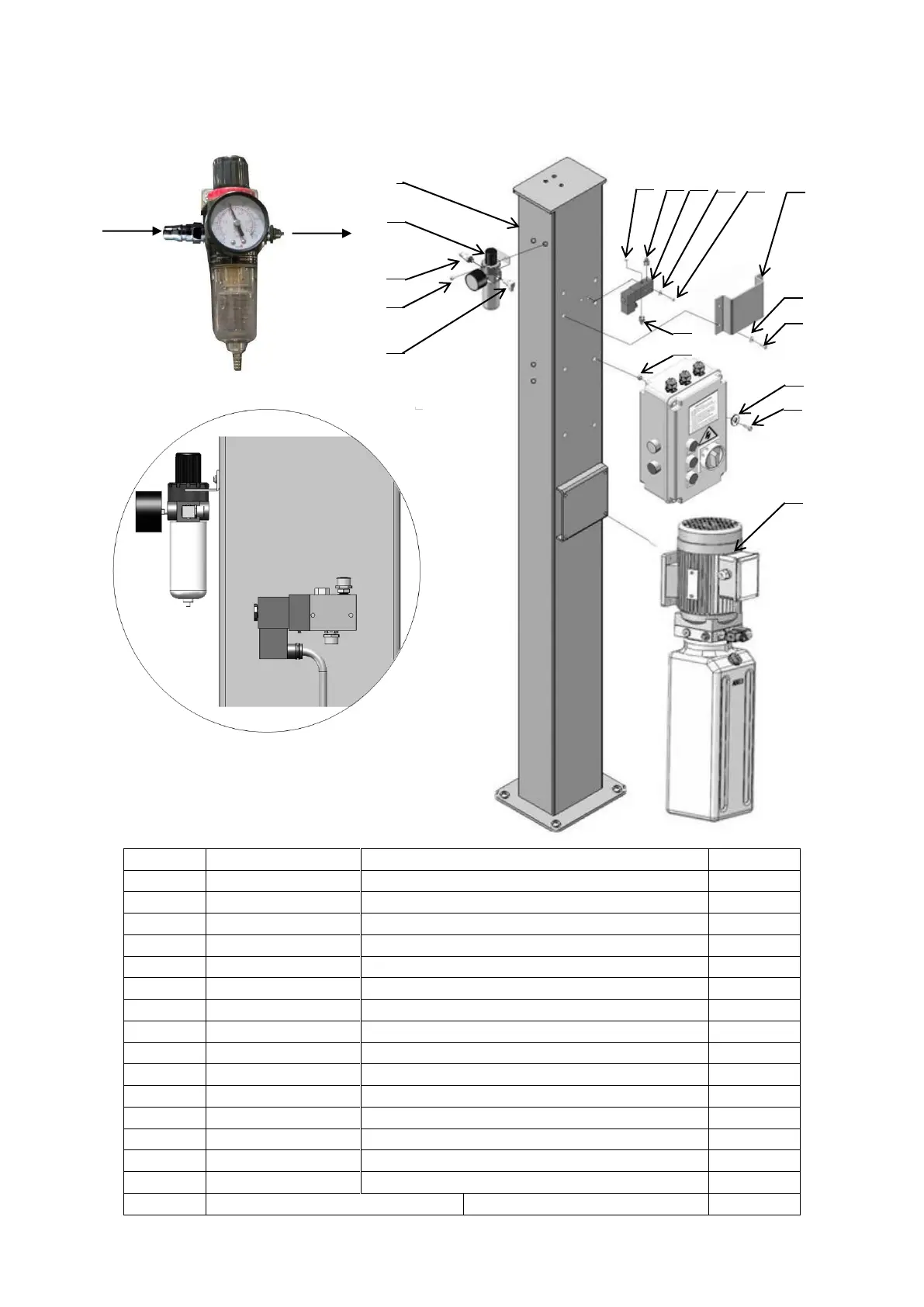

Oil-water separator and Air Solenoid Valve
Fig. 34
Air outlet
Air inlet
Oil-water separator air flow direction
Fig. 35
