H. Install power-side platform.

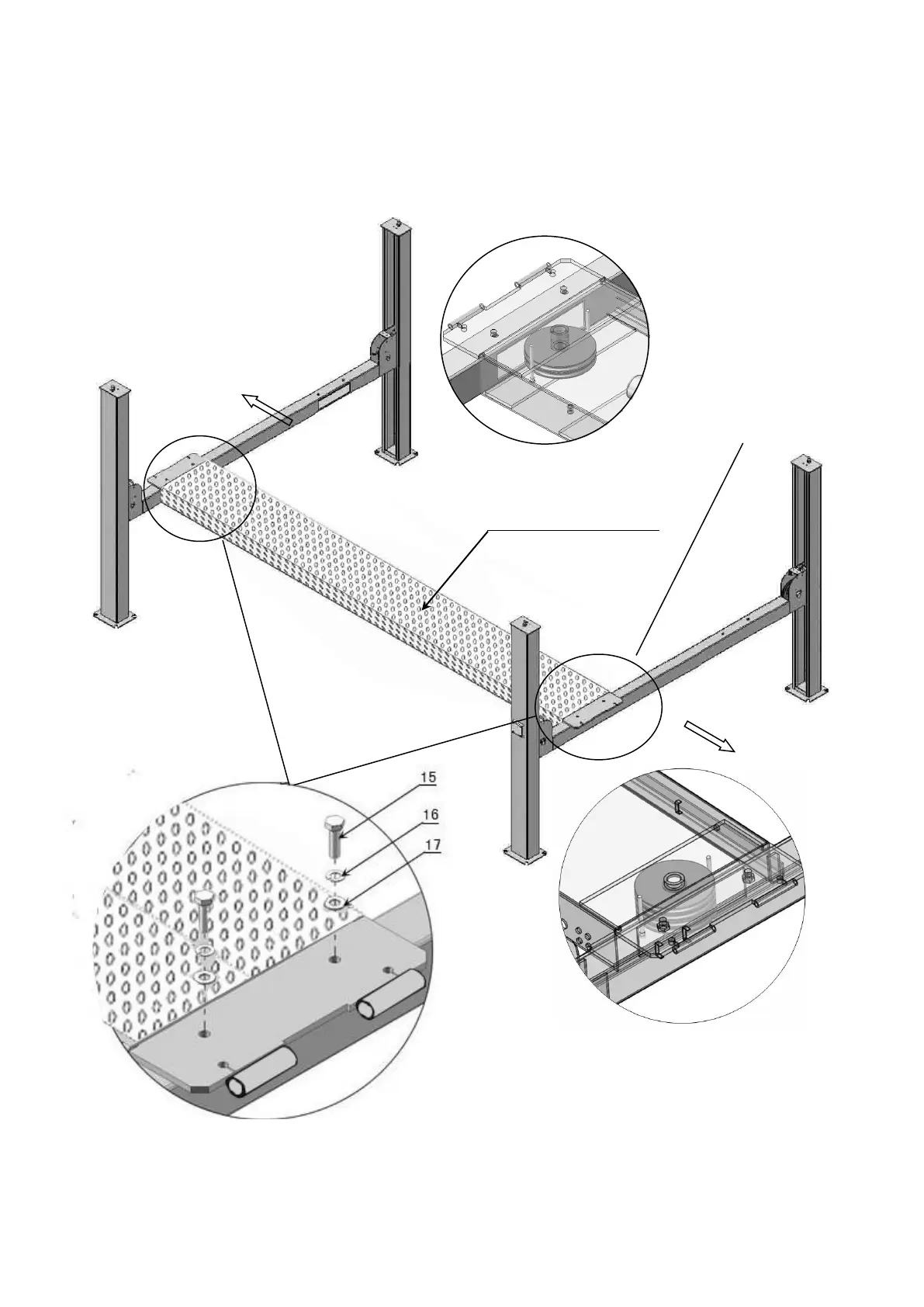

Put the power-side platform upon the cross beams by fork lift or manual, offset the cross
beams to the outside till the pulleys of both platforms can set up into the cross beams
(See Fig.22 23). Install the power-side platform and screw up the bolts (Fig 24).
Fig. 23
2 Pulleys installation
View A
Offset the cross beam lean
outward when putting the
power-side platform on the
cross beams
Power-side Platform
4 Pulleys installation
View B
A
B
Fig. 22
Tighten the power-side platform
and cross beam with bolts M16*40
Fig. 24
