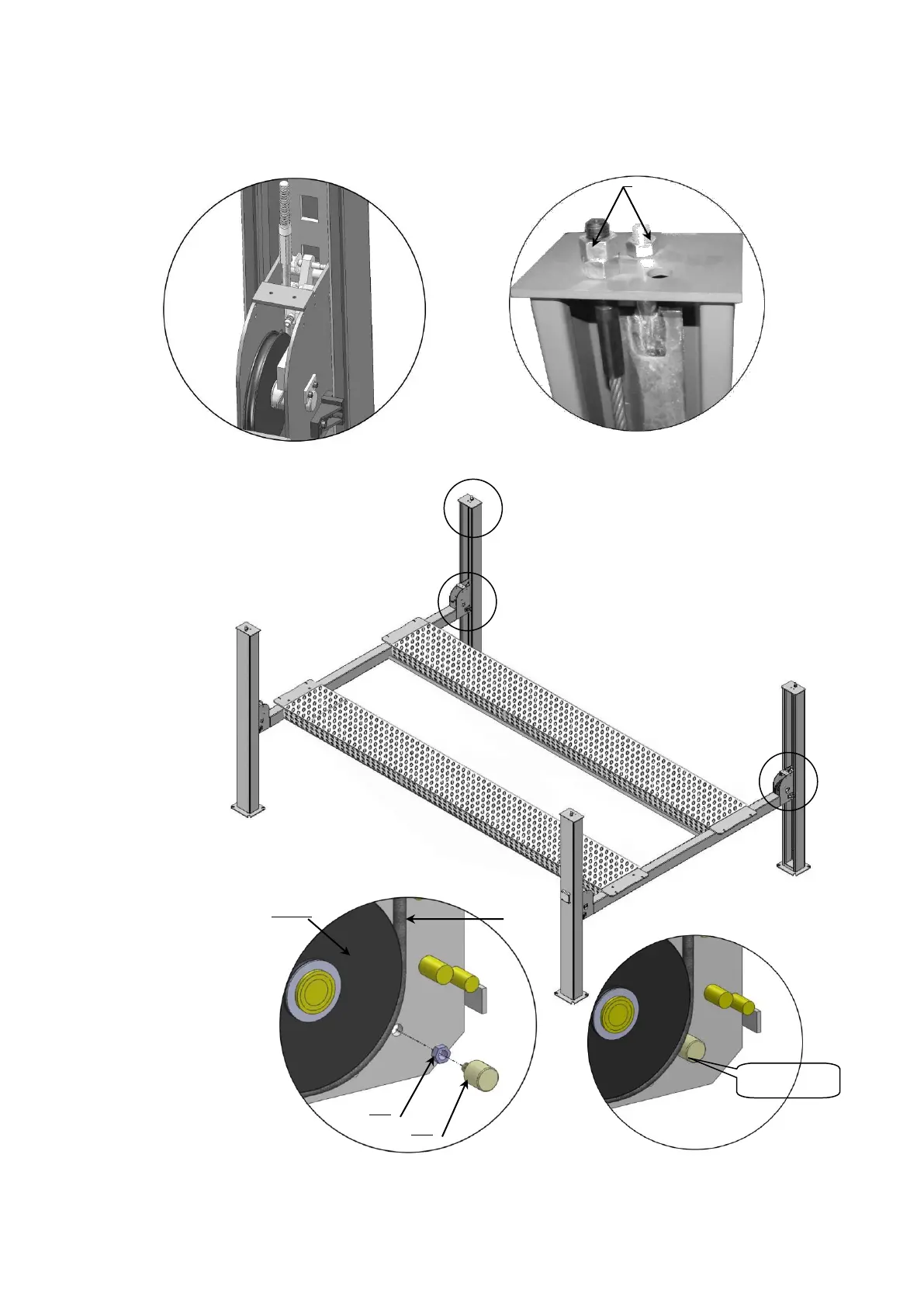

2. The cable pass through the cross beam to top plate of columns and be screwed with
cable nuts.(See fig 28, 29) Installation for Cable limit Pin on cross beam (See Fig. 24).
Cable pass through between the
big pulley and tension pulley
View D
Fig.28
Cable pass through top plate
and be screwed with cable nuts.
View E
Fig.29
7
D
E
Limit Pin
Install Limit Pin
60
B
Pulle
y
60
A
View F
Fig 30
Cable
After Installation
F
