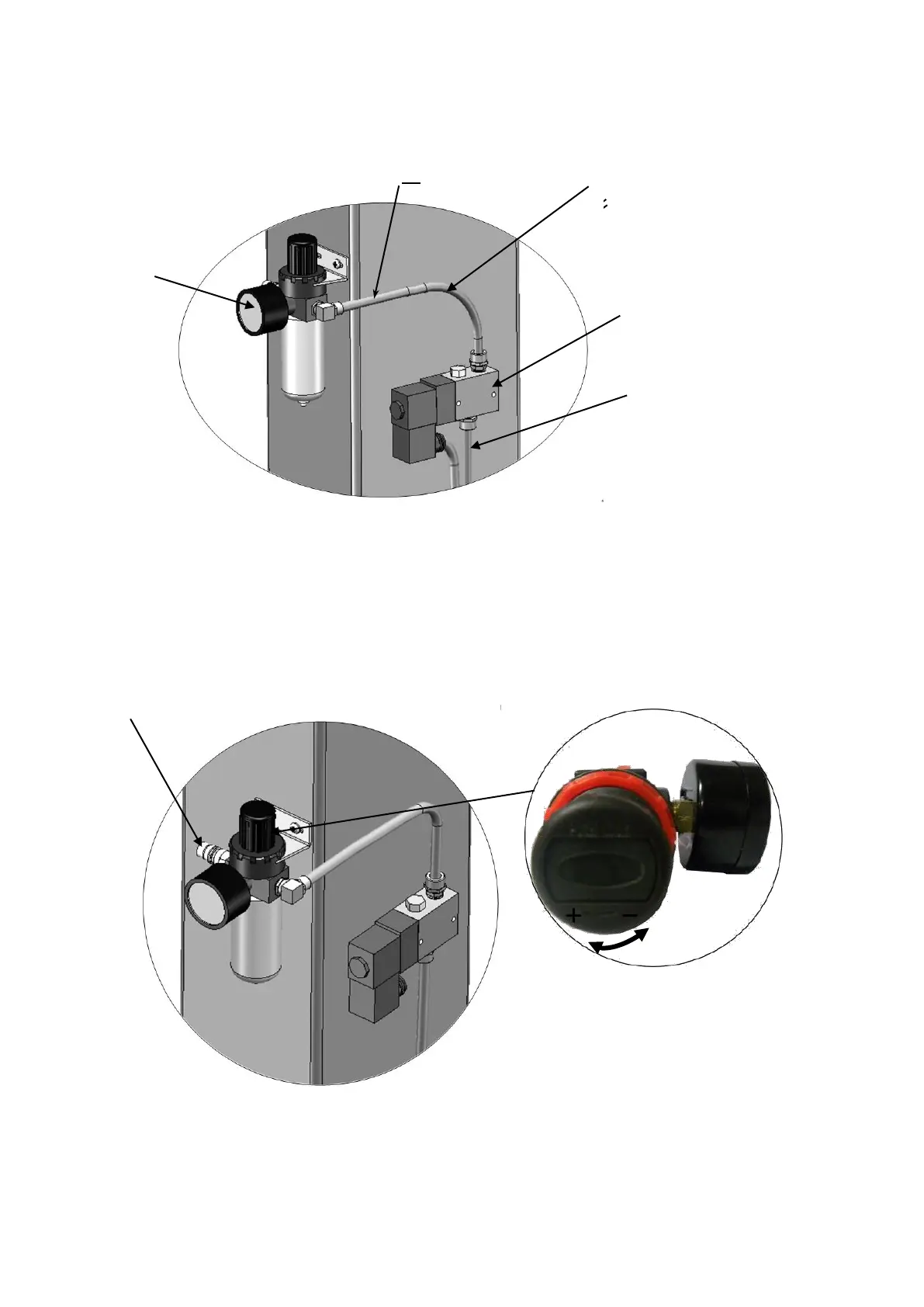

4. Connecting Oil-water separator and Air solenoid valve using air line (See Fig. 43).
5. Connecting air inlet (Air supply pressure 5kg/cm
2
- 8kg/cm
2
), adjusting the air
pressure of Oil-water separator to 0.8 MPa (See Fig.44).
Connecting Oil-water
separator and Air solenoid
valve using black air line
￠8×￠6×180mm
Oil-water
separator
Air solenoid
valve
Fig. 43
air line ￠6×￠4
Fig. 44
Clockwise to increase
the air pressure
Counter-clockwise to reduce
the air pressure
Adjusting the air pressure to
0.8MPa
Connecting air inlet
