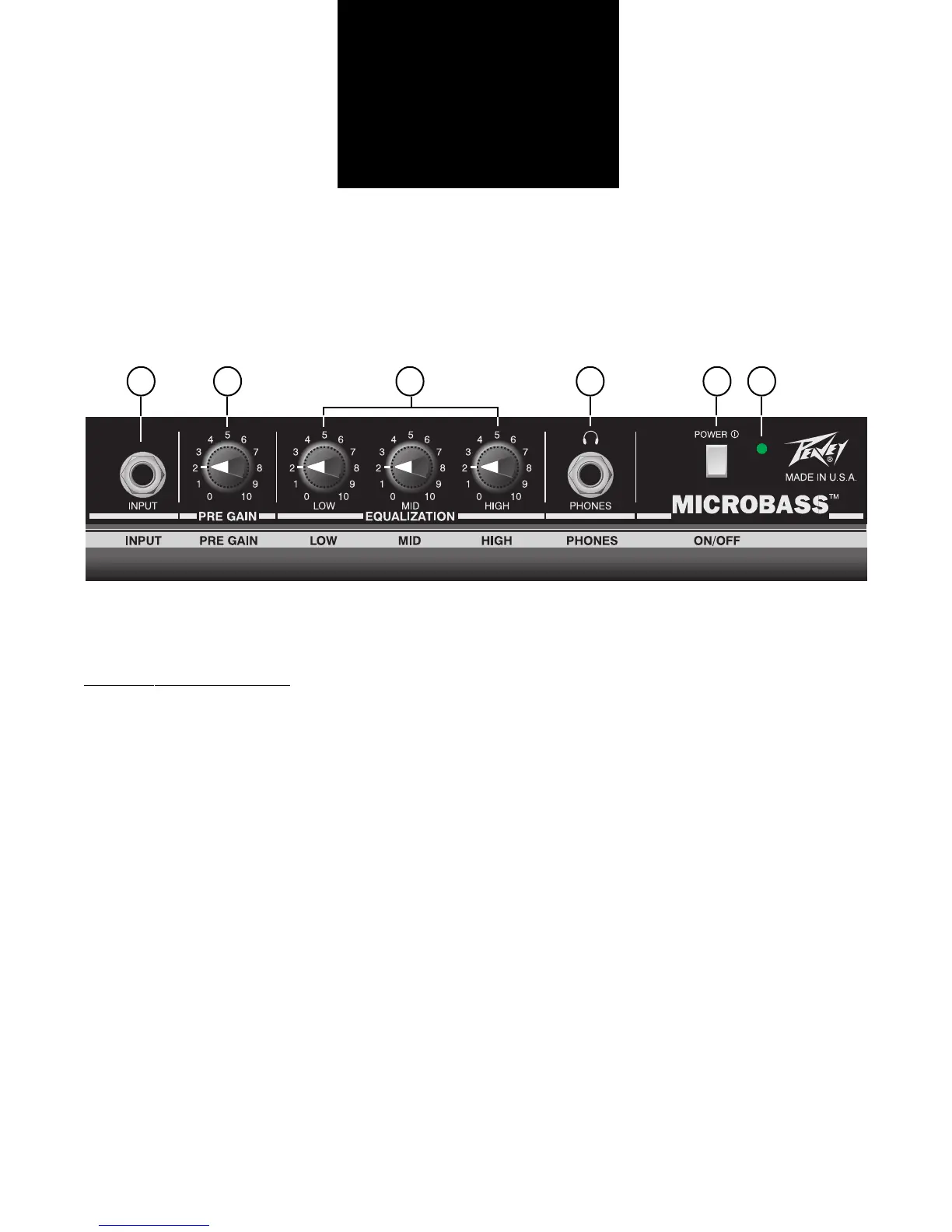

FRONT PANEL FEATURES
INPUT (1)
The input jack will accept signals from all types of guitar pickups. Be sure to use a high-quality shielded
cable to connect the guitar to the amplifier.
PRE GAIN (2)
Controls the overall volume level of the system.
LOW, MID, & HIGH EQ (3)
Passive tone controls that regulate the low, mid, and high frequencies.
HEADPHONE OUT (4)
This stereo jack allows the signal to flow to both sides of any stereo headset. When headphones are con-
nected to the amplifier, the internal speaker is automatically turned off.
NOTE: The headphone system will not work with headsets equipped with a mono phone plug.
POWER SWITCH (5)
Depress the switch to the "On" position. The green power LED will illuminate indicating power is being
supplied to the unit.
POWER LED (6)
Illuminates green when AC power is being supplied to the amp.
1 2 65
4
3
