Peavey MMA 835T User Manual

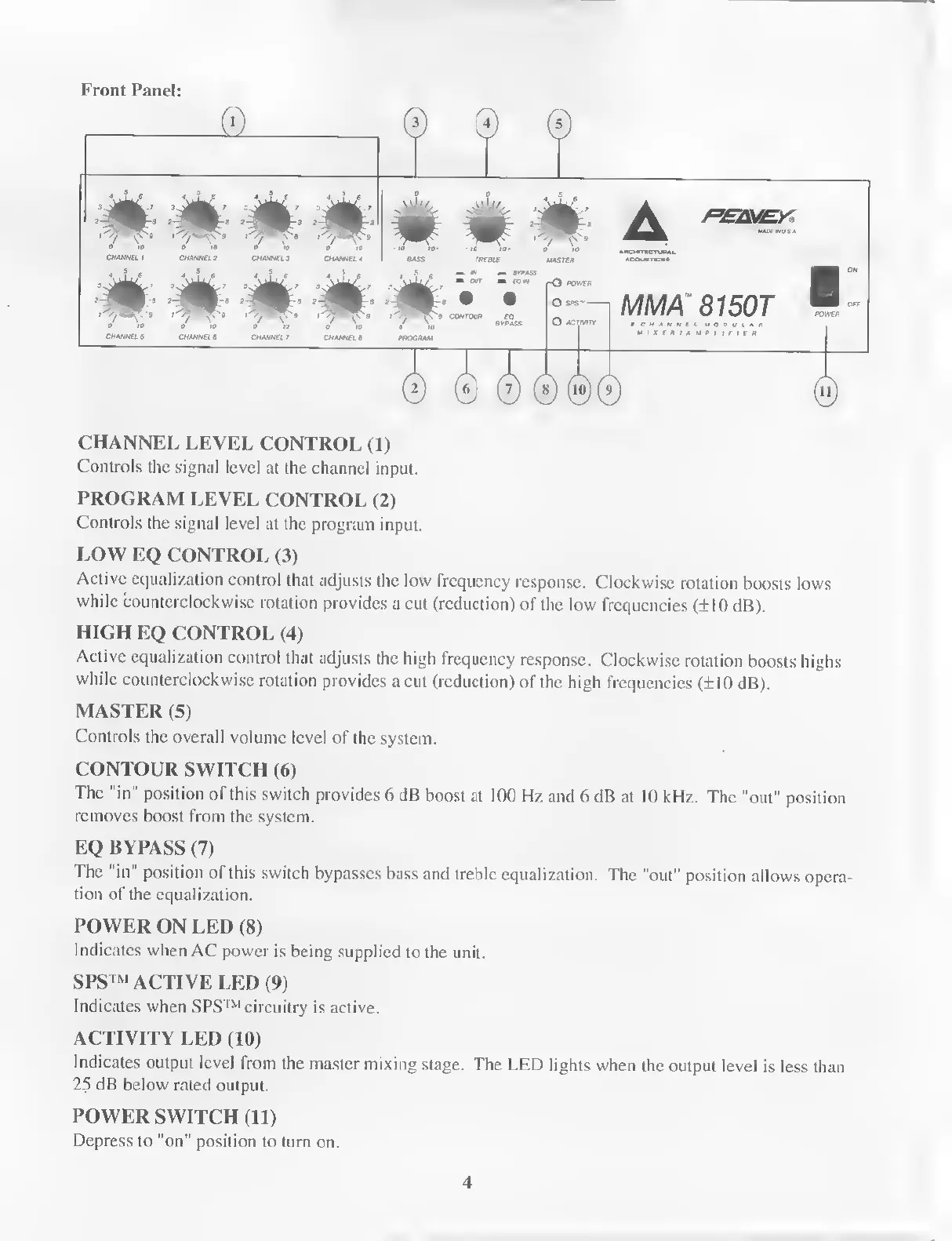

Front Panel:
_ CO
-
&
9 ' v' 9
0 10 0 10 0 10 0 /0
CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4
. S 5 . 5 S
oi'i'/c-
'^T»
-10 10* -tc 10 * 0 to
BASS TREBLE MASTER
A ^EZMEX
UADtl-USA
—CMTICTUm
Acound#
iH 0N
W W-‘ W- W‘ 'W'- ™ f
o 'to o' \o o' to o' \o o' \
CHANNELS CHANNEL 6 CHANNEL 7 CHANNELS PROGRAM
-O POWER
O sps- —
O Acnvtrt
~\ MM A 8150T W-
• CHANNEL MODULAR
U/XER/AMPL/f/ER
CHANNEL LEVEL CONTROL (1)
Controls the signal level at the channel input.
PROGRAM LEVEL CONTROL (2)
Controls the signal level at the program input.
LOW EQ CONTROL (3)
Active equalization control that adjusts the low frequency response. Clockwise rotation boosts lows
while counterclockwise rotation provides a cut (reduction) of the low frequencies (±10 dB).
HIGH EQ CONTROL (4)
Active equalization control that adjusts the high frequency response. Clockwise rotation boosts highs
while counterclockwise rotation provides a cut (reduction) of the high frequencies (±10 dB).
MASTER (5)
Controls the overall volume level of the system.
CONTOUR SWITCH (6)
The "in" position of this switch provides 6 dB boost at 100 Hz and 6 dB at 10 kHz. The "out" position
removes boost from the system.
EQ BYPASS (7)
The "in" position of this switch bypasses bass and treble equalization. The "out" position allows opera¬
tion of the equalization.
POWER ON LED (8)
Indicates when AC power is being supplied to the unit.
SPS ™ ACTIVE LED (9)
Indicates when SPS ™ circuitry is active.
ACTIVITY LED (10)
Indicates output level from the master mixing stage. The LED lights when the output level is less than
25 dB below rated output.
POWER SWITCH (11)
Depress to "on" position to turn on.
