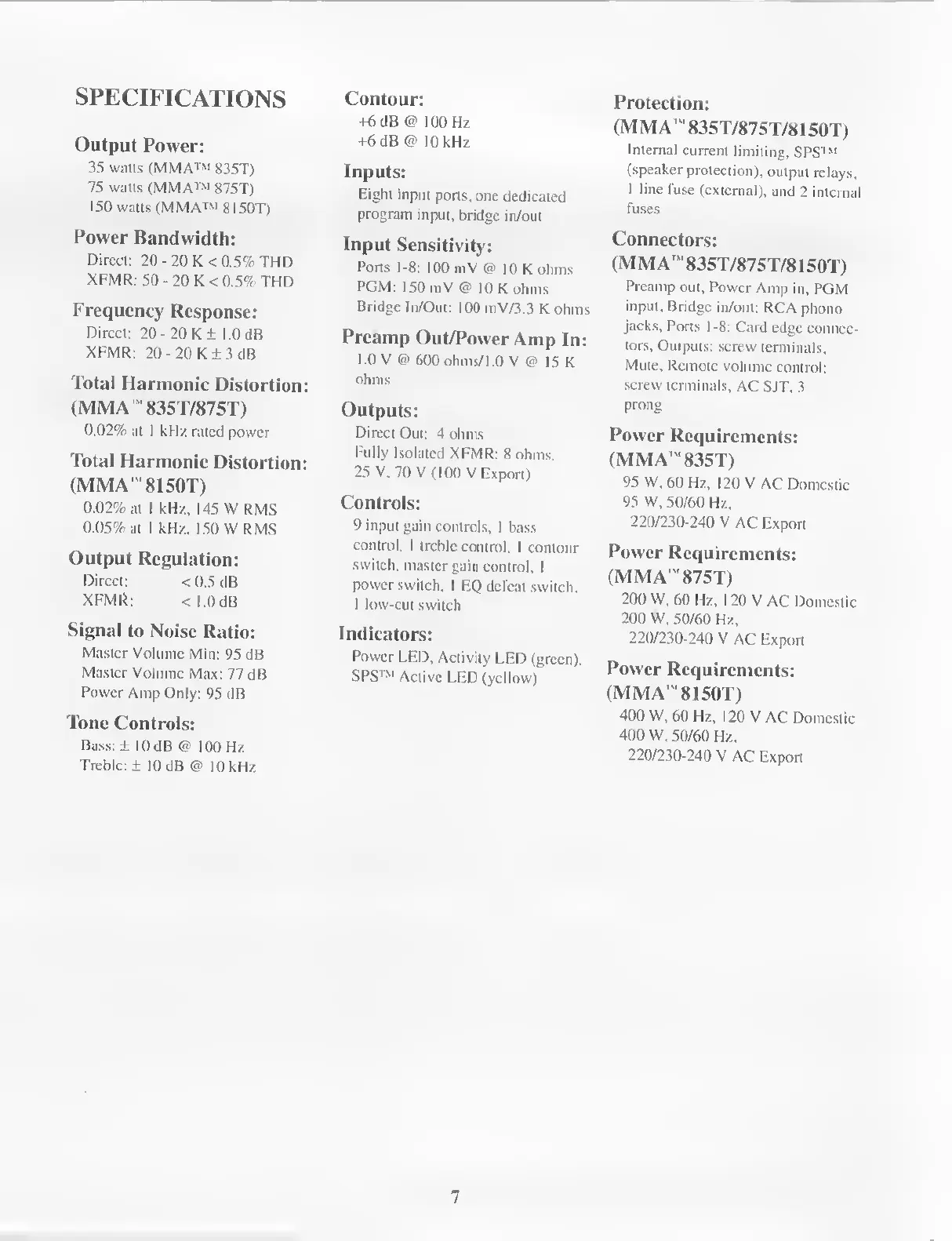

SPECIFICATIONS
Output Power:
35 watts (MMA ™ 835T)
75 watts (MMA ™ 875T)
150 watts (MMA ™ 8150T)
Power Bandwidth:
Direct: 20 - 20 K < 0.5% THD
XFMR: 50 - 20 K < 0.5% THD
Frequency Response:
Direct: 20 - 20 K ± 1.0 dB
XFMR: 20 - 20 K ± 3 dB
Total Harmonic Distortion:
(MMA ™ 835T/875T)
0.02% at I kHz rated power
Total Harmonic Distortion:
(MMA ™ 8 150T)
0.02% at I kHz, 145 W RMS
0.05% at I kHz, 150 W RMS
Output Regulation:
Direct: < 0.5 dB
XFMR: < 1.0 dB
Signal to Noise Ratio:
Master Volume Min: 95 dB
Master Volume Max: 77 dB
Power Amp Only: 95 dB
Tone Controls:
Bass: ± 10 dB @ 100 Hz
Treble: ± 10 dB @ 10 kHz
Contour:
+6 dB @ 100 Hz
+6 dB @ 10 kHz
Inputs:
Eight input ports, one dedicated
program input, bridge in/out
Input Sensitivity:
Ports 1-8: 100 mV @ 10 K ohms
PGM: 150 mV @ 10 K ohms
Bridge In/Out: 100 mV/3.3 K ohms
Preamp Out/Power Amp In:
1.0 V @ 600 ohms/1.0 V @ 15 K
ohms
Outputs:
Direct Out: 4 ohms
Fully Isolated XFMR: 8 ohms,
25 V, 70 V( 100 V Export)
Controls:
9 input gain controls, 1 bass
control, 1 treble control, I contour
switch, master gain control, 1
power switch, 1 EQ defeat switch.
I low-cut switch
Indicators:
Power LED. Activity LED (green),
SPS ™ Active LED (yellow)
Protection:
(MMA ™ 835T/875T/8150T)
Internal current limiting, SPS ™
(speaker protection), output relays,
1 line fuse (external), and 2 internal
fuses
Connectors:
(MMA ™ 835T/875T/8150T)
Preamp out. Power Amp in, PGM
input. Bridge in/out: RCA phono
jacks. Ports 1 -8: Card edge connec¬
tors, Outputs: screw terminals.
Mute, Remote volume control:
screw terminals, AC SJT. 3
prong
Power Requirements:
(MMA ™ 835T)
95 W. 60 Hz, 120 V AC Domestic
95 W, 50/60 Hz.
220/230-240 V AC Export
Power Requirements:
(MMA ™ 875T)
200 W, 60 Hz, 120 V AC Domestic
200 W. 50/60 Hz,
220/230-240 V AC Export
Power Requirements:
(MMA ™ 8150T)
400 W, 60 Hz, 120 V AC Domestic
400 W. 50/60 Hz,
220/230-240 V AC Export
7
