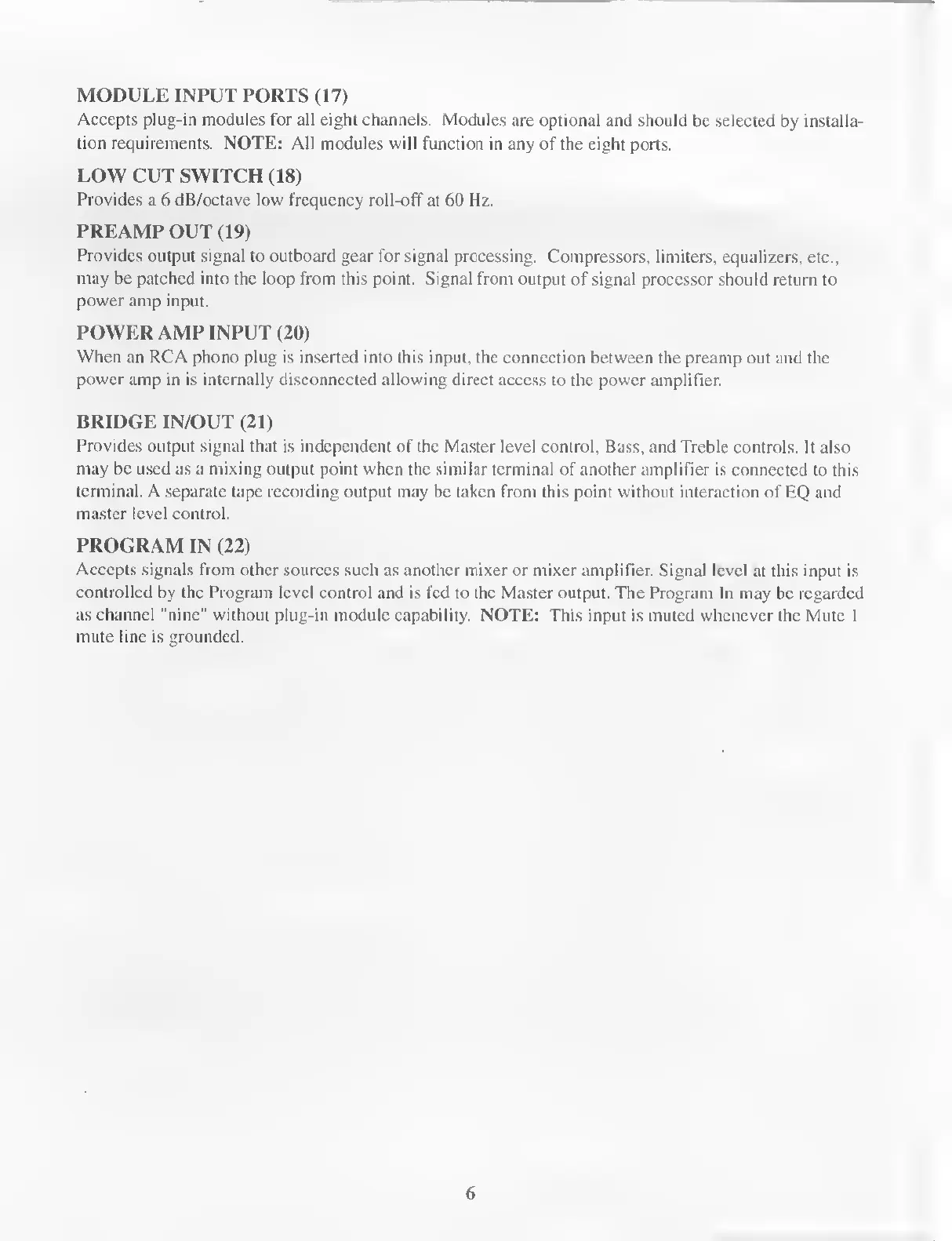

MODULE INPUT PORTS (17)
Accepts plug-in modules for all eight channels. Modules are optional and should be selected by installa¬
tion requirements. NOTE: All modules will function in any of the eight ports.
LOW CUT SWITCH (18)
Provides a 6 dB/octave low frequency roll-off at 60 Hz.
PREAMP OUT (19)
Provides output signal to outboard gear for signal processing. Compressors, limiters, equalizers, etc.,
may be patched into the loop from this point. Signal from output of signal processor should return to
power amp input.
POWER AMP INPUT (20)
When an RCA phono plug is inserted into this input, the connection between the preamp out and the
power amp in is internally disconnected allowing direct access to the power amplifier.
BRIDGE IN/OUT (21)
Provides output signal that is independent of the Master level control, Bass, and Treble controls. It also
may be used as a mixing output point when the similar terminal of another amplifier is connected to this
terminal. A separate tape recording output may be taken from this point without interaction of EQ and
master level control.
PROGRAM IN (22)
Accepts signals from other sources such as another mixer or mixer amplifier. Signal level at this input is
controlled by the Program level control and is fed to the Master output. The Program In may be regarded
as channel "nine" without plug-in module capability. NOTE: This input is muted whenever the Mute 1
mute line is grounded.
